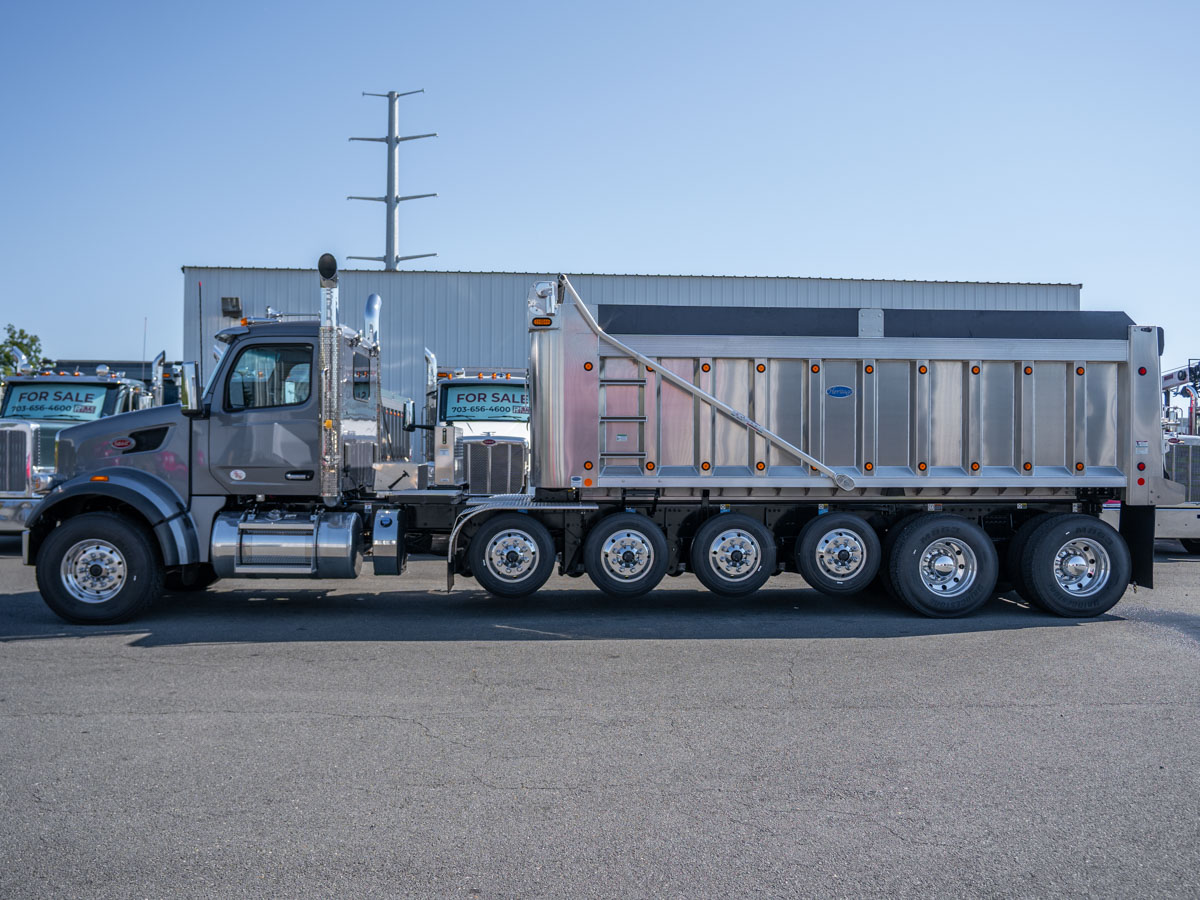

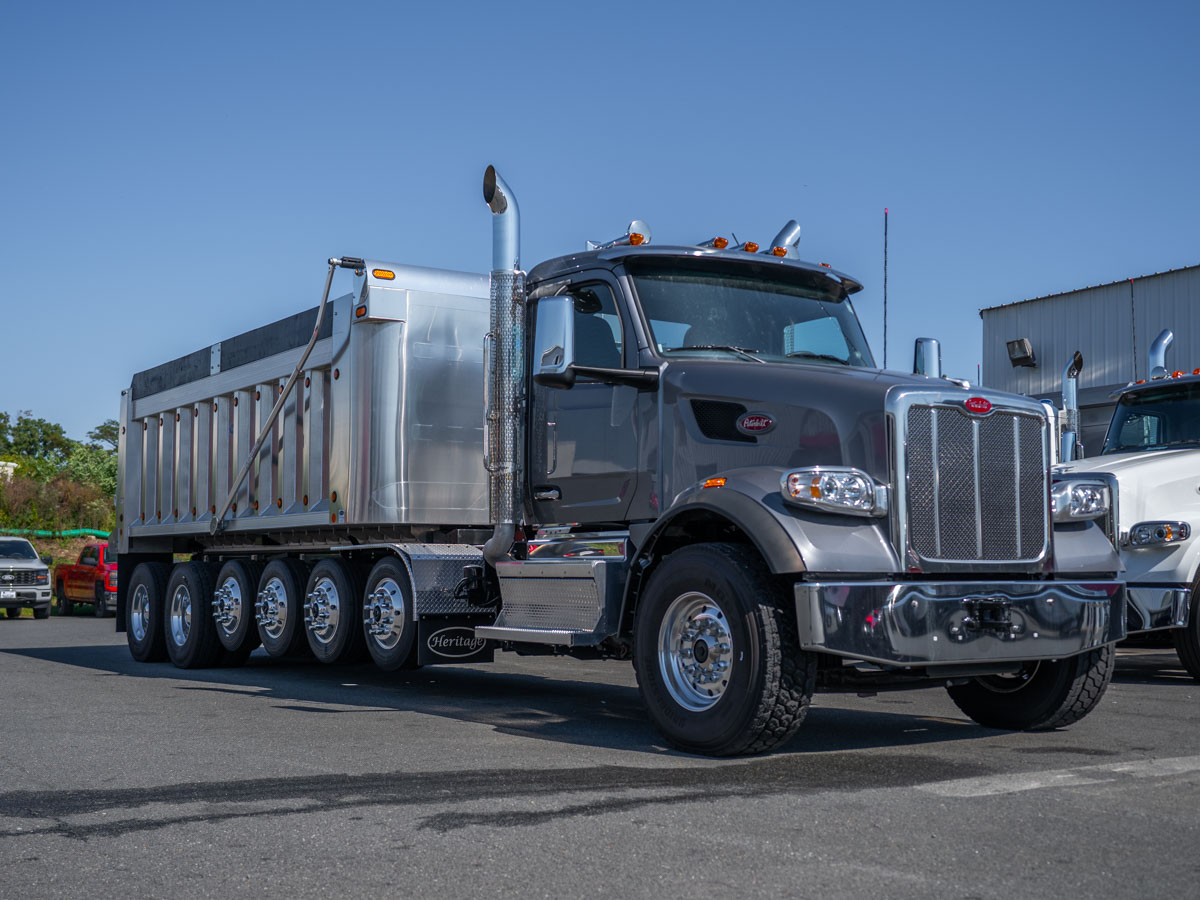

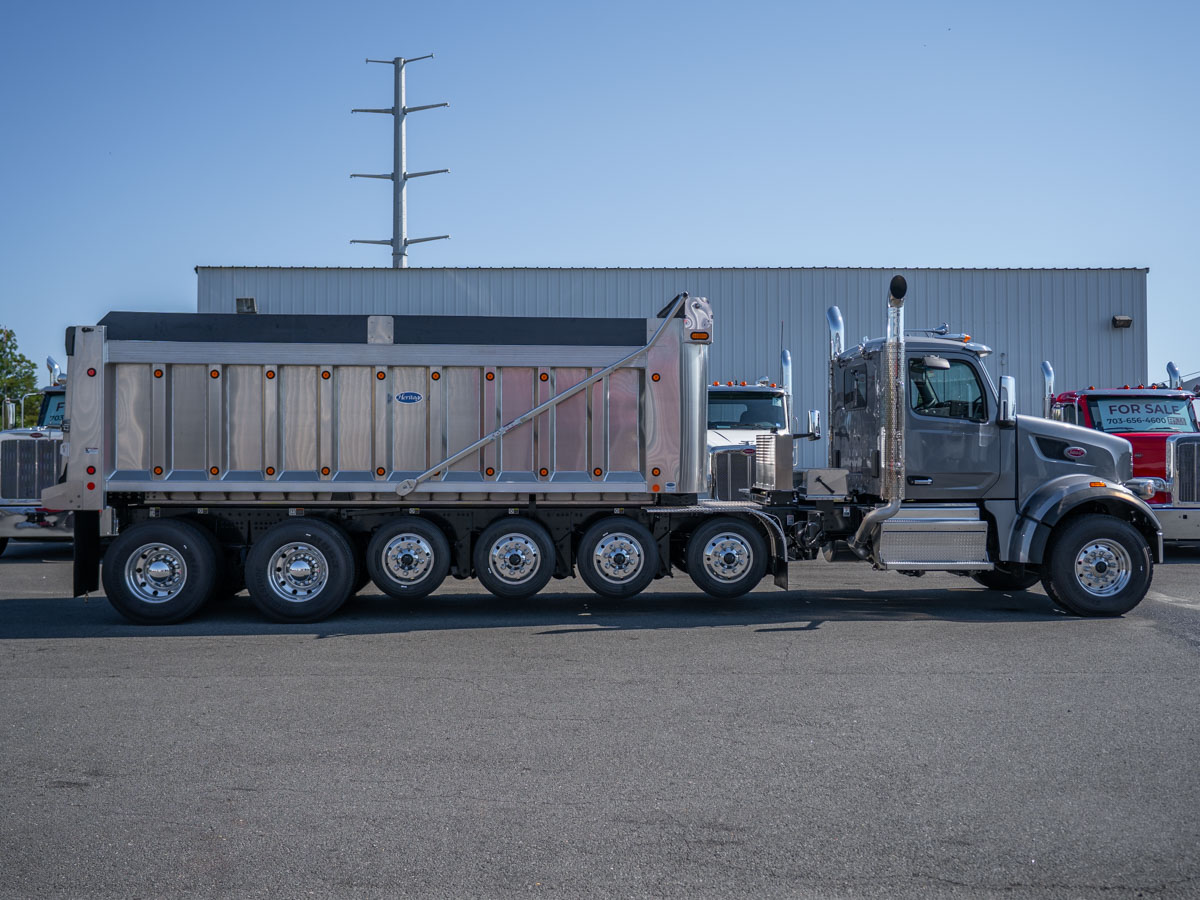

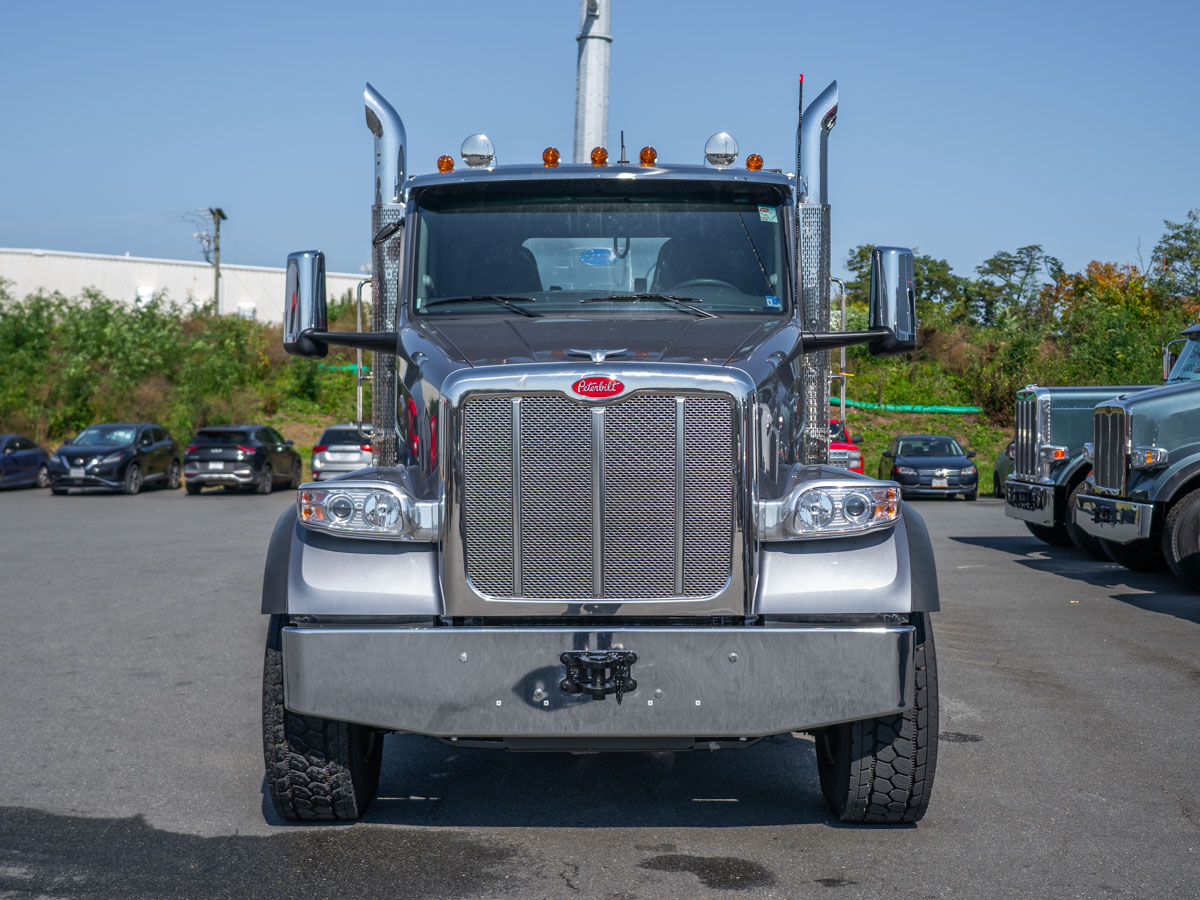

This 2027 Peterbilt 567 conventional day cab is set up as a 7-axle construction material hauler for hauling construction materials on and off the highway. It pairs a 21' Heritage Aluminum Material Hauler body with a heavy-spec chassis that runs four self-steering pusher axles ahead of a tandem drive. The cab, hood, and fenders are finished in Gunmetal metallic paint.

Engine & Drivetrain

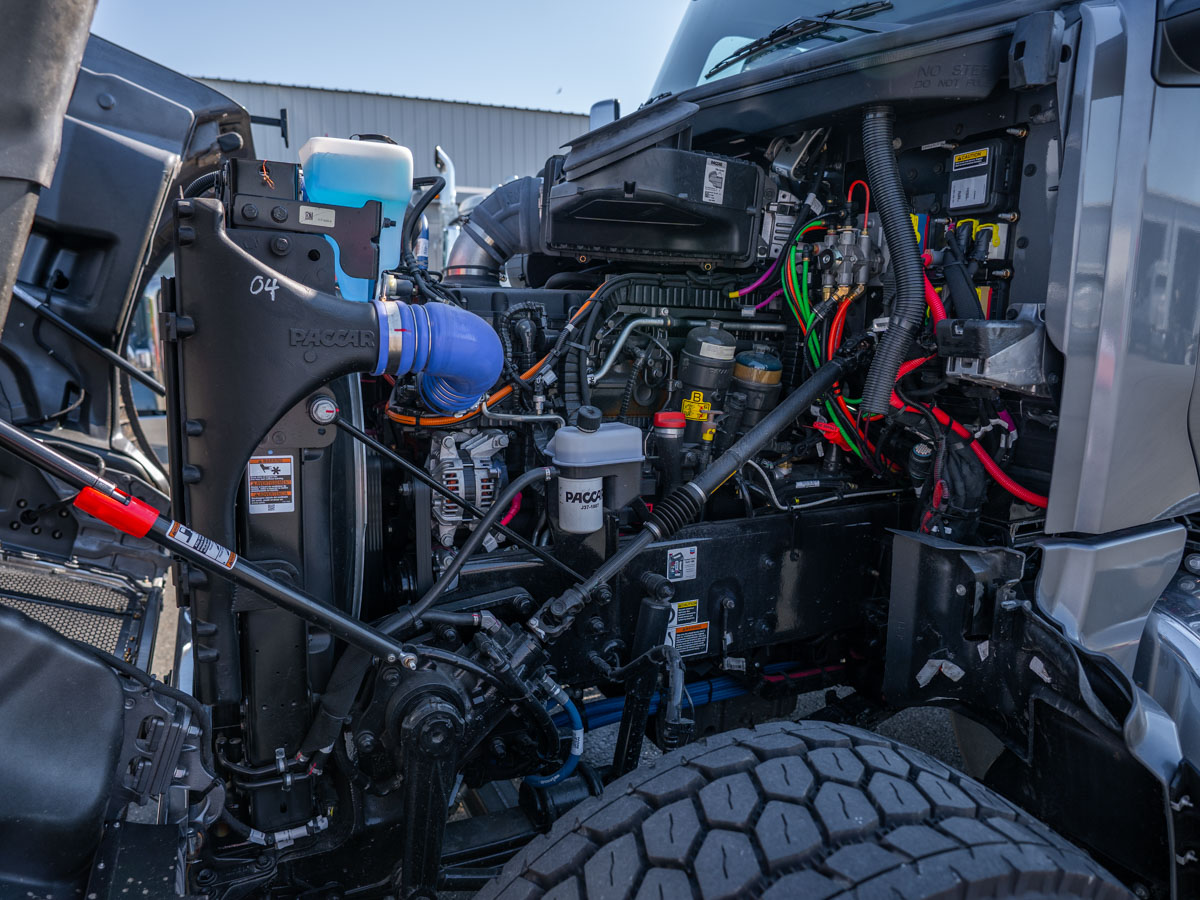

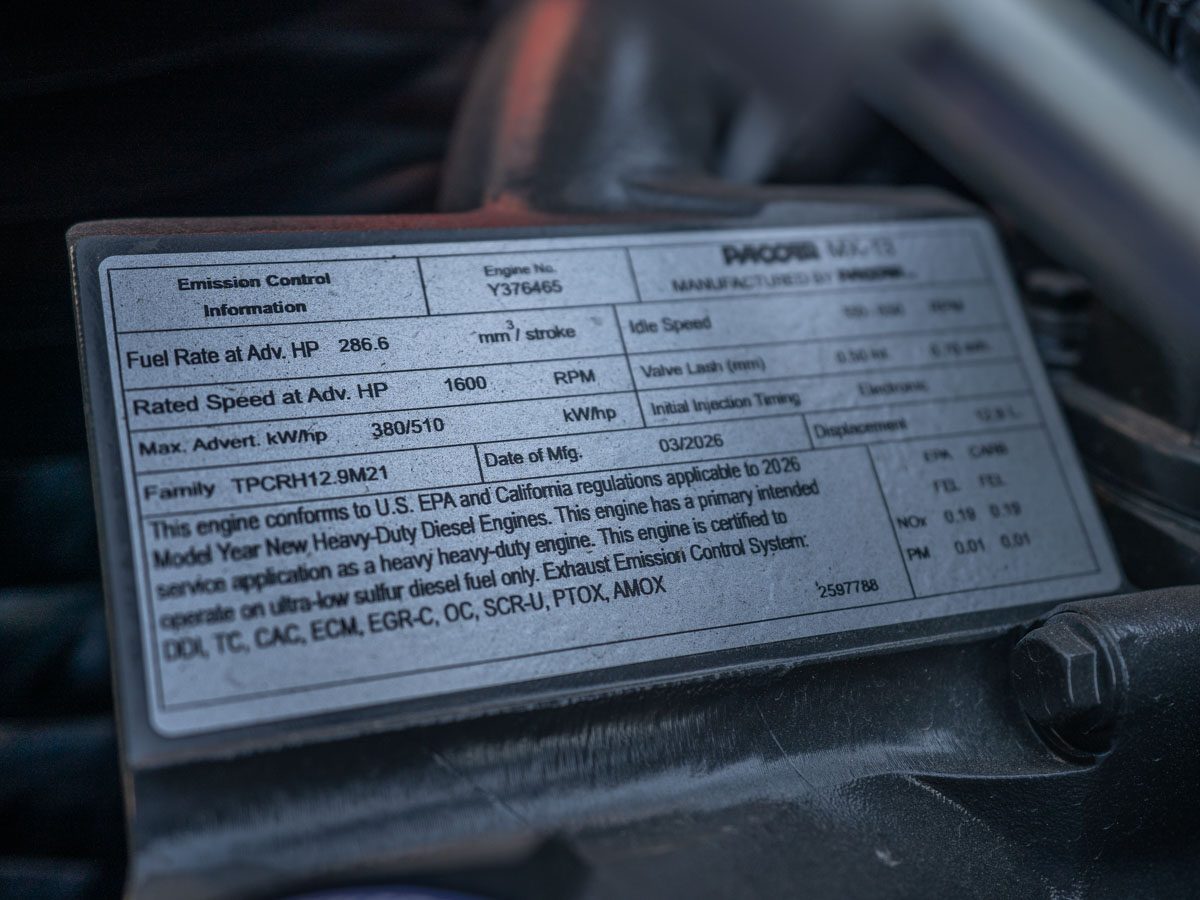

A PACCAR MX-13 Performance engine powers this truck, rated at 510 HP at 1,600 RPM and 1,850 lb-ft of torque at 1,000 RPM, governed at 2,200 RPM. The engine meets 2024 emissions standards and is CARB emission and idling compliant. The powertrain is optimized for performance in vocational applications, with a typical operating speed of 65 MPH. It runs on EMUX electronics architecture and includes engine monitoring protection with derate. A PACCAR compression brake is controlled from the right-hand column. A cab-station PTO mode control and a 12-pin remote PTO/throttle provision in the engine bay are included.

Power goes through an Allison 4500 RDS-P Gen 6 Rugged Duty Series automatic transmission in a 6-speed configuration. The transmission uses a TC-571 torque converter and a dash-mounted push-button shifter. Auto neutral engages with the parking brake, and the transmission also goes to neutral at a stop. The driveline is a Spicer SPL250 Lite with three midship bearings and an SPL170 XL interaxle shaft. A dash-mounted single-acting electric-over-hydraulic PTO control is included. Rear axle ratio is 4.10.

The electrical system includes a PACCAR 160-amp brushed alternator and a PACCAR premium starter. Three PACCAR premium 12V dual-purpose batteries supply 2,190 CCA. There is a cab power disconnect switch beside the driver’s seat and a low voltage disconnect system. A 110–120V immersion block heater is fitted.

Cooling is handled by a high-efficiency cooling system with a 2-speed fan clutch suited to frequent start/stop work. Intake uses dual under-hood self-cleaning pre-cleaners and a firewall-mounted air cleaner. Fuel filtration is a PACCAR fuel/water separator with an extended service interval. Air is supplied by a WABCO 37.4 CFM compressor.

Exhaust uses a dual SOC layout. The single-module DPF/SCR sits right-hand under cab, and a left-hand 36" chrome standpipe is upgraded to 7" chrome-plated steel with a 45-degree cut curved tip.

Chassis & Axles
The frame uses 11-5/8" steel rails at 3/8" thickness on a 348" wheelbase, with rails running to 444". A 10-3/4" x 3/8" full steel inner liner reinforces the rails. The rails are zinc-coated and anti-corrosion treated. Crossmembers are aluminum, with heavy-duty iron front spring brackets and a square end of frame with a steel crossmember. Two Holland TH-10050 tow hooks are mounted at the end of frame. Cab-to-axle measures 261.8" and cab-to-end-of-frame measures 317.5".

The front axle is a PACCAR FX-20 wide-track steer axle rated at 20,000 lbs with a 4" drop. Steering is a Sheppard HD94 dual-gear power steering system with a frame-mounted reservoir and cooler.

The rear axle is a Dana Spicer D46-172 tandem rated at 46,000 lbs. It has heavy-wall drive axles and tandem differential locks with speed interlock. Synthetic lubricant is used in all axles.

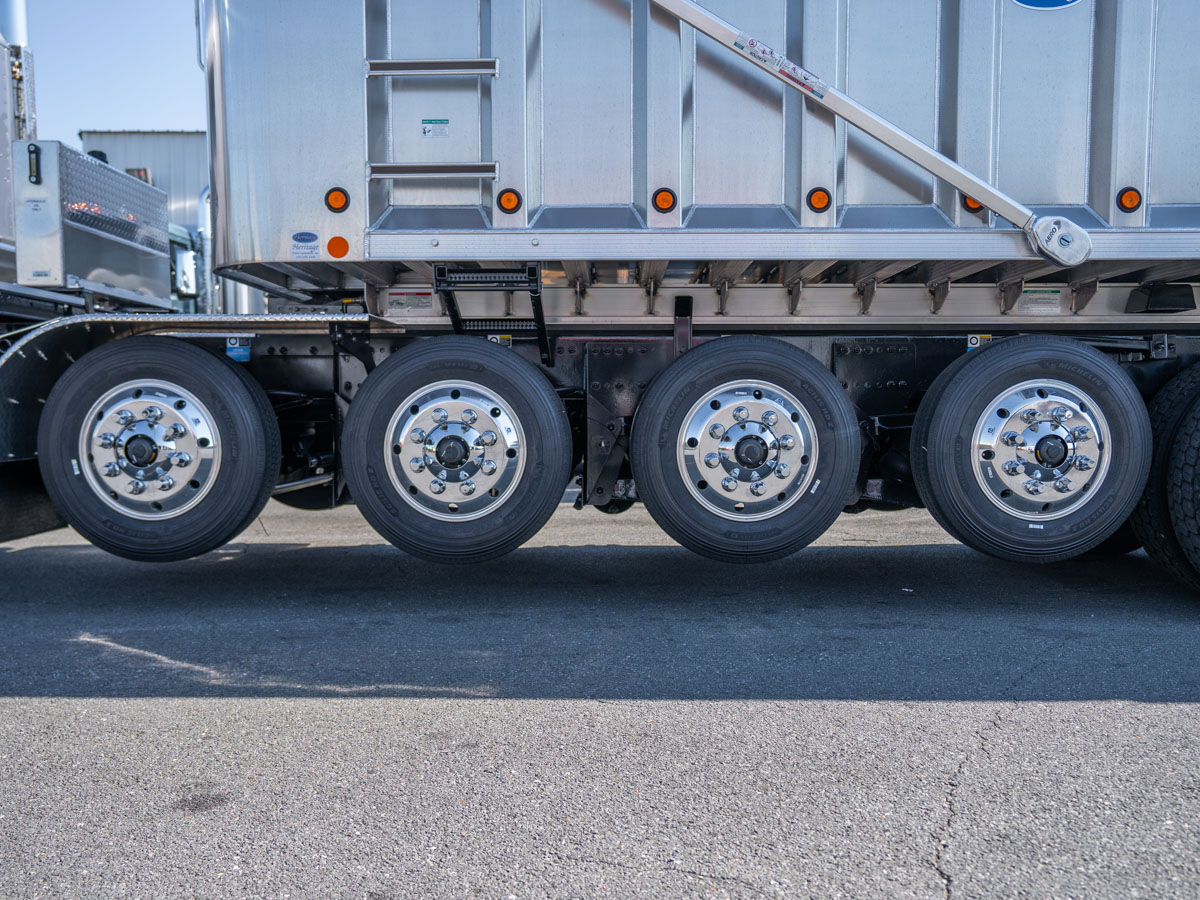

Four Watson-Chalin SL10 self-steering pusher axles are fitted, each rated at 10,000 lbs with dust shields and four additional air tanks. They are spaced 42", 84", 126", and 170" from the forward drive axle. A crossmember-mounted lift axle regulator is controlled by a dash switch and gauge. All four pusher axle pressures display in the digital cluster.

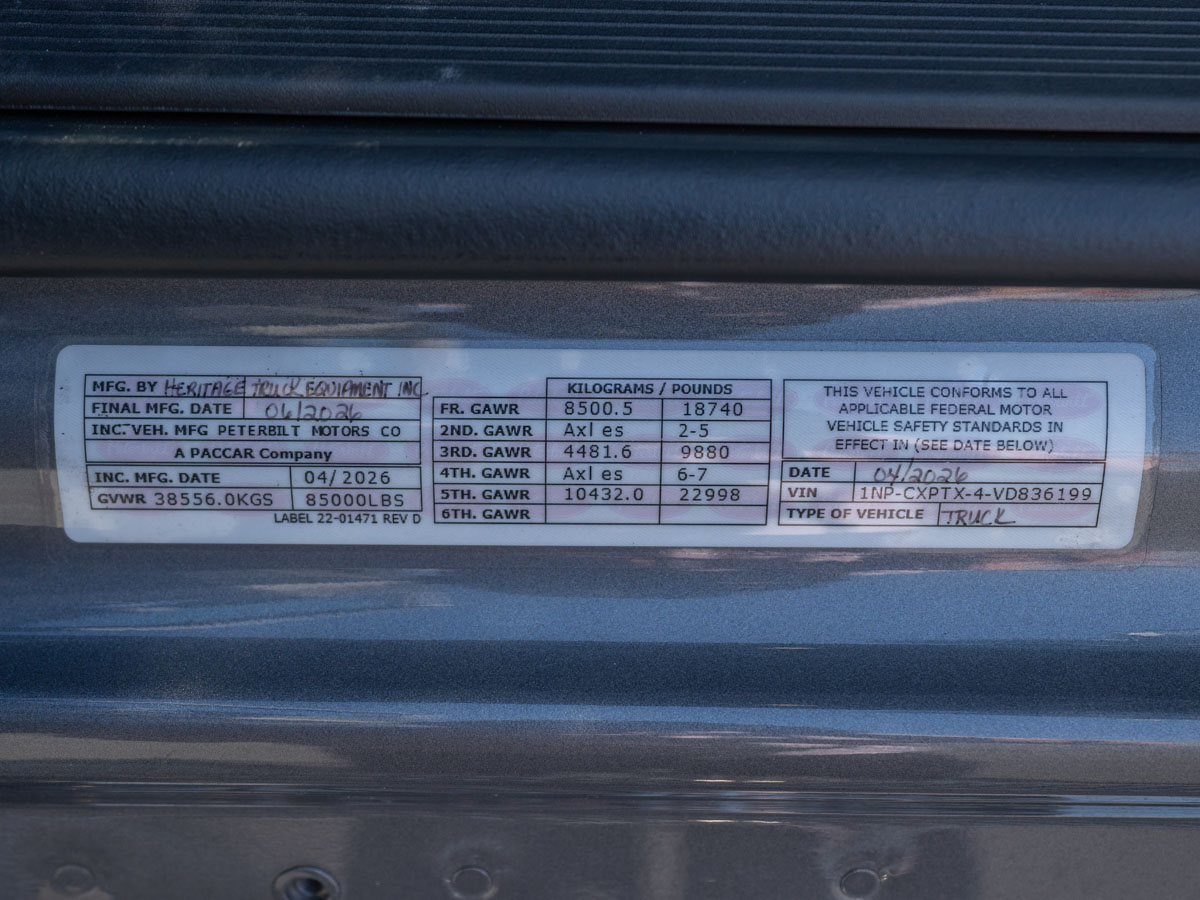

GVWR and GCW are both 85,000 lbs. GAWR is 18,740 lbs front, 9,880 lbs first intermediate, 23,000 lbs second intermediate, and 23,000 lbs rear. Maximum grade rating is 6%.

Air disc brakes are fitted on the steer axle and the tandem drive. These use PHP10 iron Preset+ hubs and severe-service disc rotors. The pusher axles use 8-stud iron hubs with cast drums. The braking system also includes Bendix Smart ATC traction control, 6S6M ABS with an off-road ABS switch, an SBM valve, a pneumatic park brake, and a tire pressure monitoring system.

The air system uses dual Bendix AD-IS air dryers with an EverFlow switching module and coalescing filters. Air tanks are painted steel with pull cords on every tank, and chassis hose is nylon. Body air connections are provided 5' behind the cab.

A 26" polished aluminum 110-gallon fuel tank is mounted left-hand under the cab, with a polished non-slip step and polished straps. The DEF tank sits left-hand behind the cab under a polished stainless cover. A polished aluminum battery box sits above the rails behind the cab. On the right-hand side, an aluminum non-slip cab entry step is mounted on the aftertreatment. Up front, a chromed deep-tapered steel bumper with two tow points and a heavy-duty external tow eye complete the front end.

Suspension
The rear suspension is a Hendrickson HMX EX 460 HAULMAAX rated at 46,000 lbs, with a 54" axle spread and a 70K creep rating. It has dedicated shock absorbers. Up front, 20,000 lb taper leaf springs are paired with Tenneco shocks, greasable spring pins, and 80mm spacer blocks.

Cab & Interior
The cab is a vocational 115" BBC aluminum day cab with a Metton hood. It has a stainless steel crown and grille with tilt assist. The Premier interior is finished in Sterling Gray with a rubber floor and a thermal insulation package. Cab air suspension and Peterbilt keyless entry are standard on this unit.

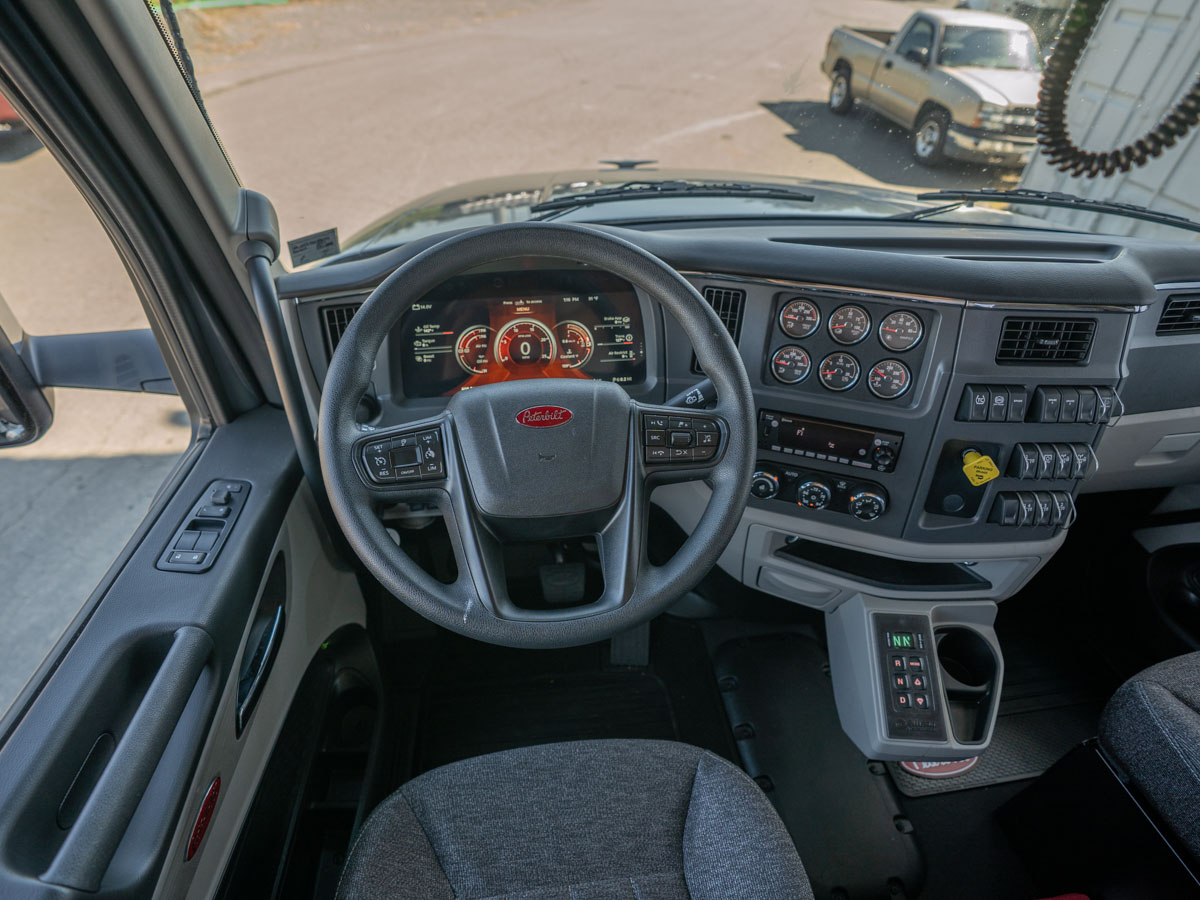

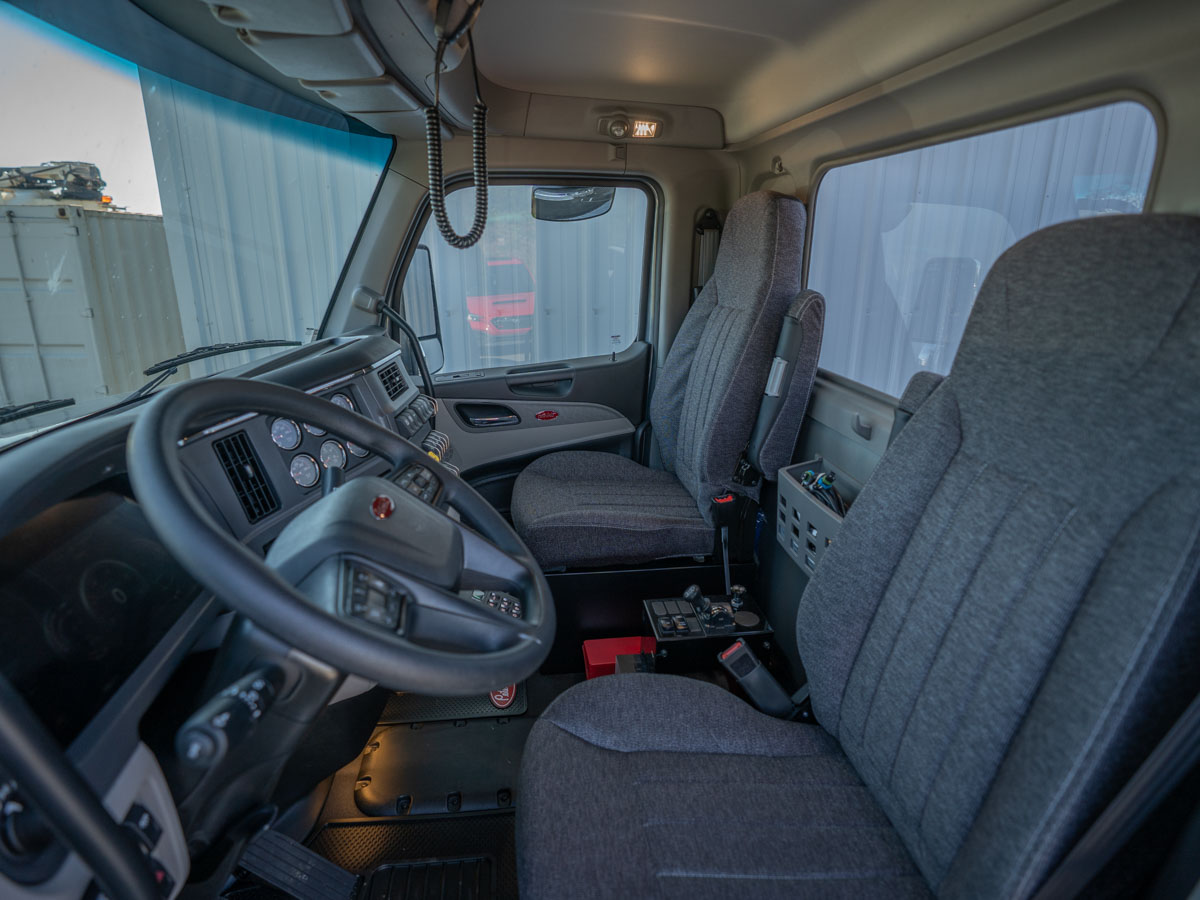

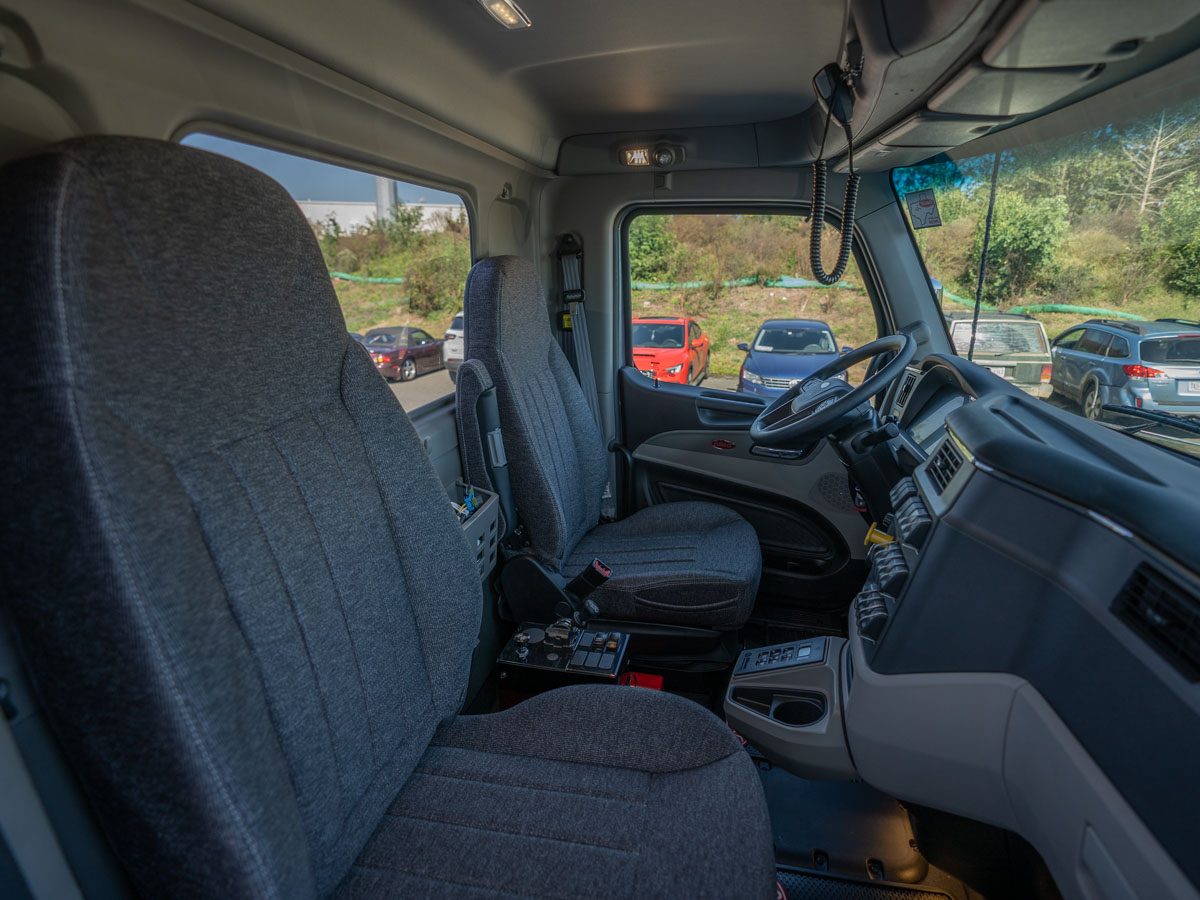

The driver gets a Peterbilt LX premium high-back air-ride seat in Mordura with a right-hand armrest. The passenger has a Peterbilt ST high-back seat in Mordura with a left-hand armrest and a toolbox underneath. The steering wheel is a multi-function wheel with audio and cruise controls on a tilt/telescoping column.

Cab equipment includes power windows and locks, a combination fresh-air heater and A/C, dark window tint, a one-piece curved windshield, and a fixed one-piece rear window. There is a stainless steel outside sunvisor, vanity mirrors, and a rear-wall map pocket. The windshield wipers are intermittent, and a removable bugscreen sits behind the grille. Mirrors are bright-finish Peterbilt aero units that are motorized and heated with integrated convex lenses, plus a look-down mirror over the passenger door. Dual 23" round roof-mounted air horns are fitted.

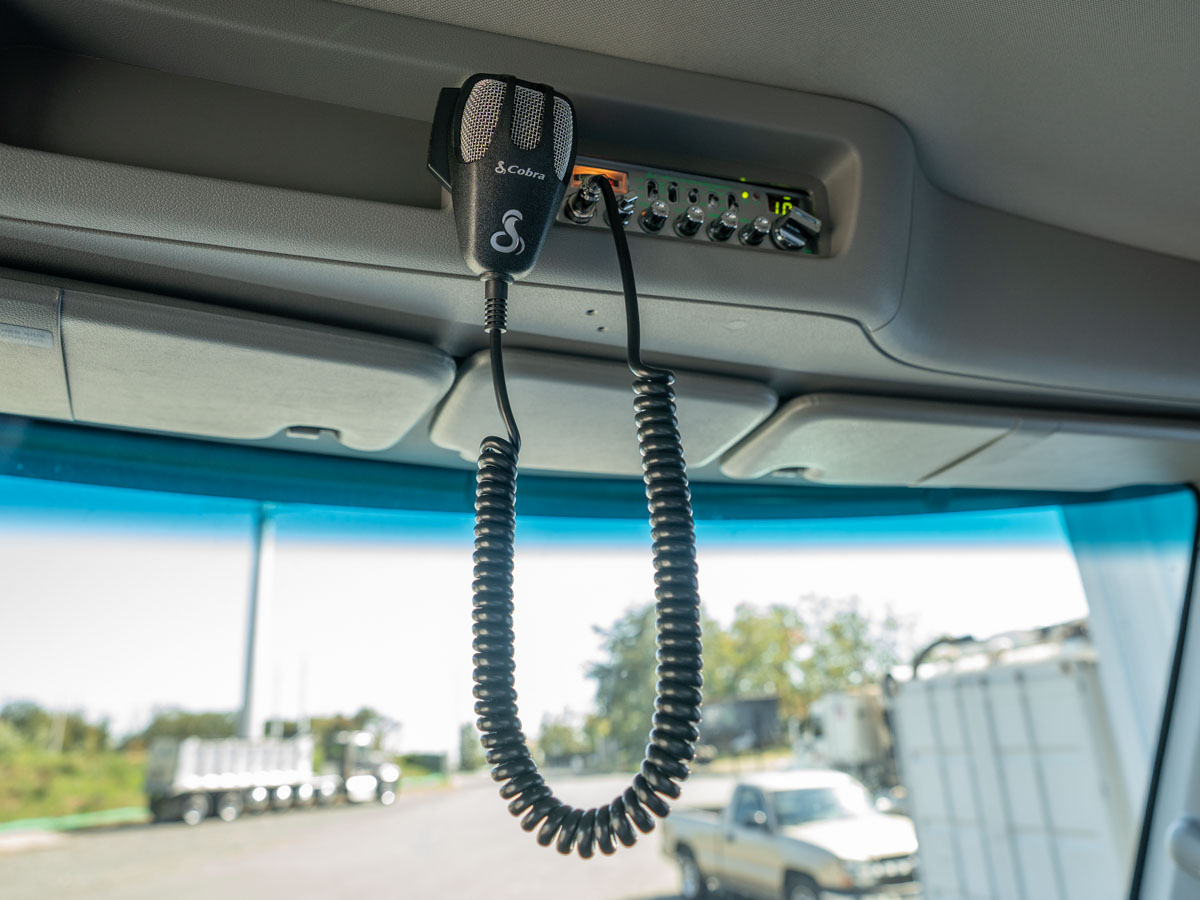

Audio and communications include a ConcertClass AM/FM/WB radio with 3.5mm aux, Bluetooth phone and audio, a USB port, and a four-speaker package. The radio mutes when the truck is in reverse. A header-mounted Cobra 29 CB radio uses a cowl-mounted antenna. The truck is also equipped with global telematics hardware and a 5-year SmartLINQ remote diagnostics/OTA subscription.

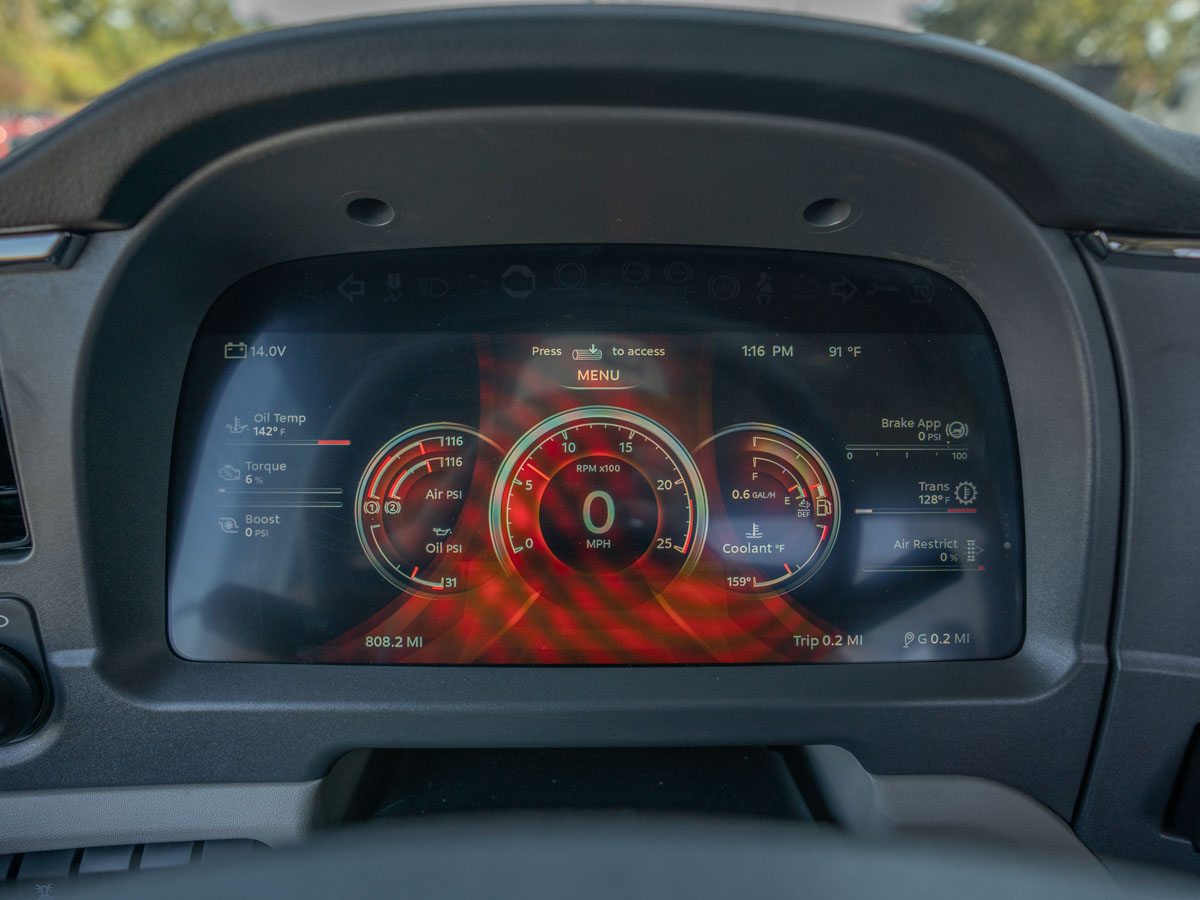

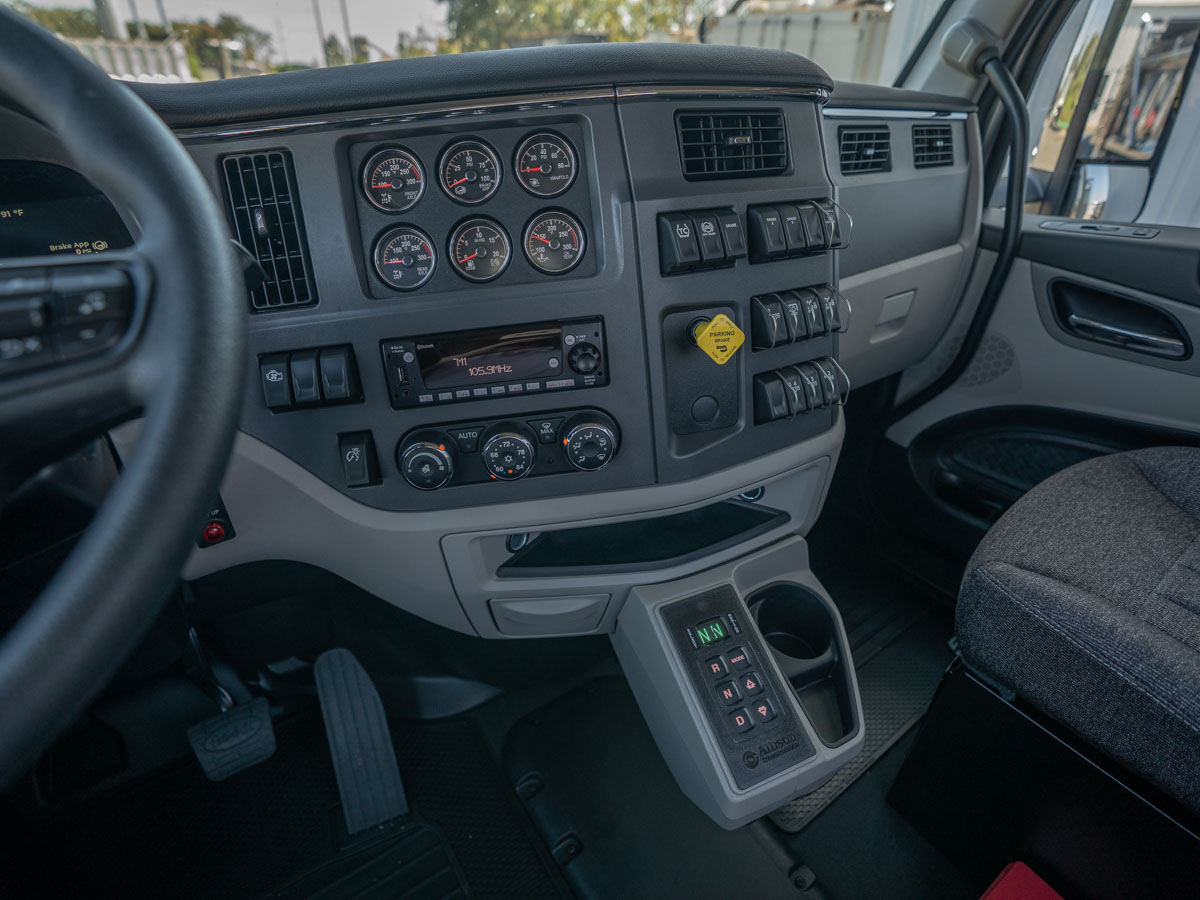

The main instrument panel is a 15" digital cluster. It displays transmission oil temperature, air filter restriction, engine percent torque, and pusher axle pressures. Additional 52mm backlit gauges with bright bezels show front and rear drive axle oil temperature, engine oil temperature, fuel filter restriction, tractor brake application, and manifold pressure. Three additional dash switches are wired and ready for use.

Lighting includes projector-module headlights with fender-mounted turn signals and five LED bullet marker lights. There are two bracket-mounted load lights, self-canceling turn signals, and auxiliary marker and beacon/strobe switch wiring. Other cab features include 4.5" rubber fender lips, a textured exterior grab handle, a 107 dB backup alarm, auto-reset circuit protection, a fire extinguisher, and a triangle reflector kit. The cab, hood, roof, and fenders are painted in Axalta two-stage Gunmetal metallic, and the frame is black.

Body & Equipment

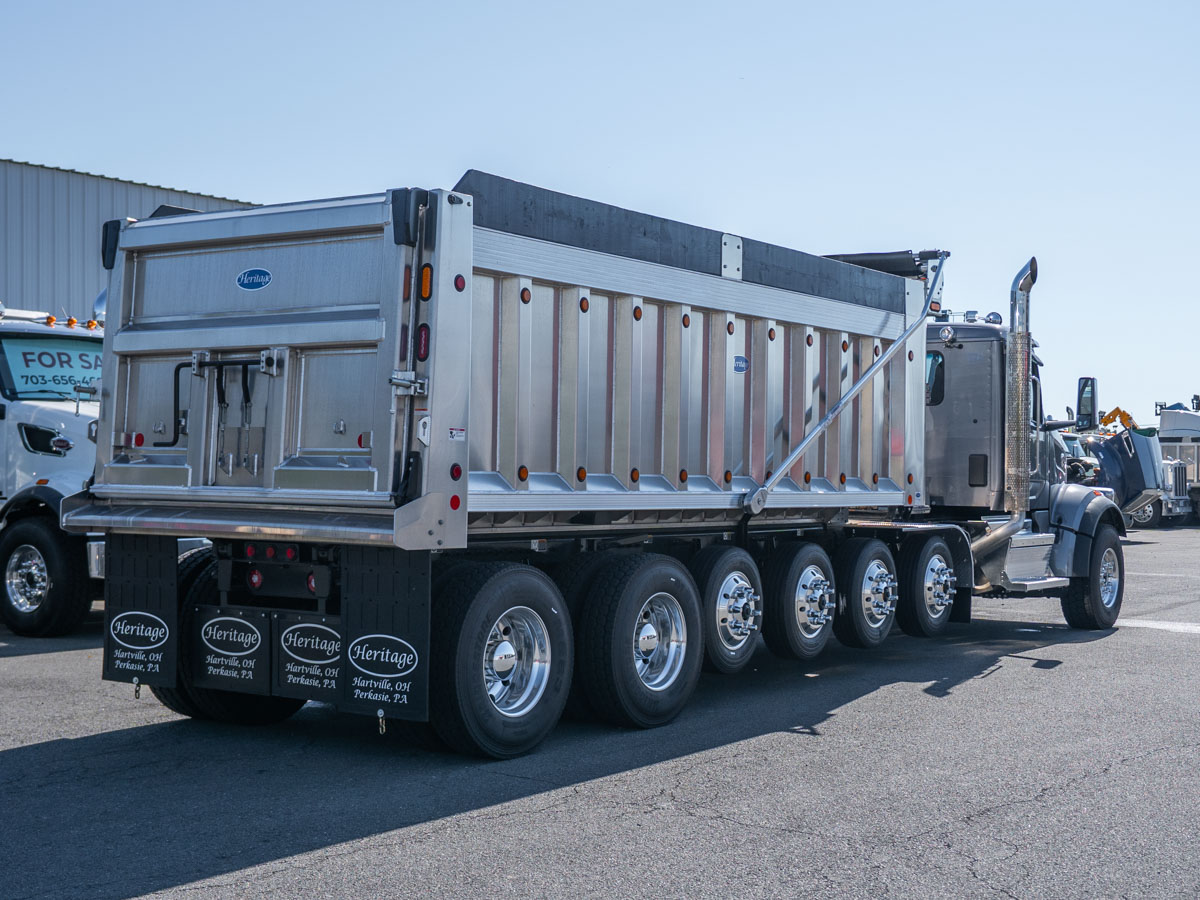

The body is a 21' Heritage Aluminum Material Hauler, 96" wide, built from enhanced-finish aluminum.

The sides stand 54" with an added 12" board. Sides, side posts, and dirt shedders are all 3/16" enhanced finish under a 9" extruded top rail. A 2" x 12" sideboard runs on each side, painted to match the cab.

The floor is 1/4" up front and 3/8" across the last 120". It rides on 6" I-beam longsills with rubber cushions and 3-1/2" extruded boxed crossmembers on 12" centers. The bottom rail has radius cleanouts.

The bulkhead is a 3/16" radius design with a man door. Its top is squared off so the tarp mounts flush.

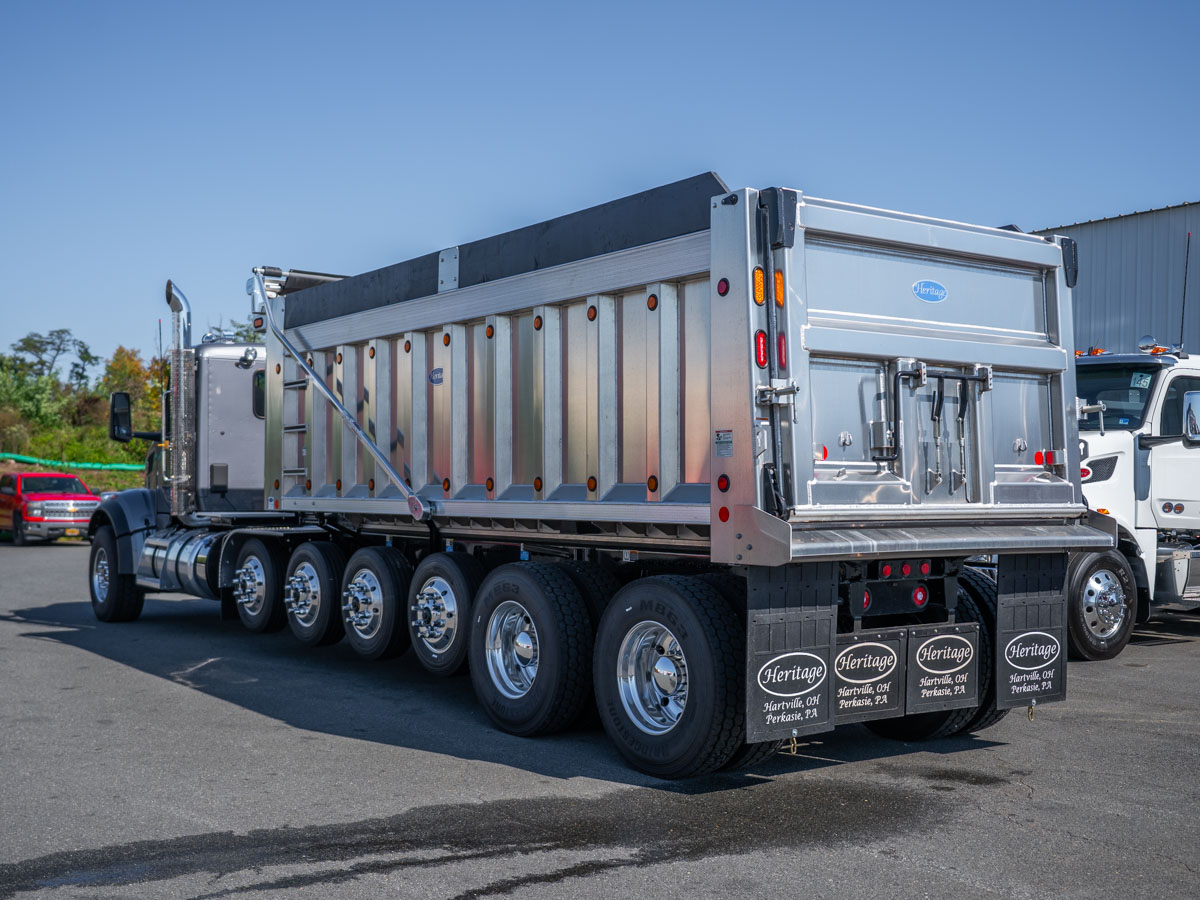

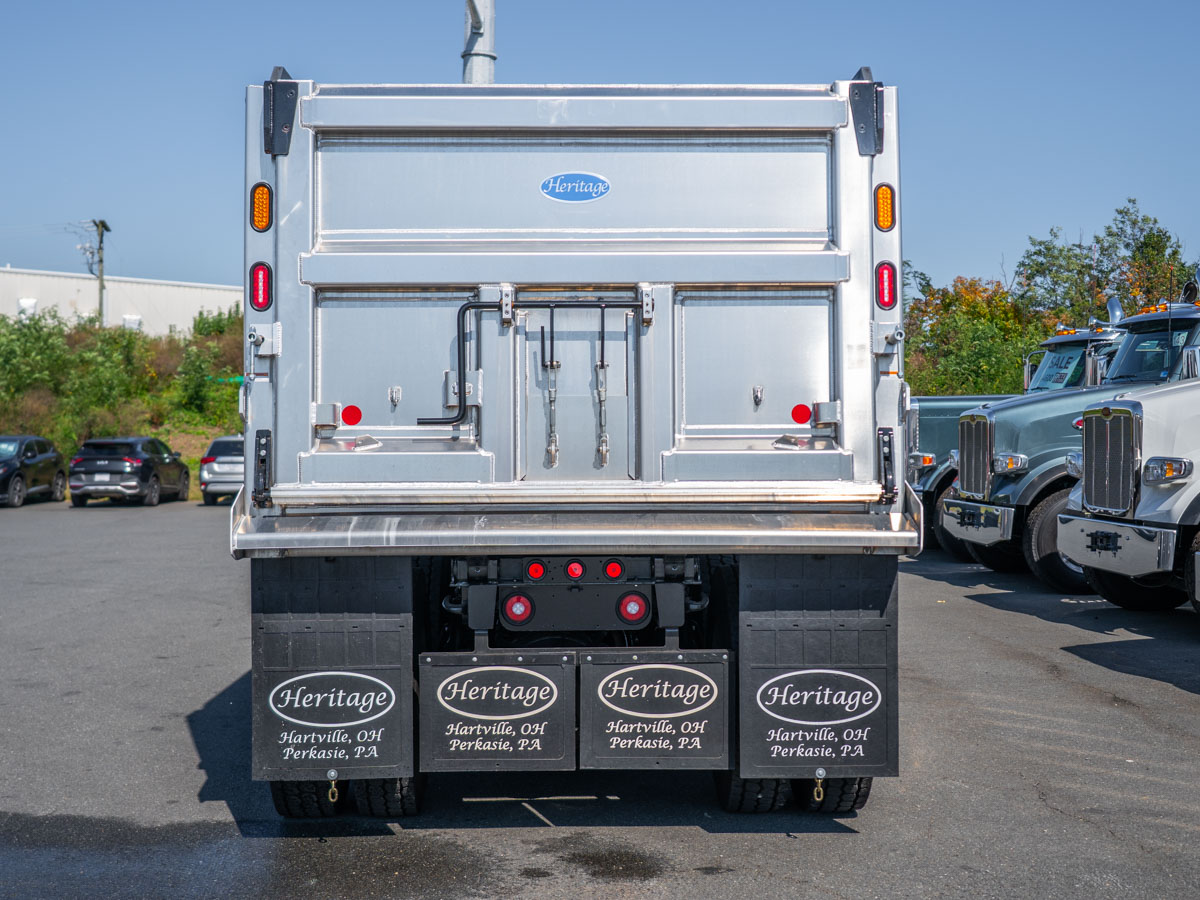

The 60" tailgate is 1/4" material with a 3" slope. It has two panels with horizontal bracing, an overslung top hinge, tailgate chains, and air controls. A center coal door and salt locks on each side are also fitted.

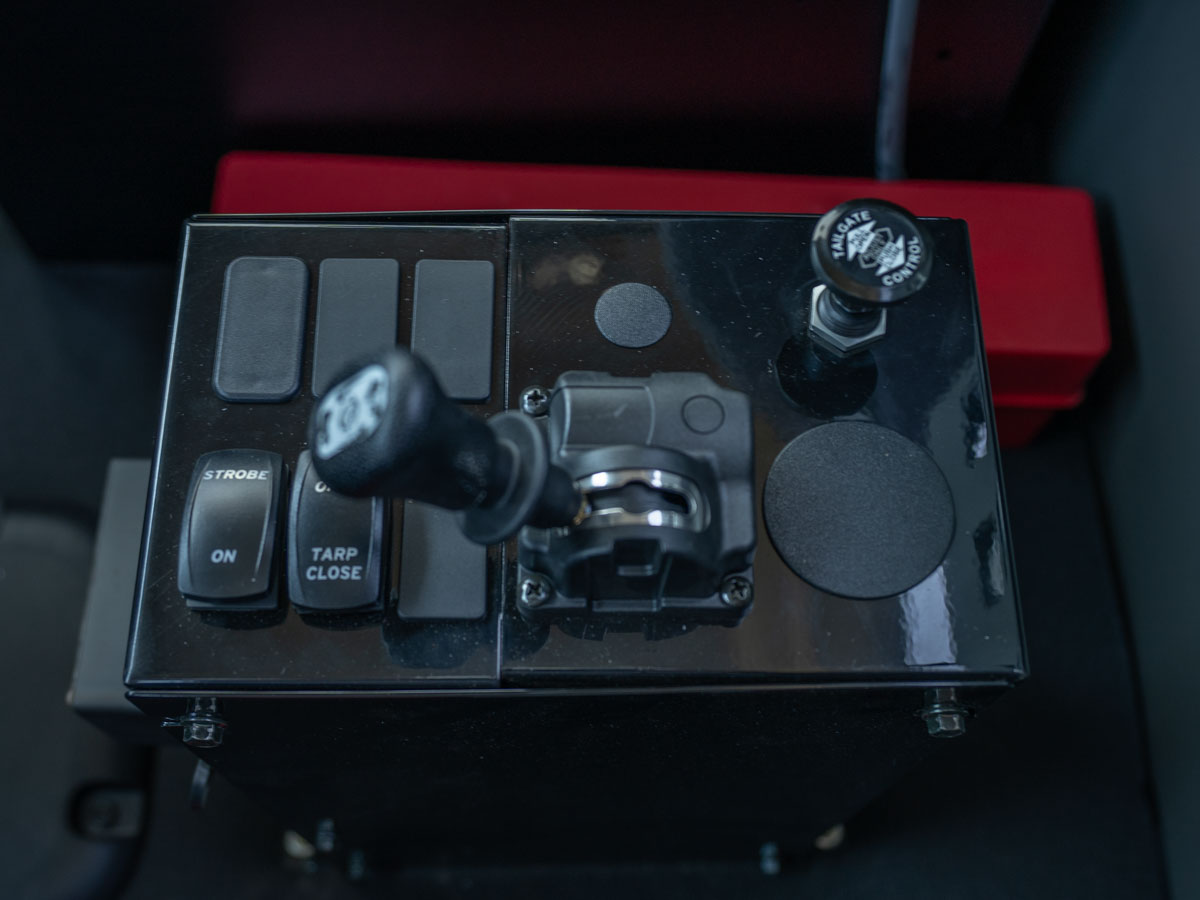

Hydraulics include a pin-to-pin telescopic front hoist, a hot-shift PTO for the Allison automatic, and a direct-mount pump with a shifter valve. The pump runs on feathering-valve air control and has a pump kickout switch. A between-the-seats tower holds the body, strobe, and tarp controls. A 35-gallon upright aluminum hydraulic tank sits behind the cab. The 3-line system has shutoff valves, and PTO-engaged and body-up indicator lights are in the dash.

The body carries an LED light package. Combination stop/turn/tail lights are set in the rear posts, and marker lights sit at the top and bottom of every post. Two front strobes are mounted at the tarp wind screen, and there is a strobe in each rear post. At the rear of the chassis, round combination lights are mounted in a plate with an ID cluster on the hinge.

The tarp is an Aero electric arm flip system with asphalt-rated material and a wind screen mounted flush with the front of the body.

Additional equipment includes a driver’s-side front pull-out ladder below the bottom rail, front inside steps, and a front-mounted shovel holder. There are Heritage full-width rear mud flaps, an 8" bolt-on rear apron, and aluminum diamond plate half fenders. An aluminum diamond plate deck runs between the tank and body, with an access step to reach the man door. A body prop and backup alarm are also included.

Tires & Wheels

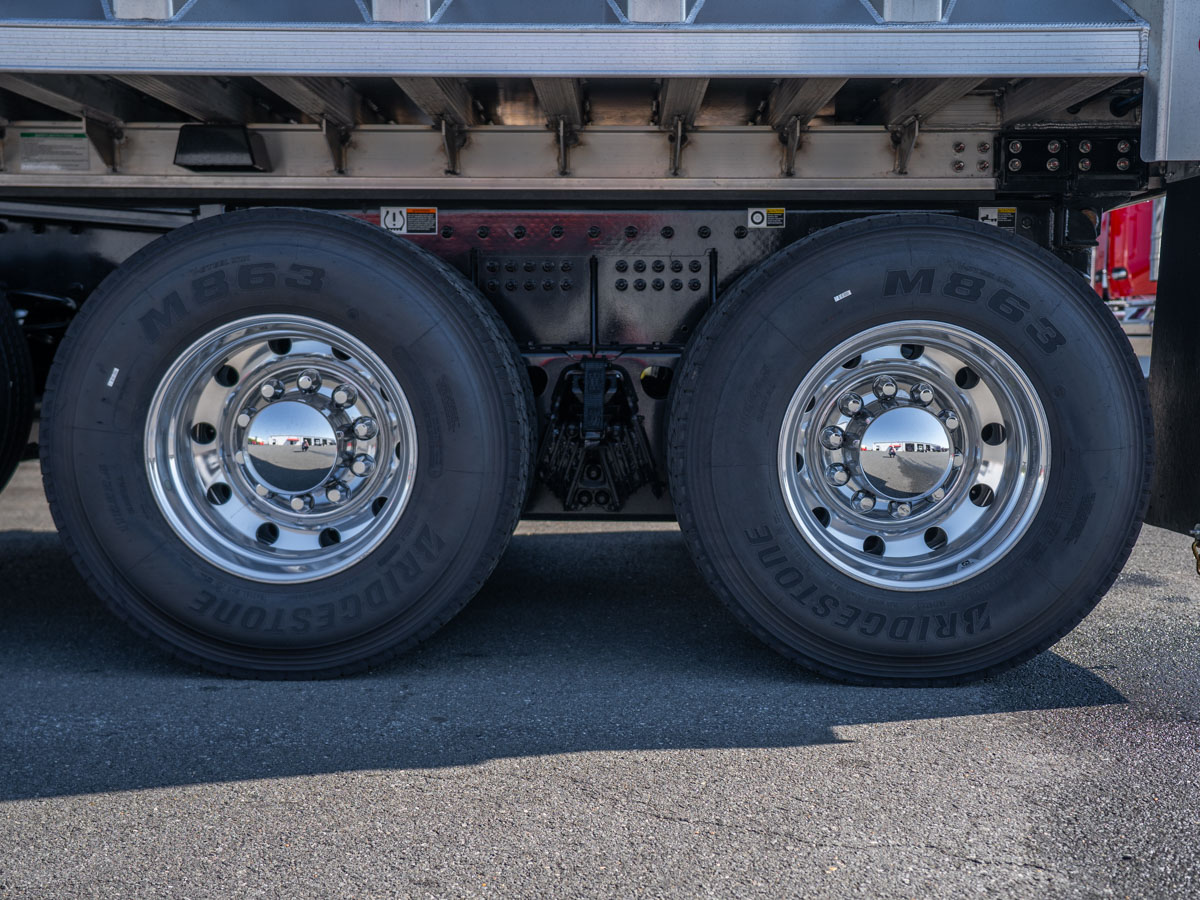

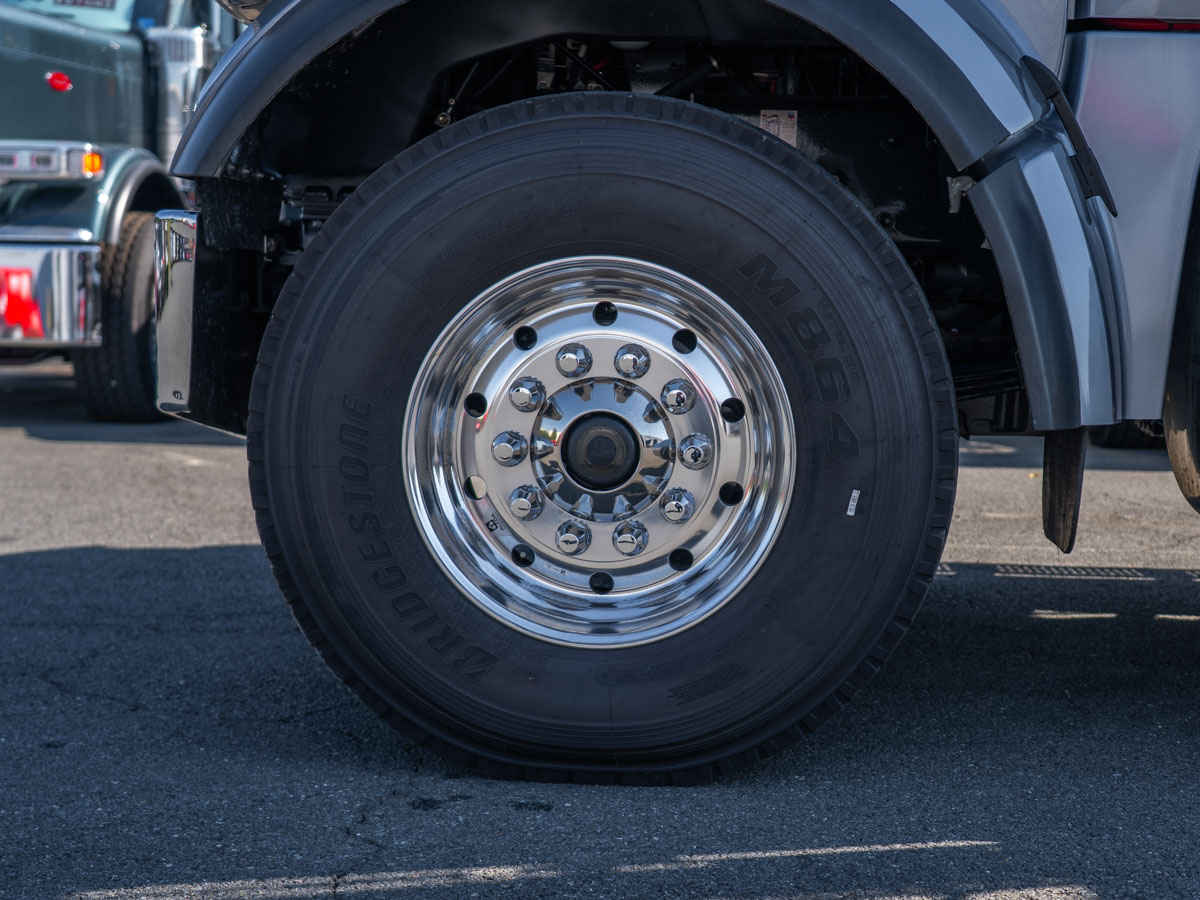

The steer axle runs 385/65R22.5 M864 18-ply tires on Alcoa 22.5" x 12.25" high-polish aluminum wheels with a 2.75" inset. The tandem drive runs eight 11R22.5 M863 16-ply tires on Alcoa 22.5" x 8.25" high-polish severe-service aluminum wheels. All of these steer and drive wheels have a mirror-polished, Dura-Bright outer surface. The four pusher axles run eight 245/70R19.5 Agilis HD Z 16-ply tires on Alcoa 19.5" x 7.5" high-polish aluminum wheels.

Warranty & Protection
This truck is backed by Peterbilt Class 8 standard coverage of 1 year/100,000 miles (160,000 km). The engine carries PACCAR MX standard coverage of 2 years/250,000 miles (400,000 km)/6,250 hours. An emissions warranty of 5 years/100,000 miles is also included.
