Overview

Overview

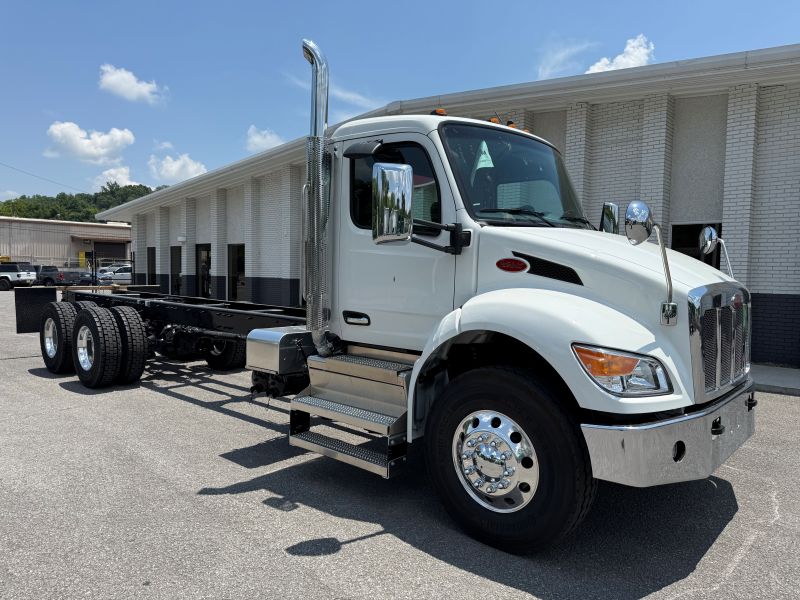

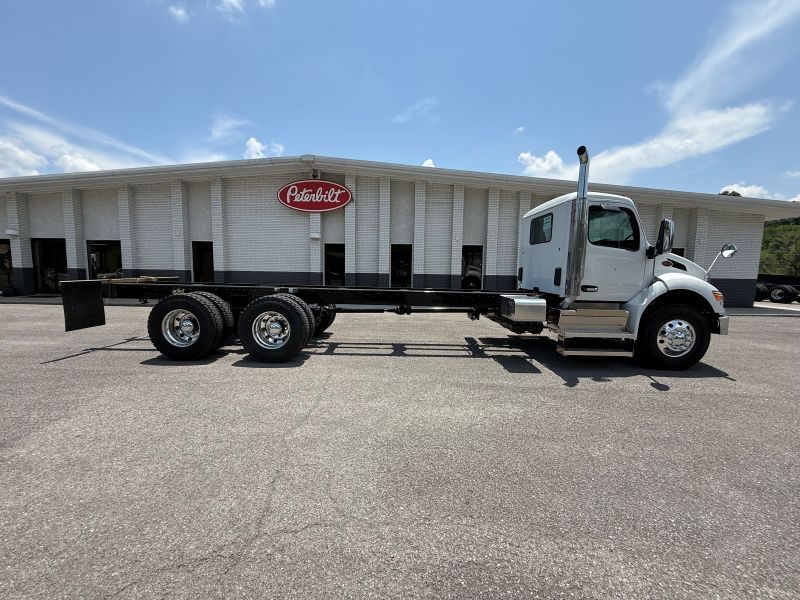

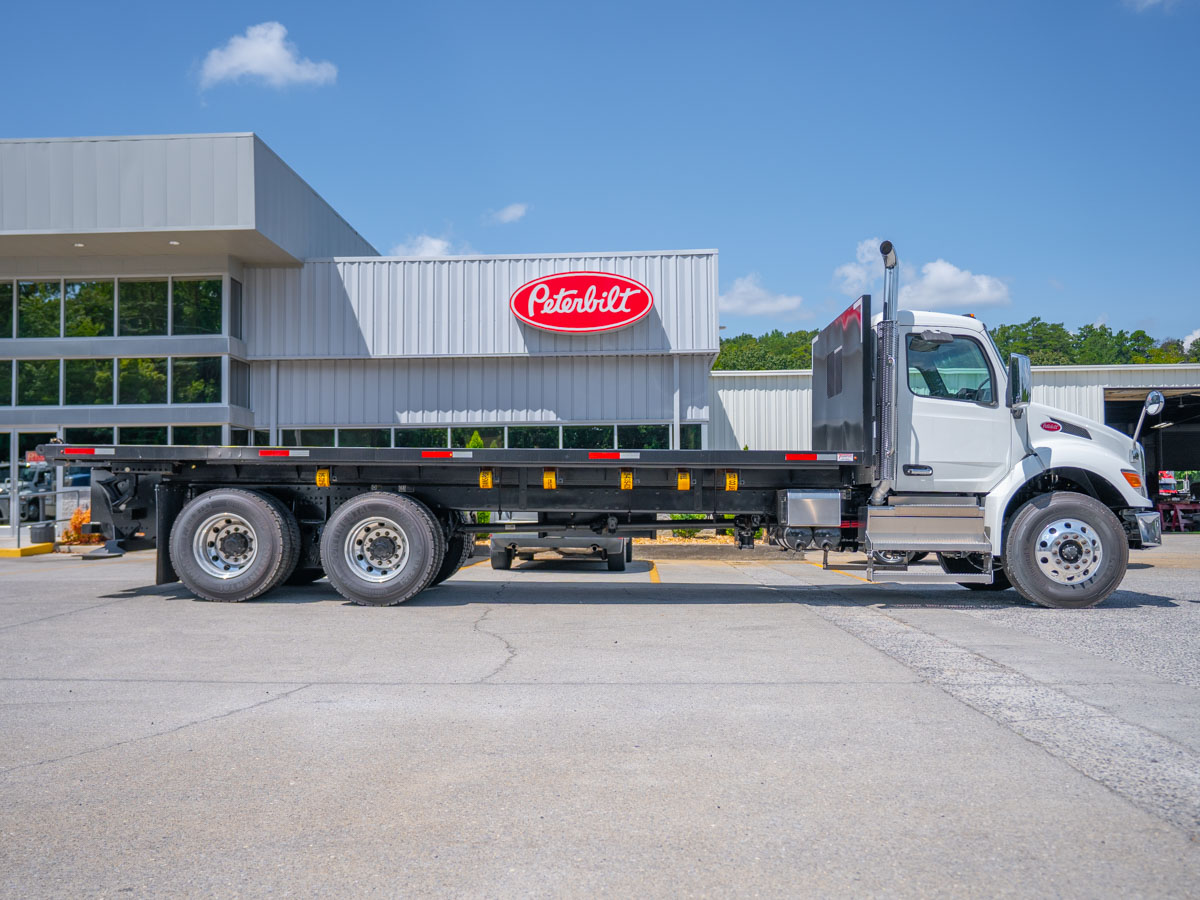

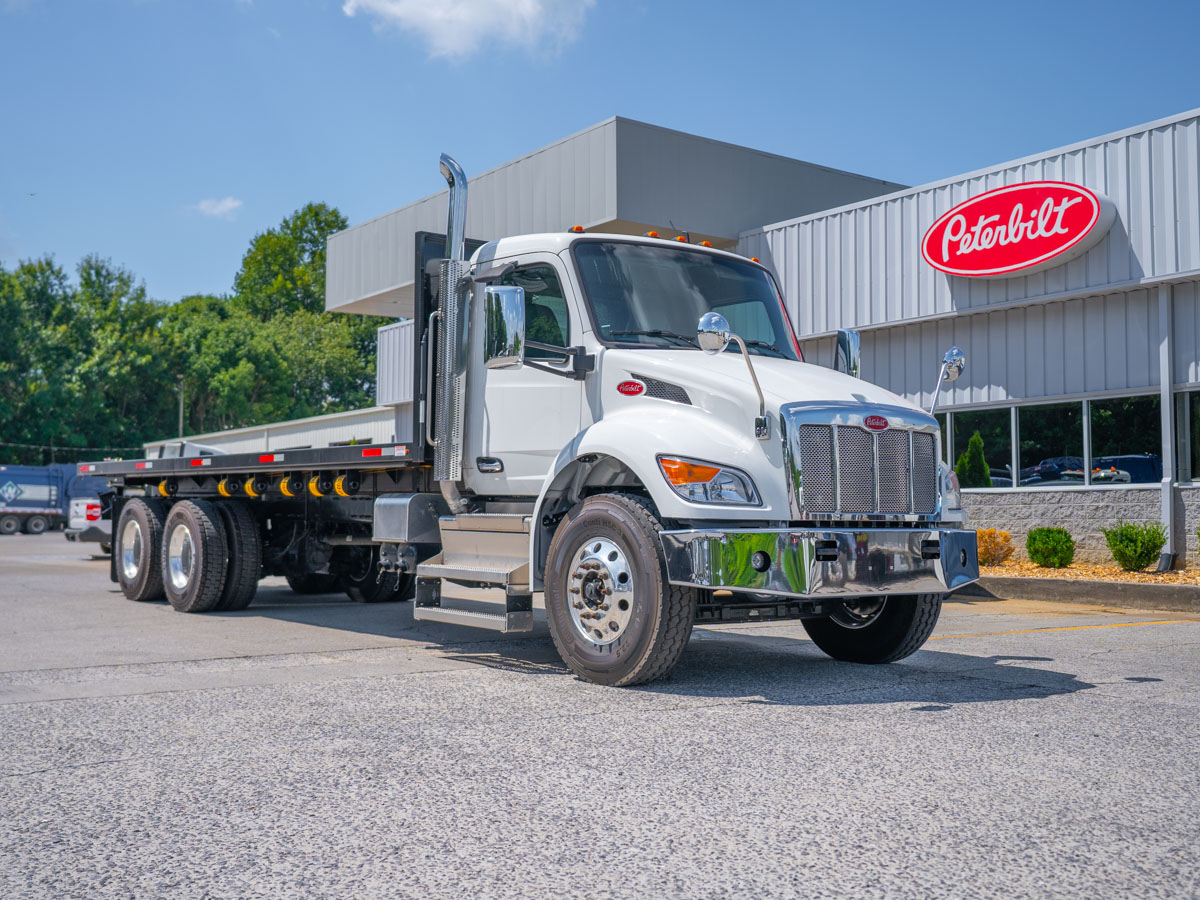

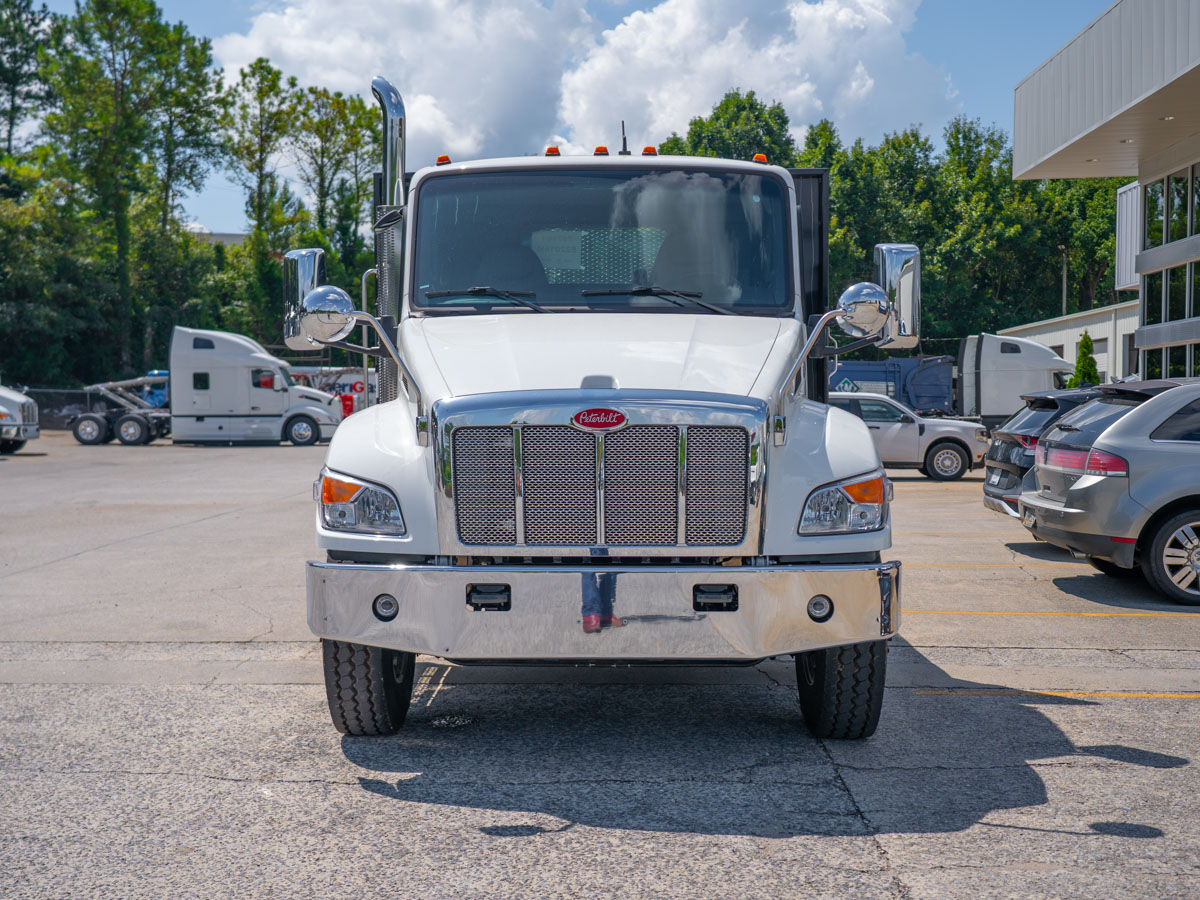

This is a 2025 Peterbilt Model 548 Medium Duty flatbed truck (VIN 2NP8LJ9X6TM797161), fitted with a TEC steel platform flatbed body (Body #8-4525-24) built for other-commodity hauling in city delivery service. The chassis is finished in white (cab, hood, fenders, roof) over a black frame, rides on a 274-inch wheelbase, and carries a GVWR of 54,600 lbs with a 14,600-lb front axle load and 40,000-lb rear axle load.

Engine & Drivetrain

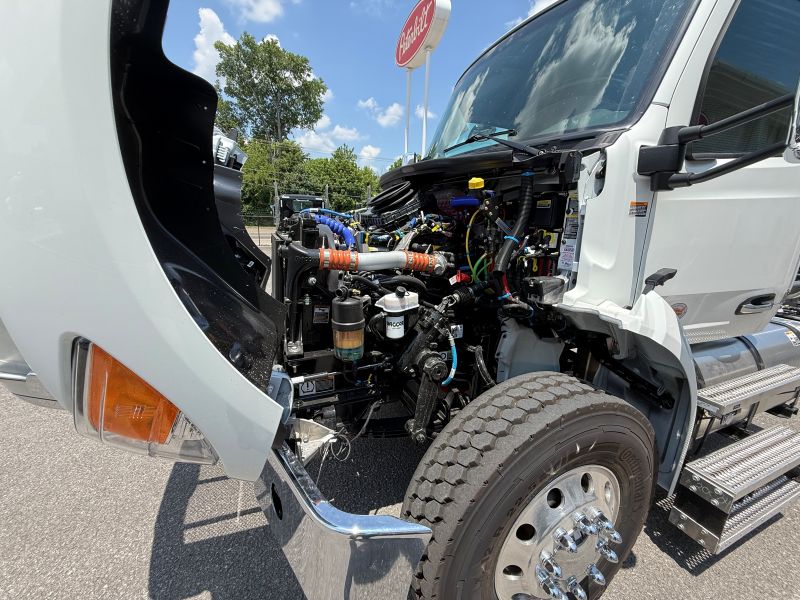

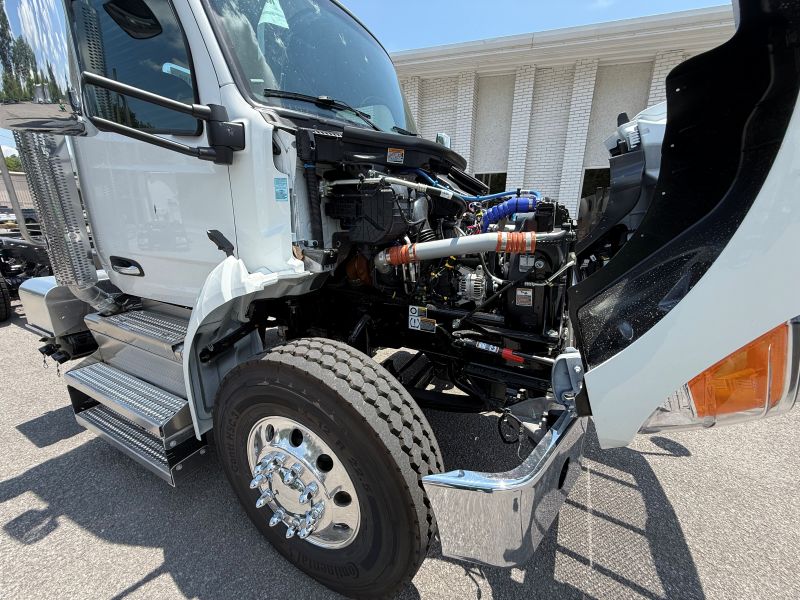

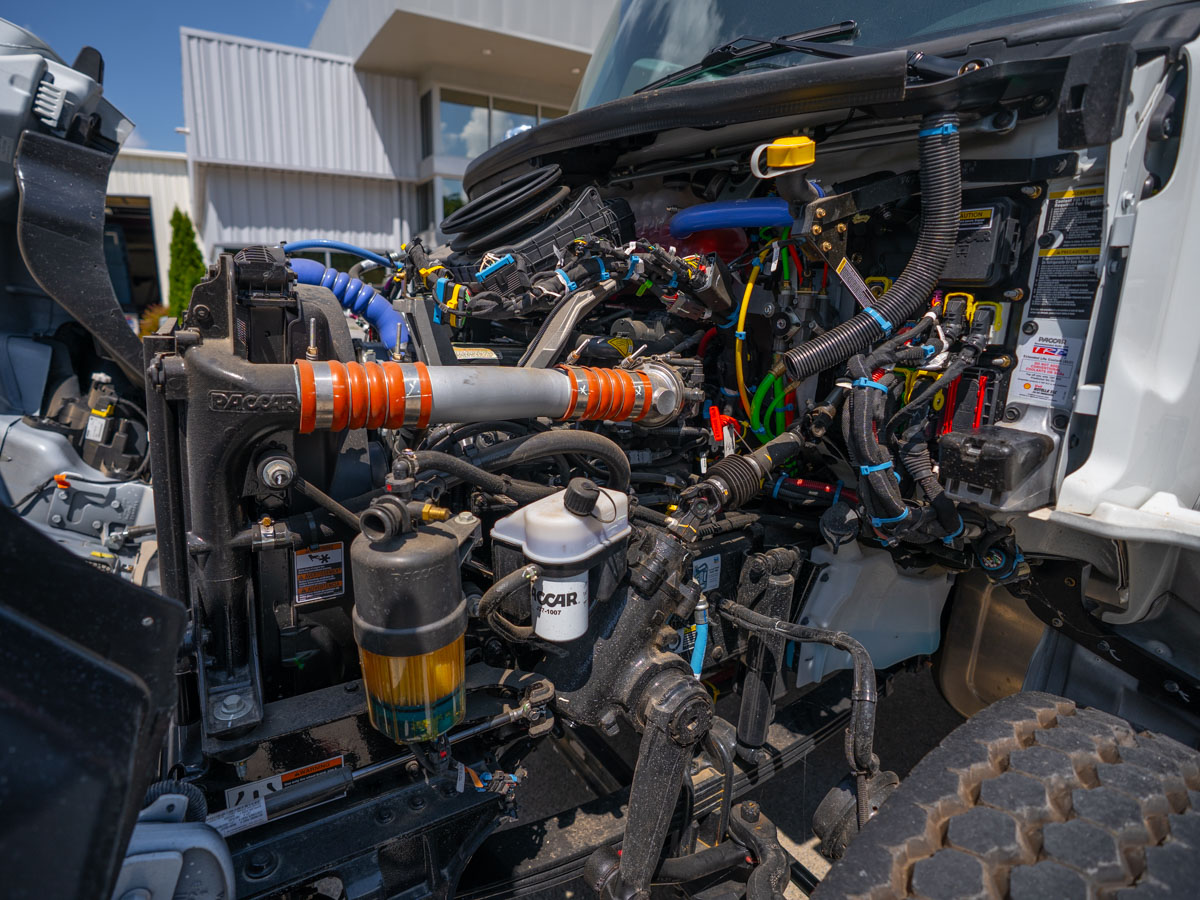

This truck is powered by a PACCAR PX-9 engine rated at 350 HP at 2,000 RPM, governed at 2,200 RPM, and producing 1,050 lb-ft of torque at 1,200 RPM (Productivity rating, 2024-series emissions, Model Year 2025 engine). It runs PACCAR's EMUX electronics architecture, with typical operating speed set at 65 MPH and the powertrain optimized for balanced, frequent start/stop duty cycles. Supporting components include a PACCAR 160-amp brushed alternator, two PACCAR premium 12V starting batteries (2,000 CCA), a PACCAR 12V starter, and a low-voltage disconnect system. Cold-weather and service features include an immersion-type block heater (110-120V), a Horton on/off fan clutch, an 18.7 CFM air compressor, a VGT exhaust brake, a high-efficiency cooling system, a single engine-mounted air cleaner, and a PACCAR fuel/water separator with a 12V heated fuel filter. Exhaust routes through a single right-hand DPF/SCR module under the cab, with a 36-inch chrome standpipe finished in clear coat. Power reaches the ground through an Allison 3000 RDS-P automatic transmission (Gen 6, Rugged Duty Series) in a 6-speed close-ratio configuration with neutral-at-stop and a dash-mounted push-button shifter, backed by a 1710 HD driveline with two midship bearings and a 1710 interaxle driveline for the tandem rear axles. PTO provisions include a Chelsea-style opening, a dash-mounted single-acting electric-over-hydraulic PTO control, LH-mounted trans PTO provisions, and a park brake interlock.

Chassis & Axles

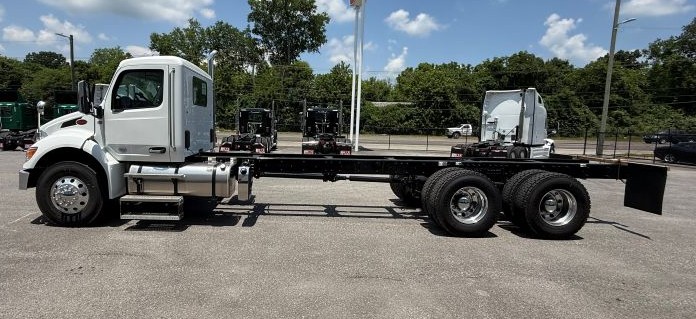

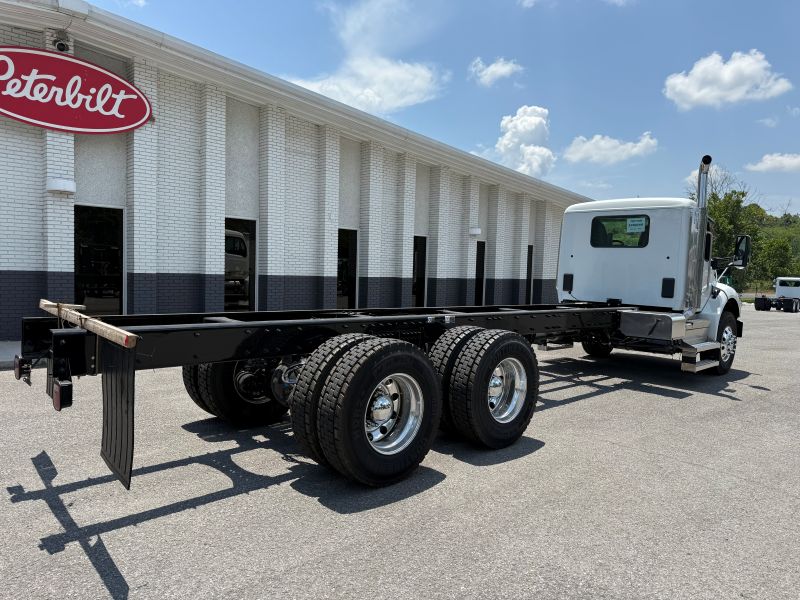

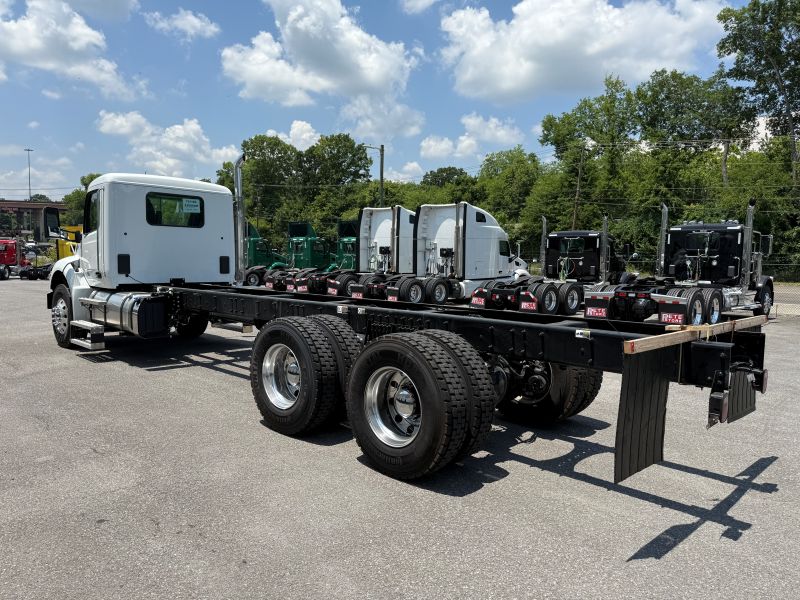

Up front is a Meritor MFS+14F axle rated 14,600 lbs with a 3.5-inch drop and wide-track configuration, riding on taper leaf springs and shocks rated to 14,600 lbs, with Sheppard SD110 power steering, a frame-mounted reservoir, and greasable front spring pins. Front braking is handled by Meritor EX+L optimized air disc brakes with PHP10 Iron Preset+ hubs and severe-service disc brake rotors. The rear end uses a Meritor MT40-14X axle rated 40,000 lbs with a 5.29 ratio, a differential lock on the tandem axles with speed interlock, heavy-wall drive axle housings, and synthetic axle lubricant, with Meritor EX+L optimized air disc brakes and PHP10 Iron Preset+ hubs with severe-service rotors on the tandem drive. An anti-lock braking system (6S6M configuration) is fitted throughout. The frame consists of 10-3/4-inch steel rails (403"-444" range) at 3/8-inch thickness with a full steel inner liner, an HD 5-piece crossmember at the back of cab, aluminum frame rail crossmembers, and a custom wheelbase/overhang. Key dimensions include a 67.5-inch FAX/BOC, a 206.5-inch cab-to-axle, and a 313.3-inch cab-to-EOF, with a maximum grade rating of 6 percent. A steel tapered chrome bumper with two tow points finishes the front.

Suspension
The rear suspension is a Hendrickson HMX EX 400 rated 40,000 lbs with 54-inch Haulmaax springs and a 60K creep rating, complemented by a cab air suspension for ride comfort.

Cab & Interior

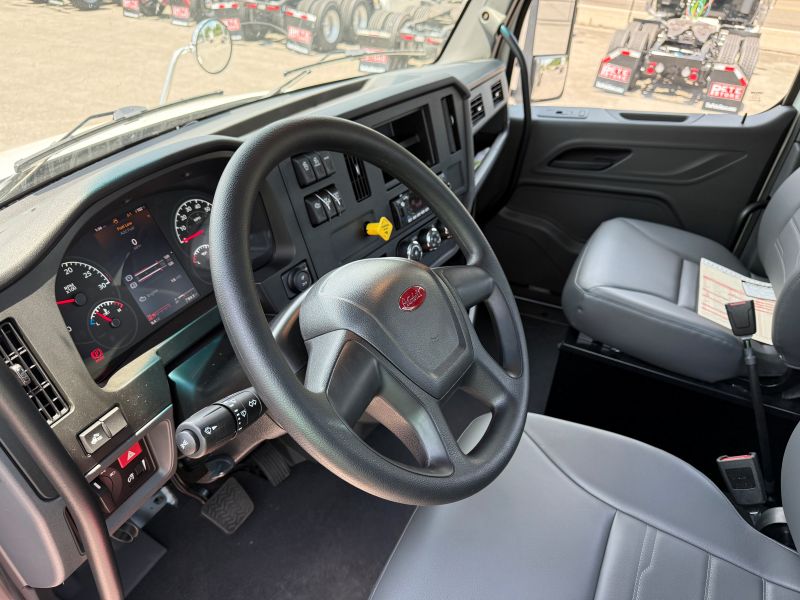

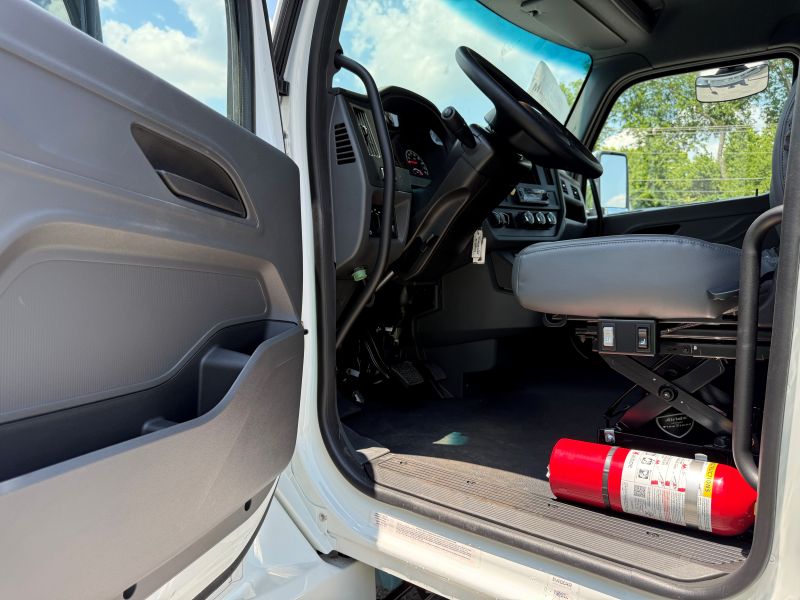

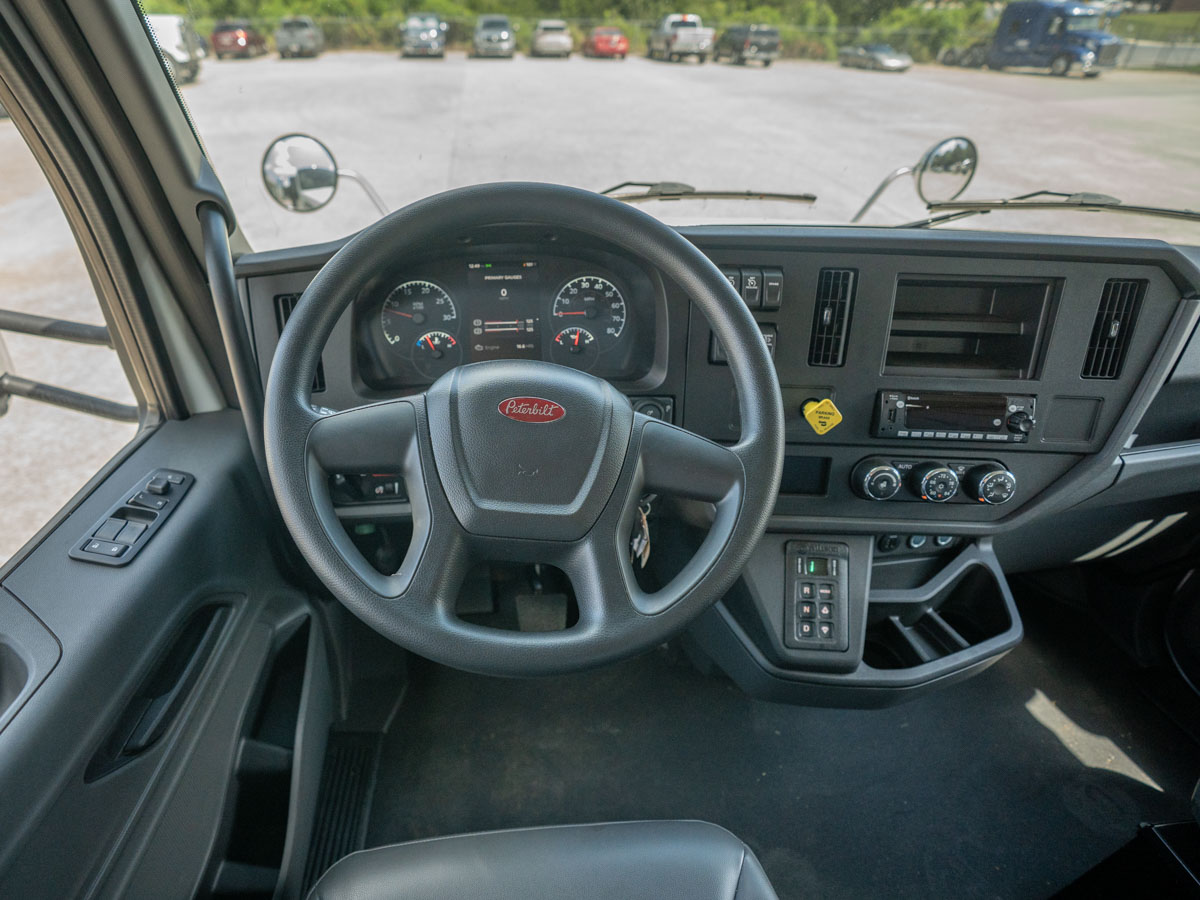

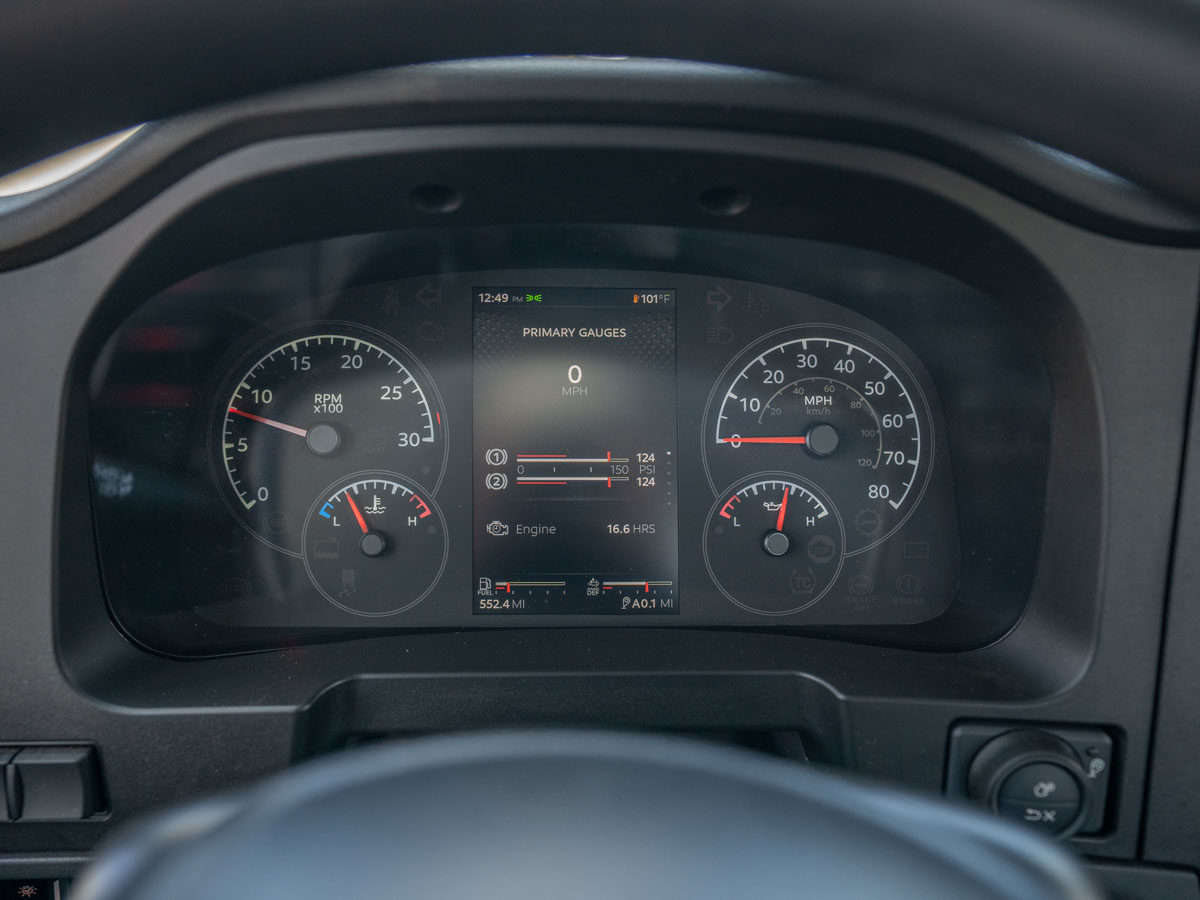

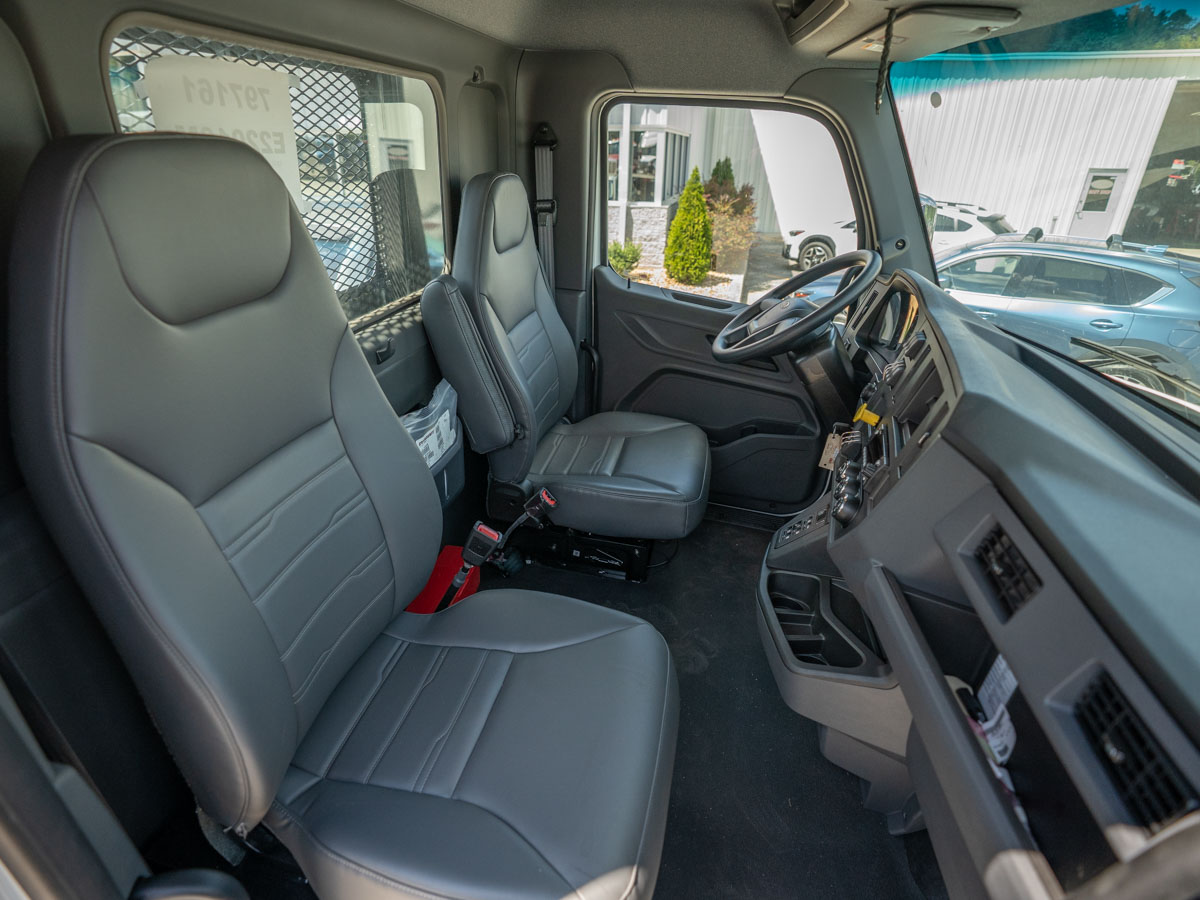

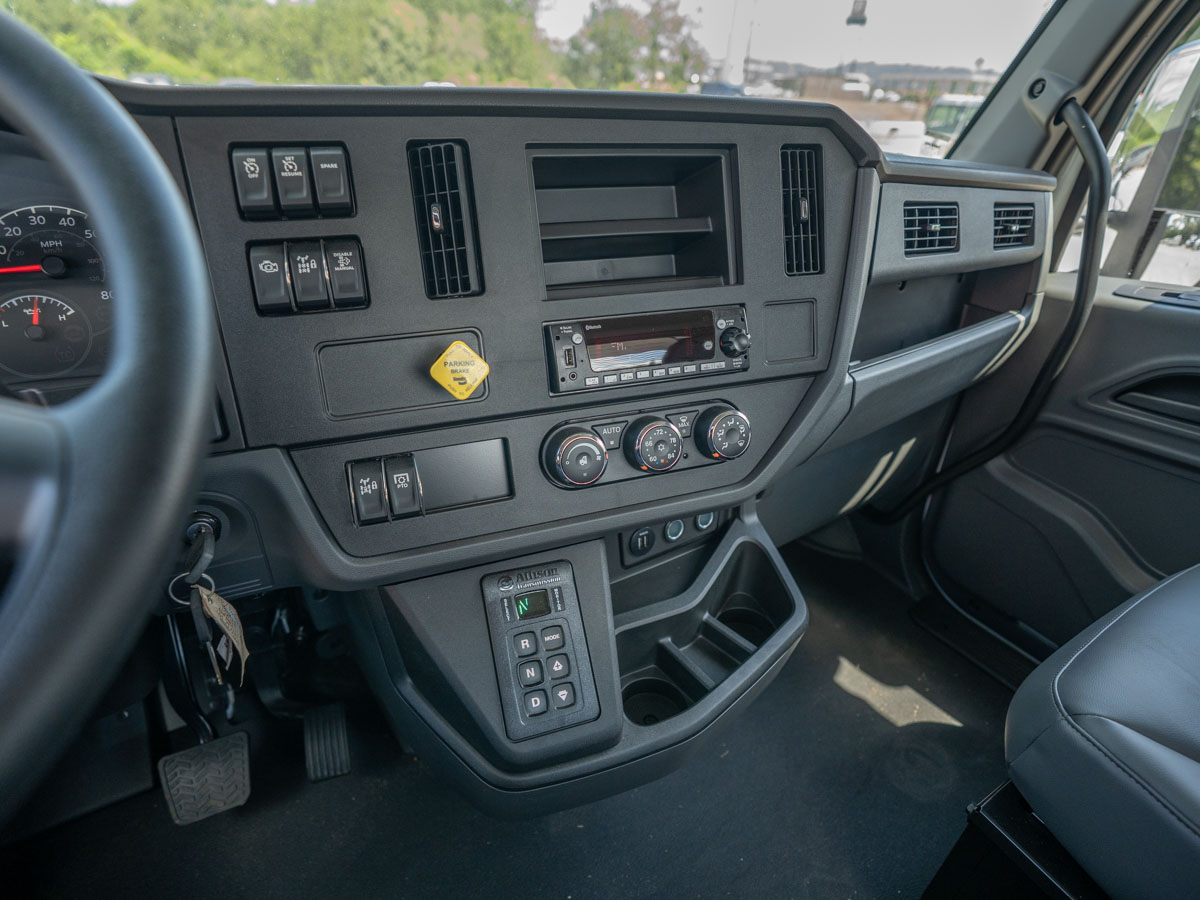

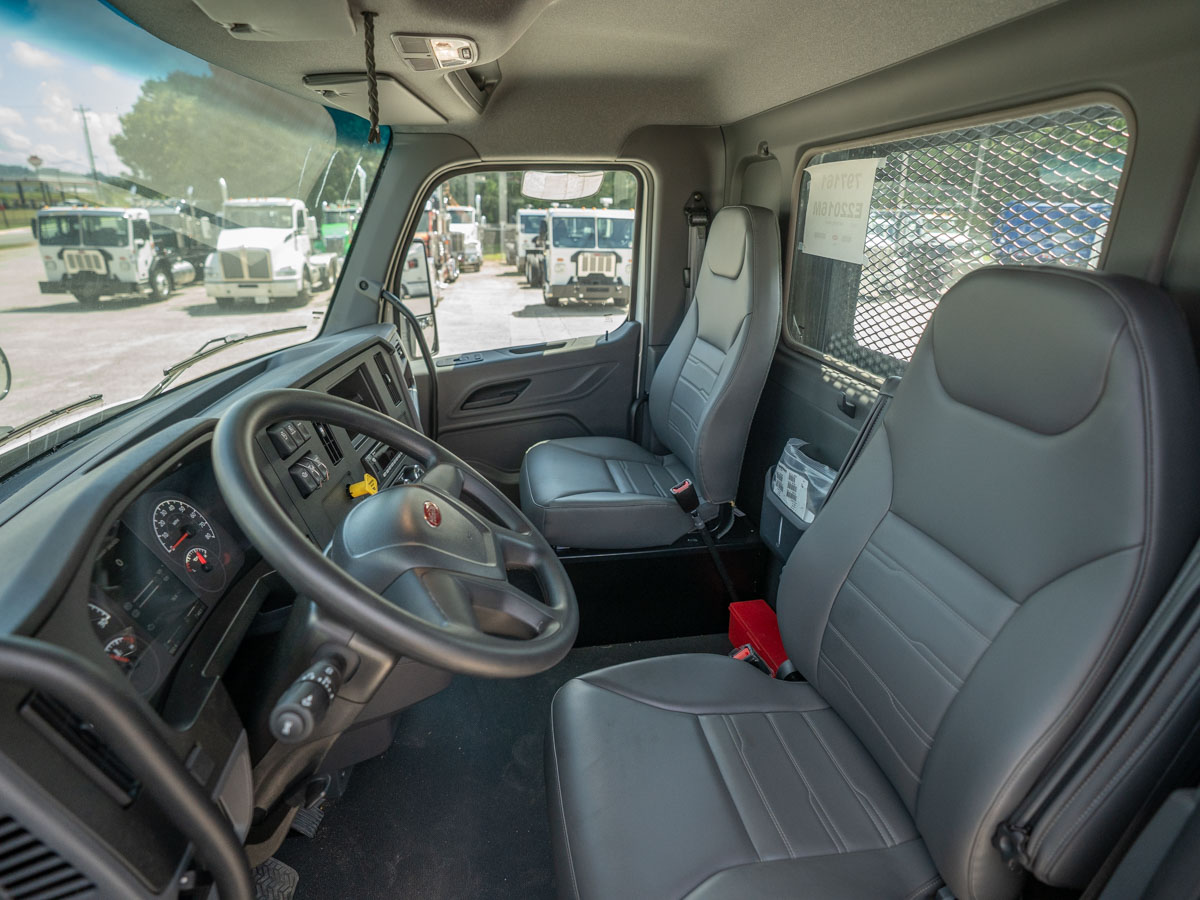

The cab is a Peterbilt Aero 107-inch BBC design with an SMC hood featuring a molded charcoal crown and aluminum cab construction, finished inside with a ProBilt charcoal gray interior, curved roof, and a thermal insulation package. Seating consists of Sears driver and passenger seats, with the driver's seat featuring air-ride, high-back, and vinyl trim and the passenger seat non-air-ride, high-back, and vinyl trim, along with driver armrests on both sides and a toolbox under the passenger seat. The cab includes a tilt/telescoping adjustable steering column with a Peterbilt-logo steering wheel, a one-piece curved windshield, a fixed one-piece glass rear window (day cab), power door locks and power windows, electric wipers with an intermittent feature, and a combination fresh-air heater/air conditioner. Visibility is aided by bright-finish aero rear-view mirrors that are motorized, heated, and include an integrated convex lens, a look-down mirror over the passenger door with a black housing, and bright-housing round hood mirrors. A textured, NFPA-compliant grabhandle assists cab entry. Infotainment includes a ConcertClass AM/FM radio with weatherband and a 3.5mm aux input, a standard two-speaker package, Bluetooth phone/audio, and a USB port, along with global telematics hardware and a SmartLinQ RD 5-year subscription. The driver faces a 7-inch digital instrument cluster displaying transmission oil temperature, engine hourmeter, engine PTO hourmeter, engine manifold pressure (turbo boost), and engine percent torque, along with an air restriction indicator, a dual-scale speedometer (MPH over KPH), and an additional dash switch with wiring. Safety and convenience equipment includes a 107 dB backup alarm, a fire extinguisher mounted outboard of the driver's seat, a triangle reflector kit, and a rear wall map pocket. Lighting includes composite fender-mounted headlights with integral DRL, park, turn, and side marker functions, five aero LED marker lights, self-canceling turn signals, bumper-mounted daytime running lights, incandescent square stop/turn/tail/backup lamps, and an air horn mounted under the cab.

Body & Equipment

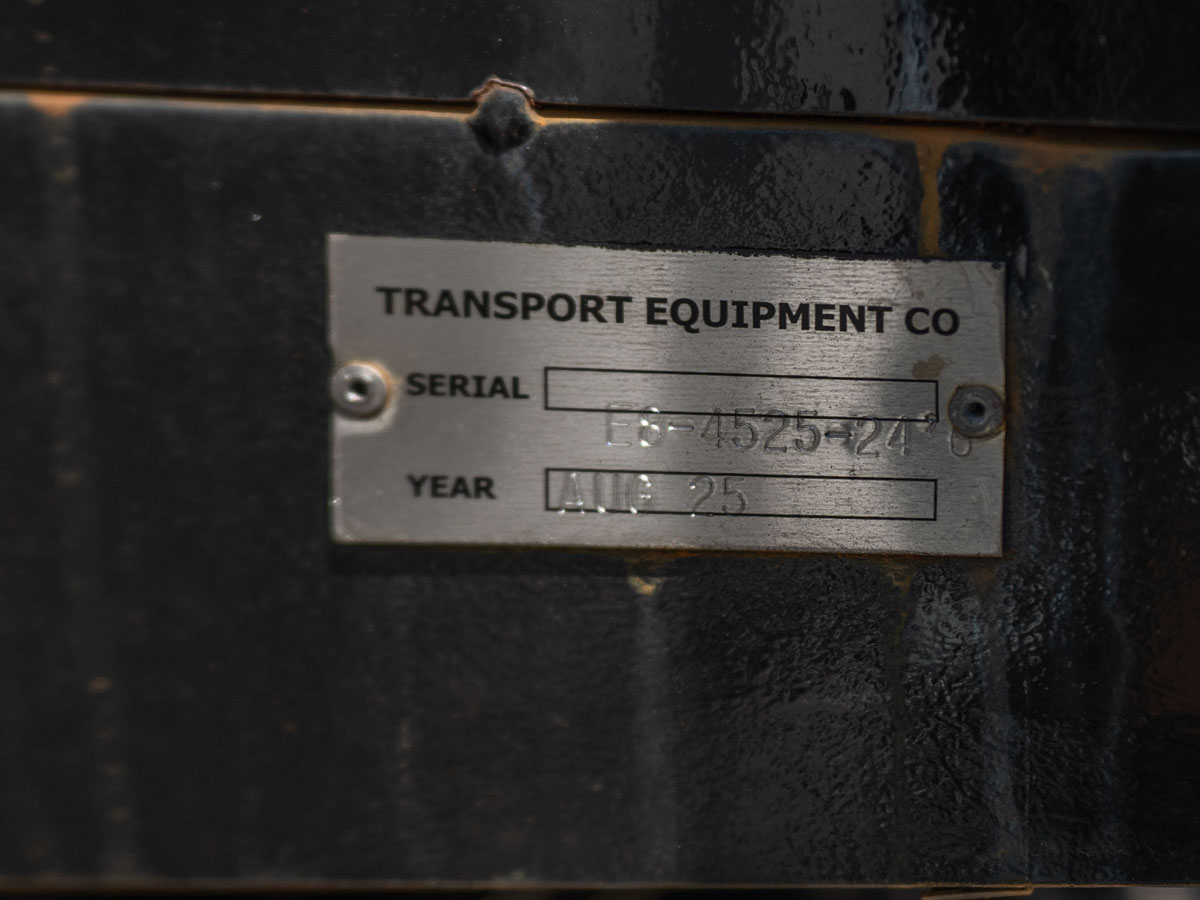

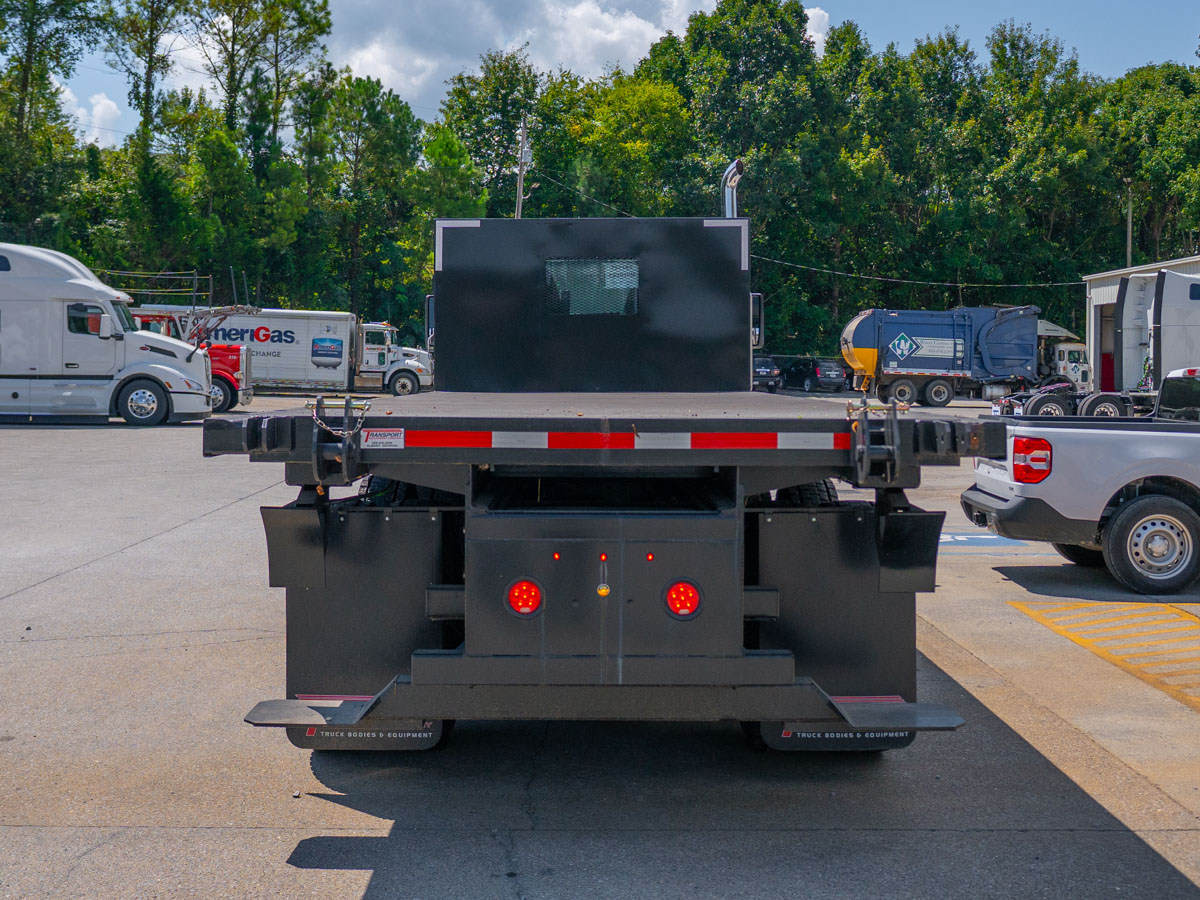

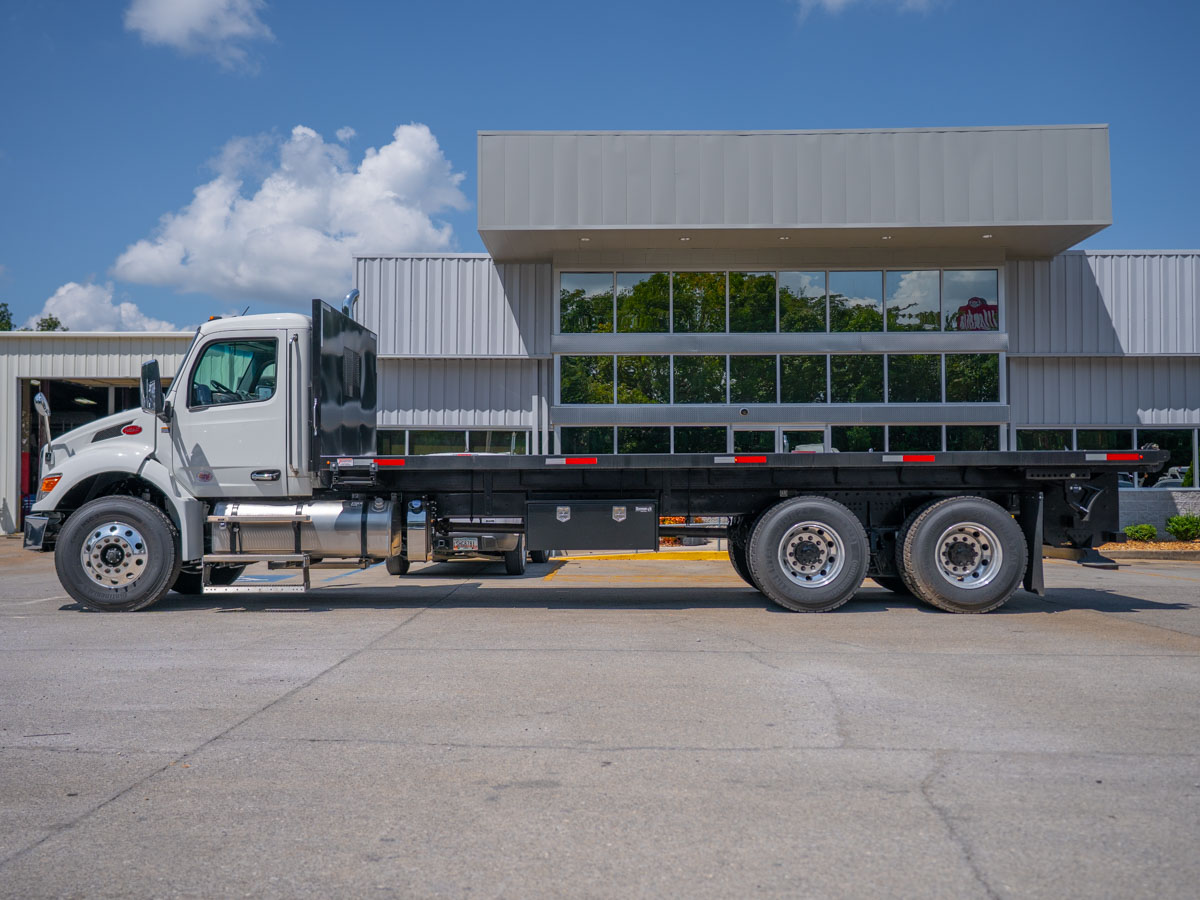

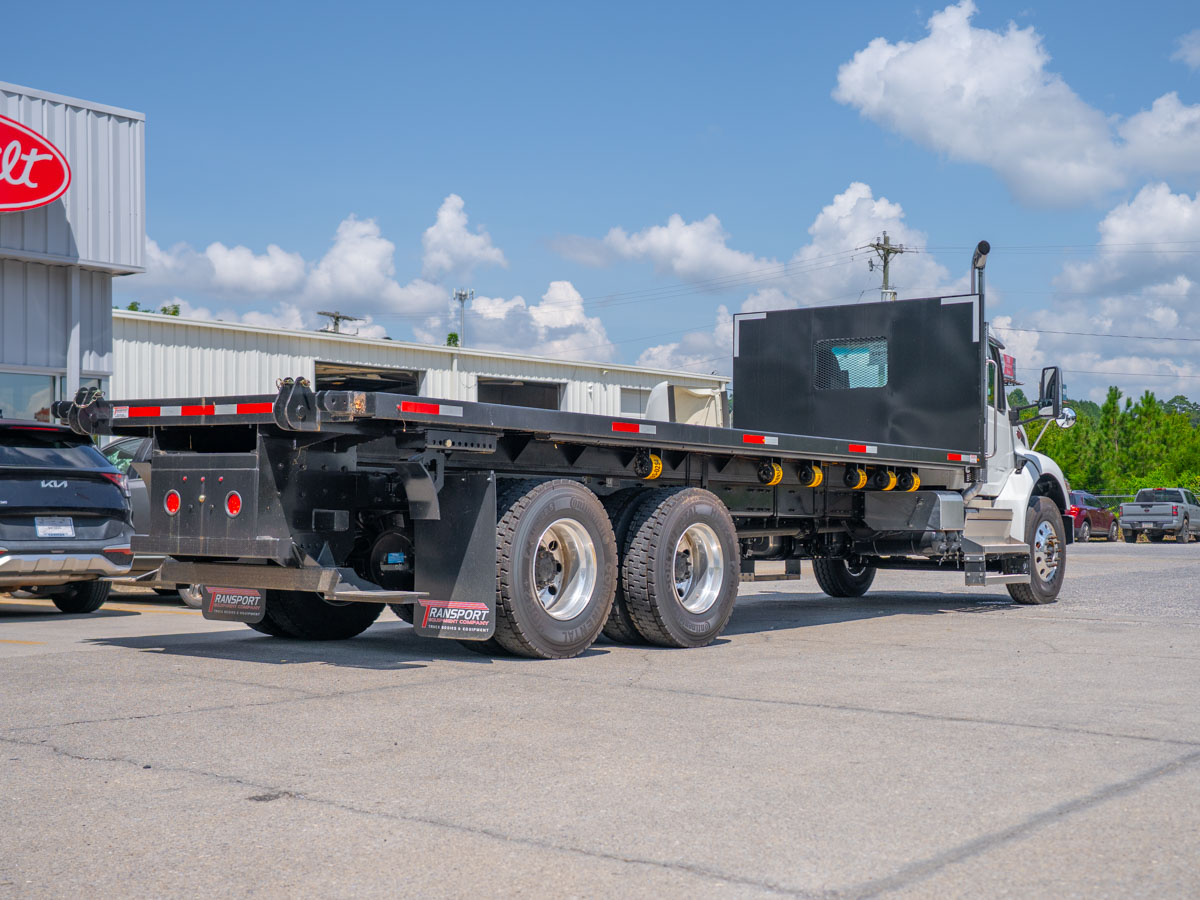

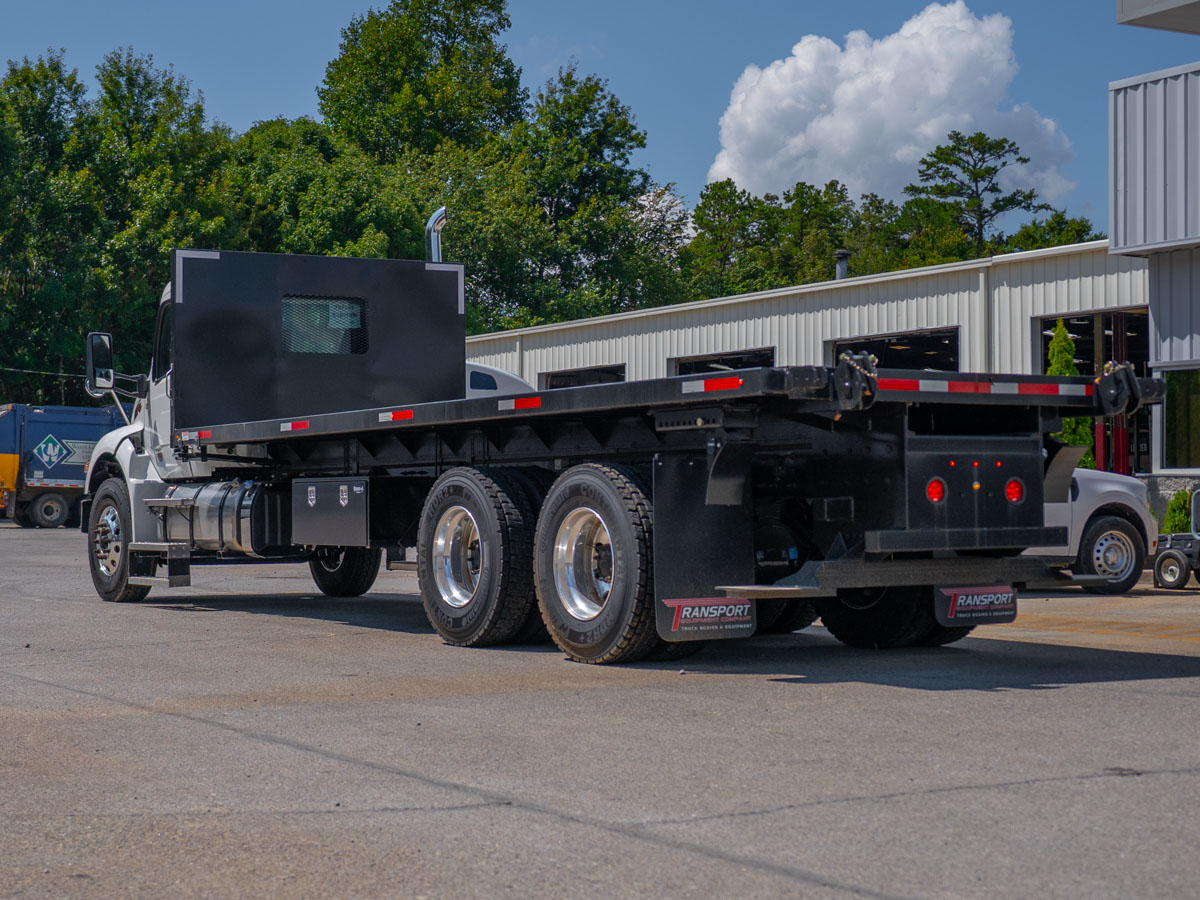

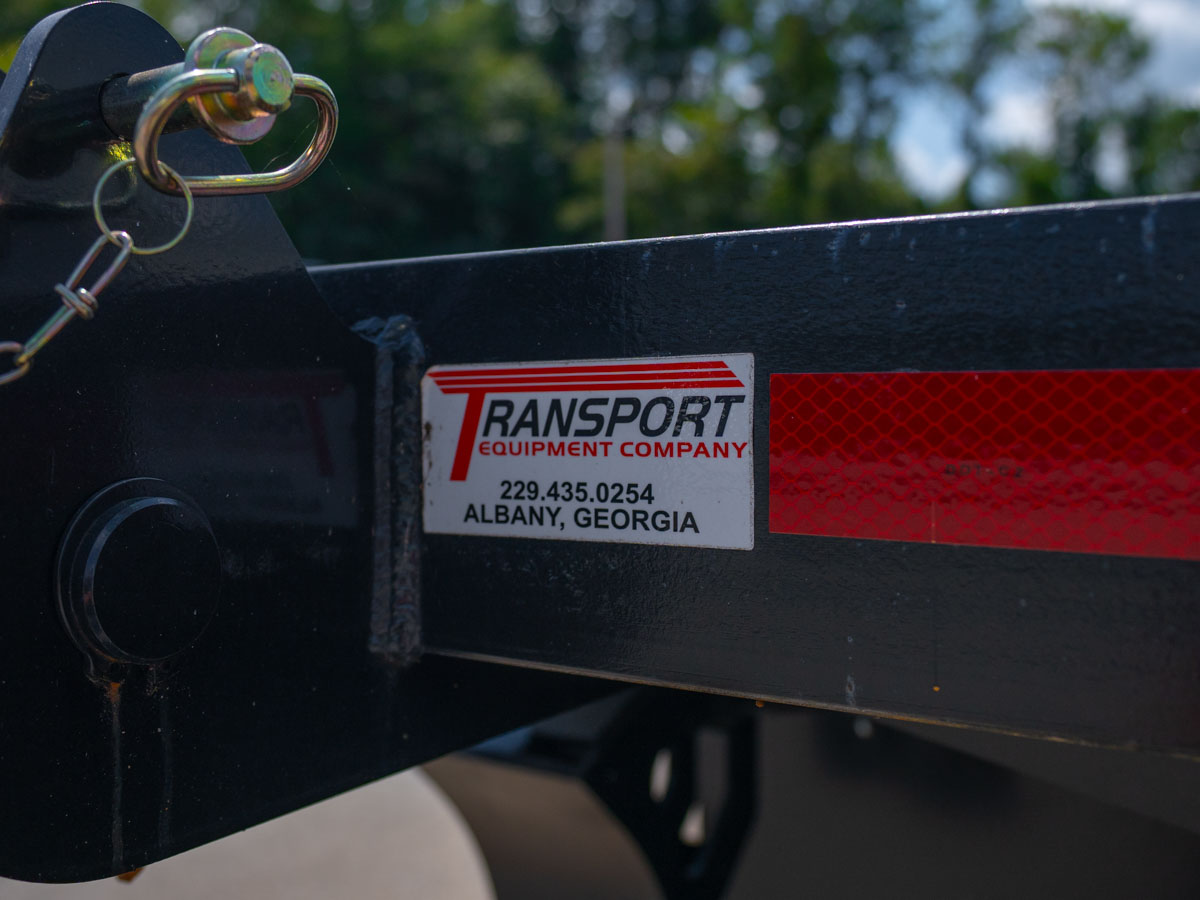

This unit is outfitted with a TEC steel platform flatbed body (Body #8-4525-24) measuring 102 inches wide (length pending confirmation — see flag above), built on 7-inch structural channel longsills with 4-inch structural channel crossmembers on 12-inch centers, gusseted every other crossmember, and a 3/16-inch smooth floor. The underside of the body is fully undercoated with a petroleum-based undercoating, and the body features a formed side rail with stake pockets and a full-height bulkhead with a window cut-out, finished in black enamel. Lighting and safety equipment on the body include an LED marker light kit (3/4 bullet style), reflective white conspicuity tape on both sides (stitched) and the full-width rear, HD ICC underride protection, and anti-sail mudflaps, all on a 12-volt DC system. Equipment includes an underbody toolbox on the driver's side, seven 4-inch winches and straps mounted on a slider rail on the passenger side, a winch bar holder mounted on the bulkhead, a 3-point access ladder at the bulkhead on the driver's side, and a genuine Moffitt/Princeton forklift carrier kit installed. On the chassis side, fueling is handled by a D-shaped aluminum 100-gallon fuel tank mounted LH under cab with a non-slip step, paired with a small/HD 14-gallon DEF tank mounted LH BOC with a polished stainless steel cover and a 1:1 DEF-to-fuel ratio; the chassis is confirmed centrally fueled, with two low-flex steps under cab. Electrical connections include a 7-way electric harness socket-mounted at the EOF, body connections 5 feet BOC, and a body connection with a Trucklite junction box at the LH EOF. An aluminum space-saver battery box is mounted RH BOC with side access, and an aluminum non-slip cab entry step covers the RH under-cab aftertreatment area. Air system components include a Bendix AD-HF air dryer with heater and coalescing filter, pull cords on all air tanks, nylon chassis hose, and steel painted air tanks. The cab, hood top, fenders, and roof are finished in white using Axalta two-stage paint, over a black frame.

Tires & Wheels

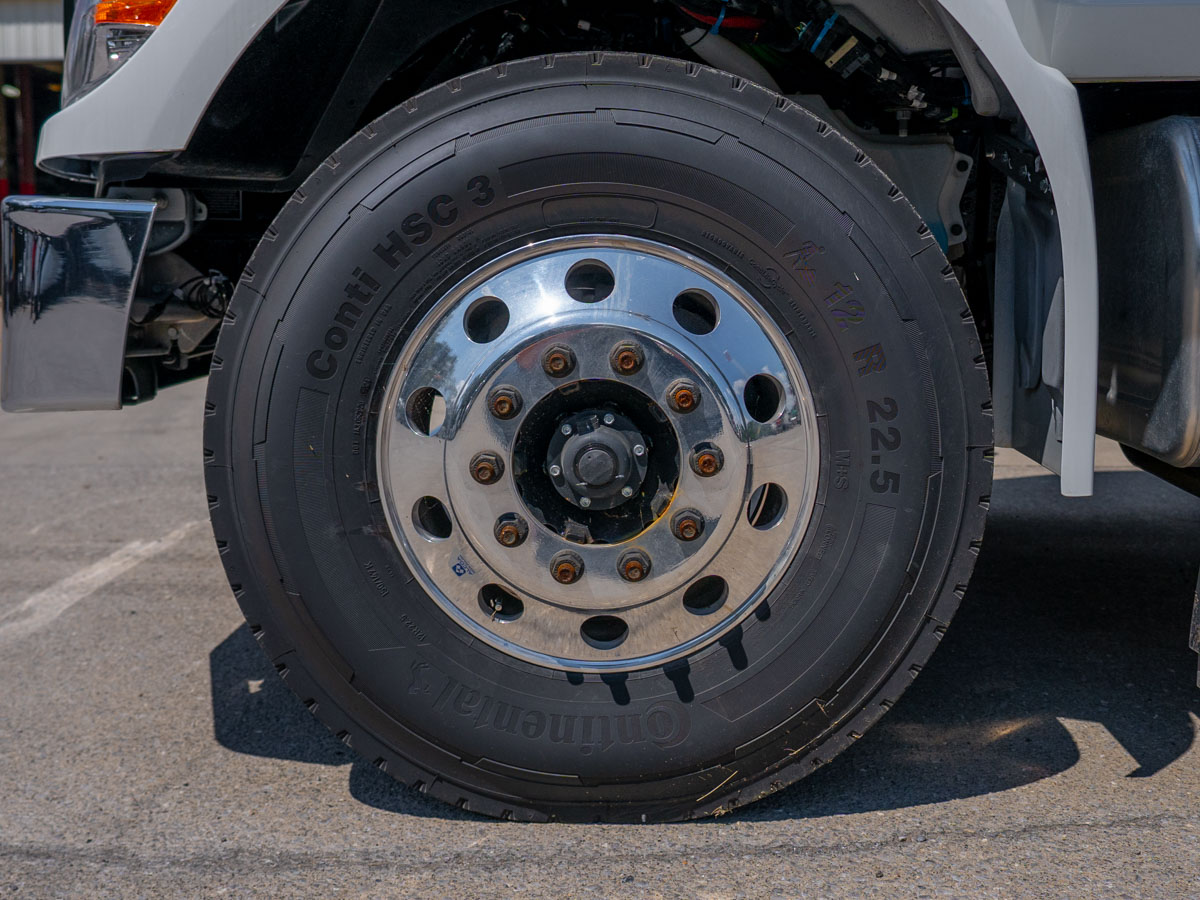

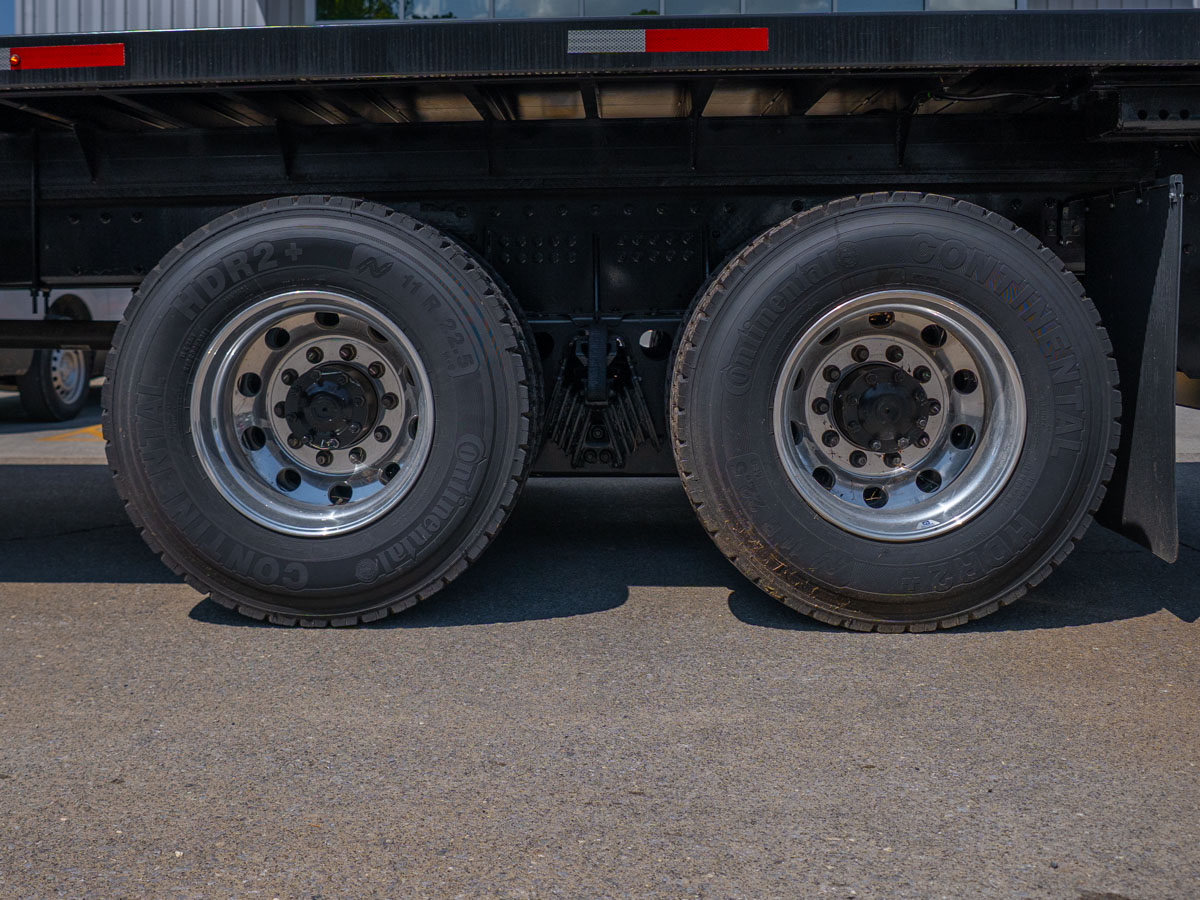

Front tires are 12R22.5 HSC3 16-ply units with TPMS sensors, and rear tires are 11R22.5 HDR2+ 14-ply units, with eight rear tires total. Both front and rear wheels are Alcoa ULA187 22.5x8.25 high-polish aluminum, with eight rear rims.

Warranty & Protection

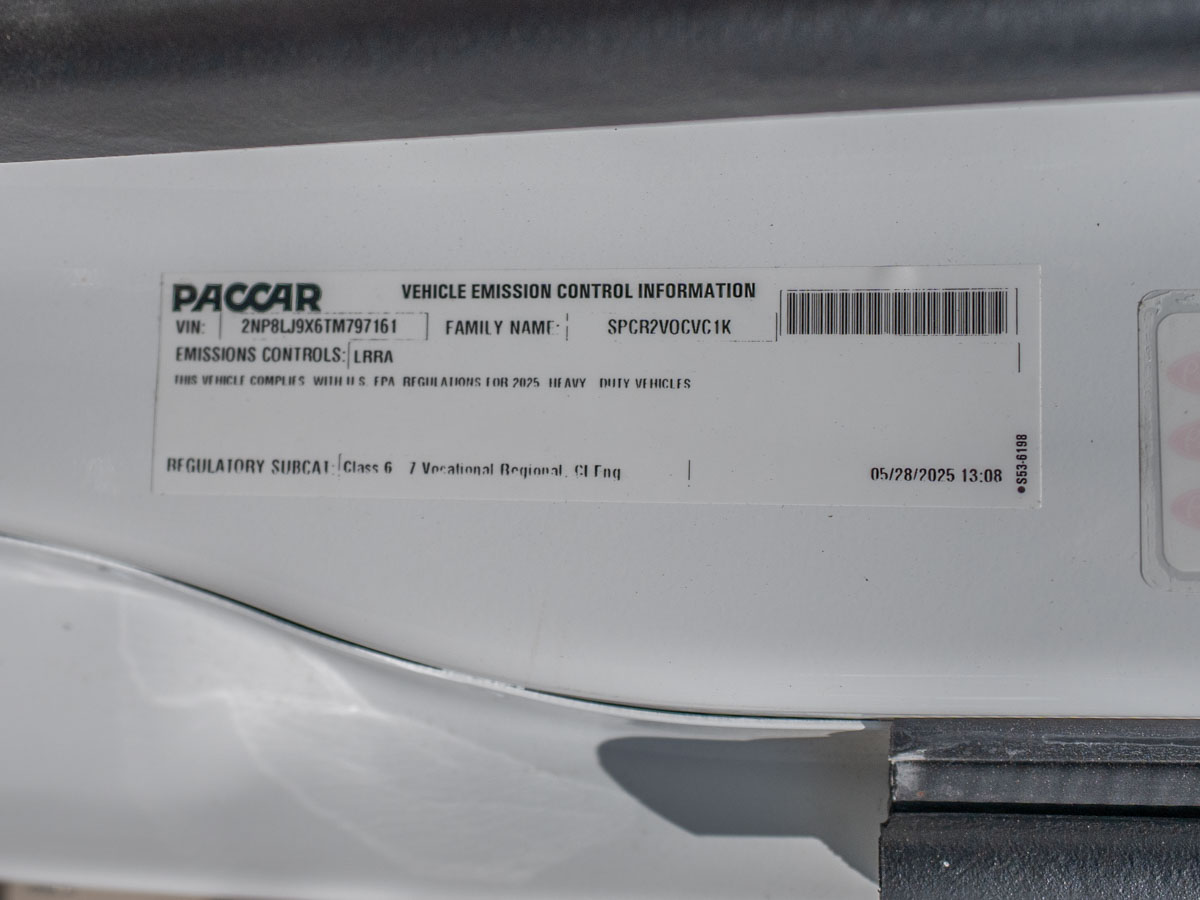

As a new truck, this unit carries Peterbilt's Class 7 Standard Coverage of 1 year with unlimited miles/km, PACCAR's PX-9 Standard Coverage of 2 years/250,000 miles (402,336 km)/6,250 hours, and a base emissions warranty of 5 years/100,000 miles on the EPA engine.
