Overview

Overview

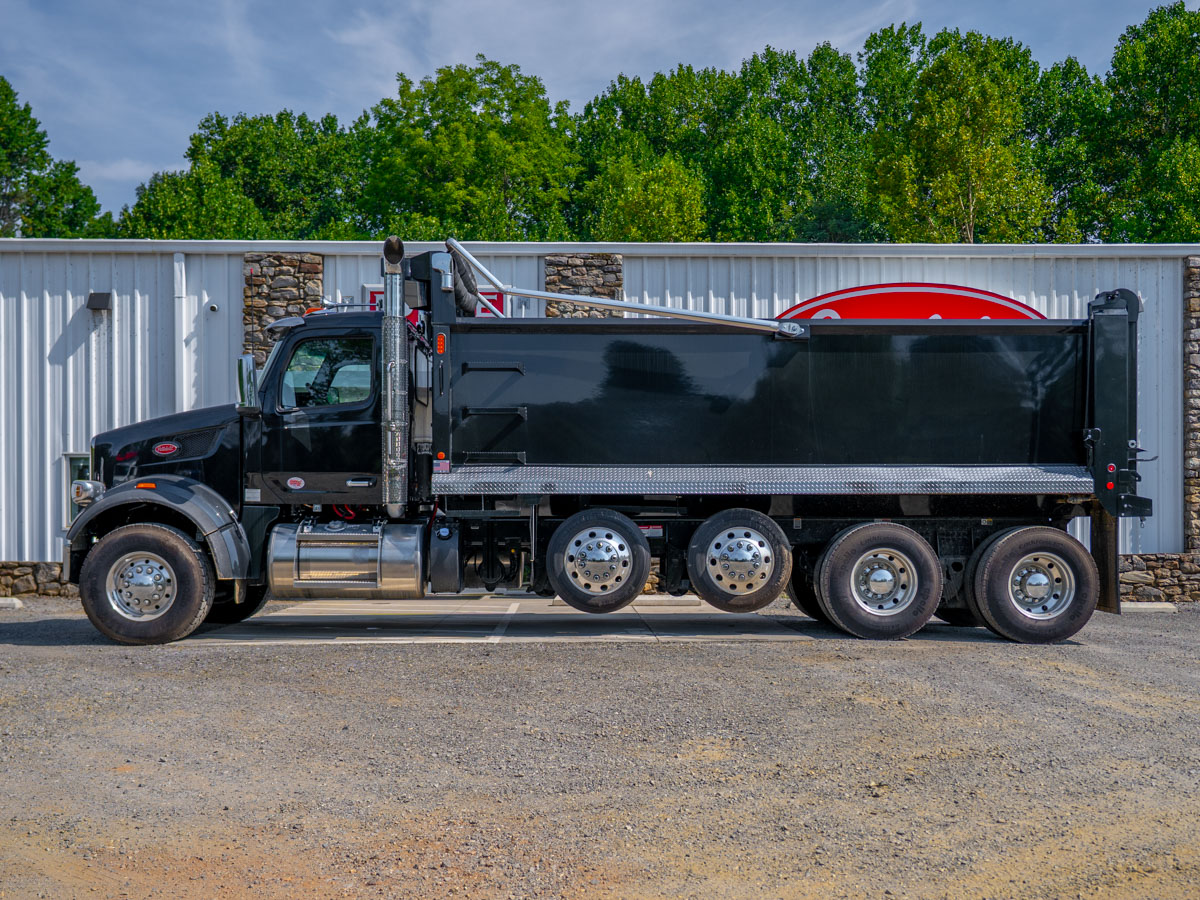

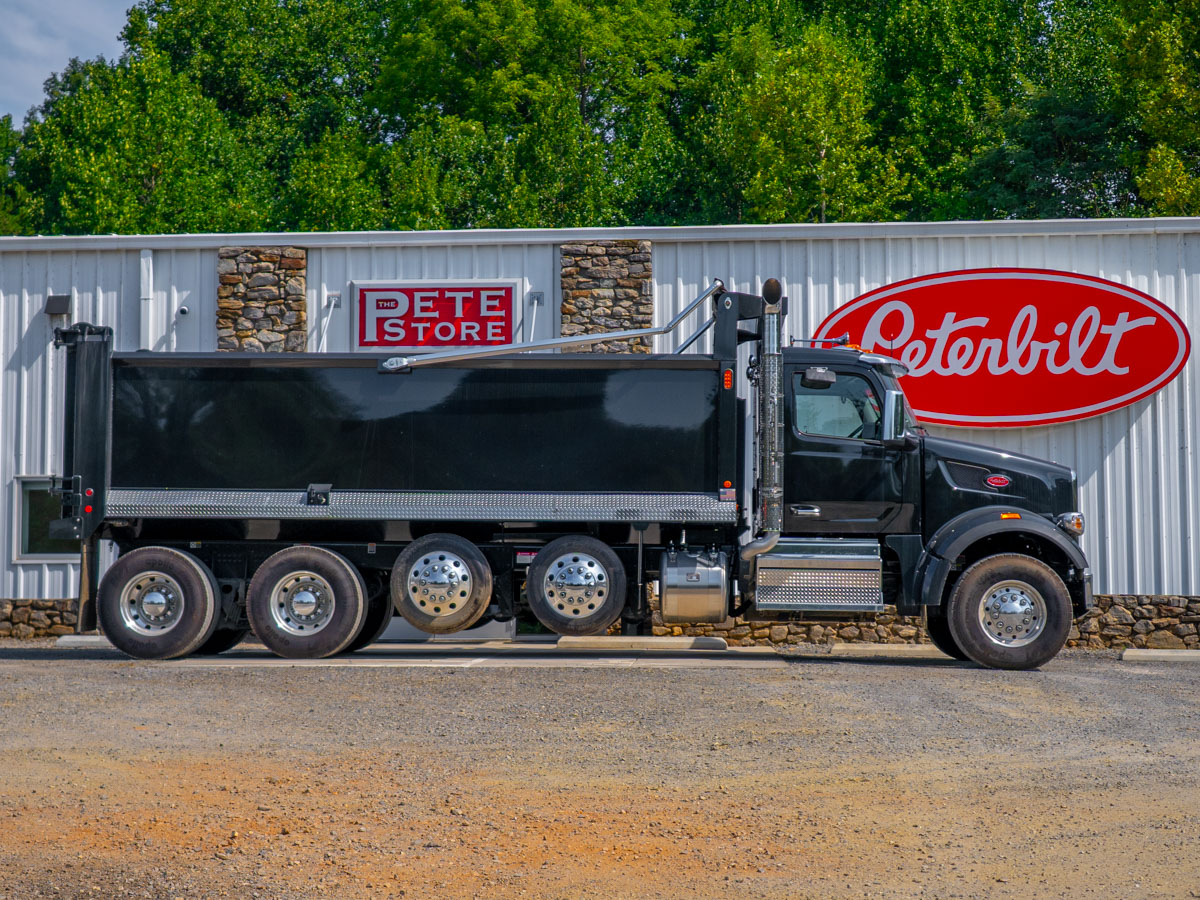

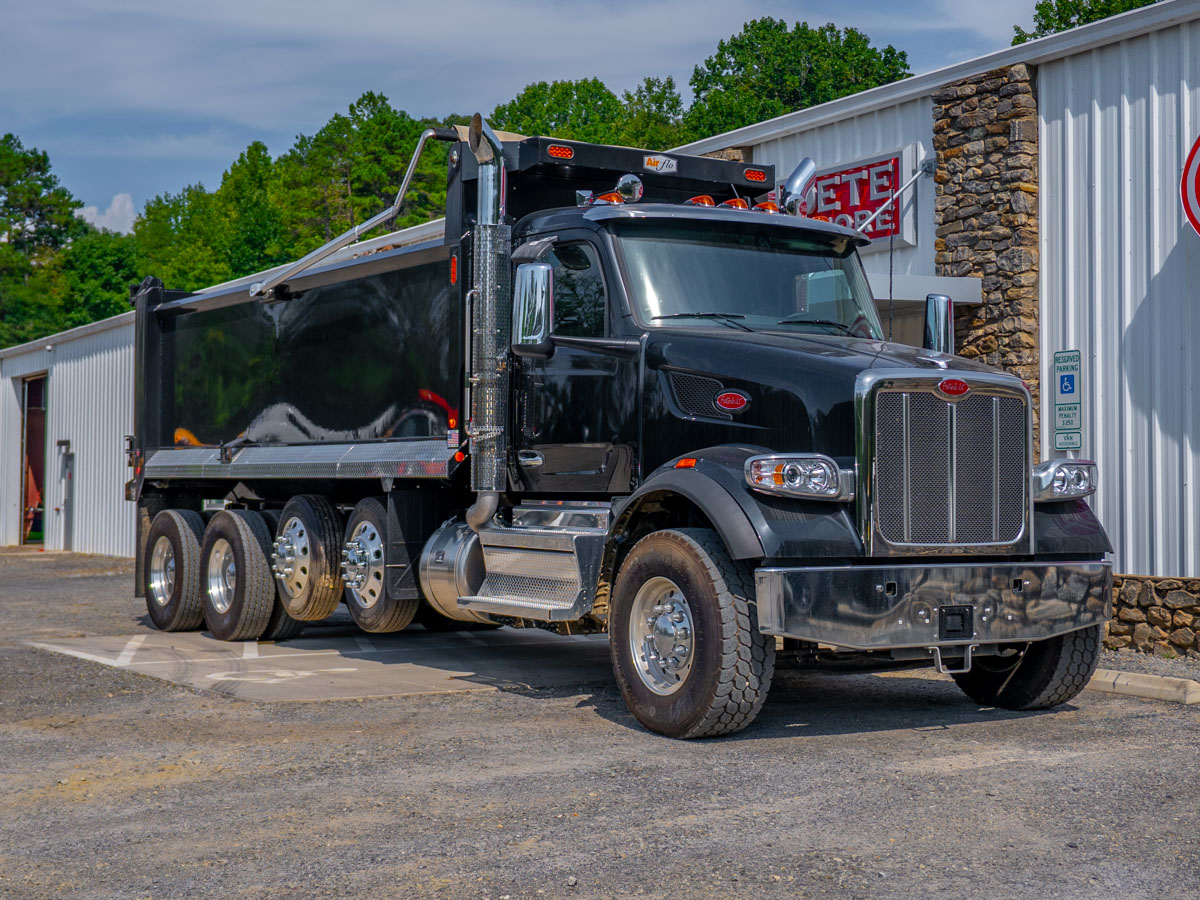

This is a 2025 Peterbilt Model 567 Conventional day cab, spec'd for construction dump service on and off the highway, hauling other commodity. It carries a GVWR of 85,000 lbs and a GCW of 85,000 lbs on a 277" wheelbase, and is fitted with a new Air-Flo tri-axle end dump body.

Engine & Drivetrain

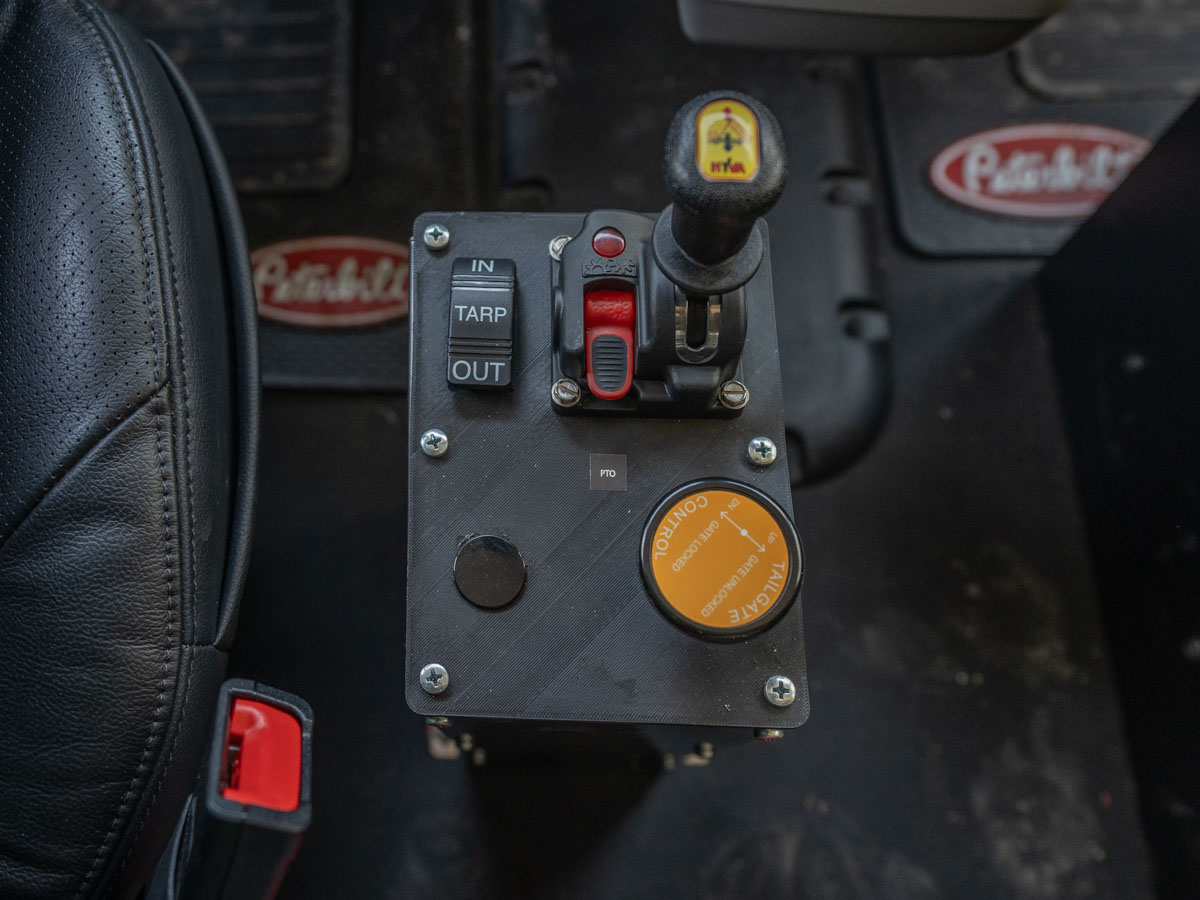

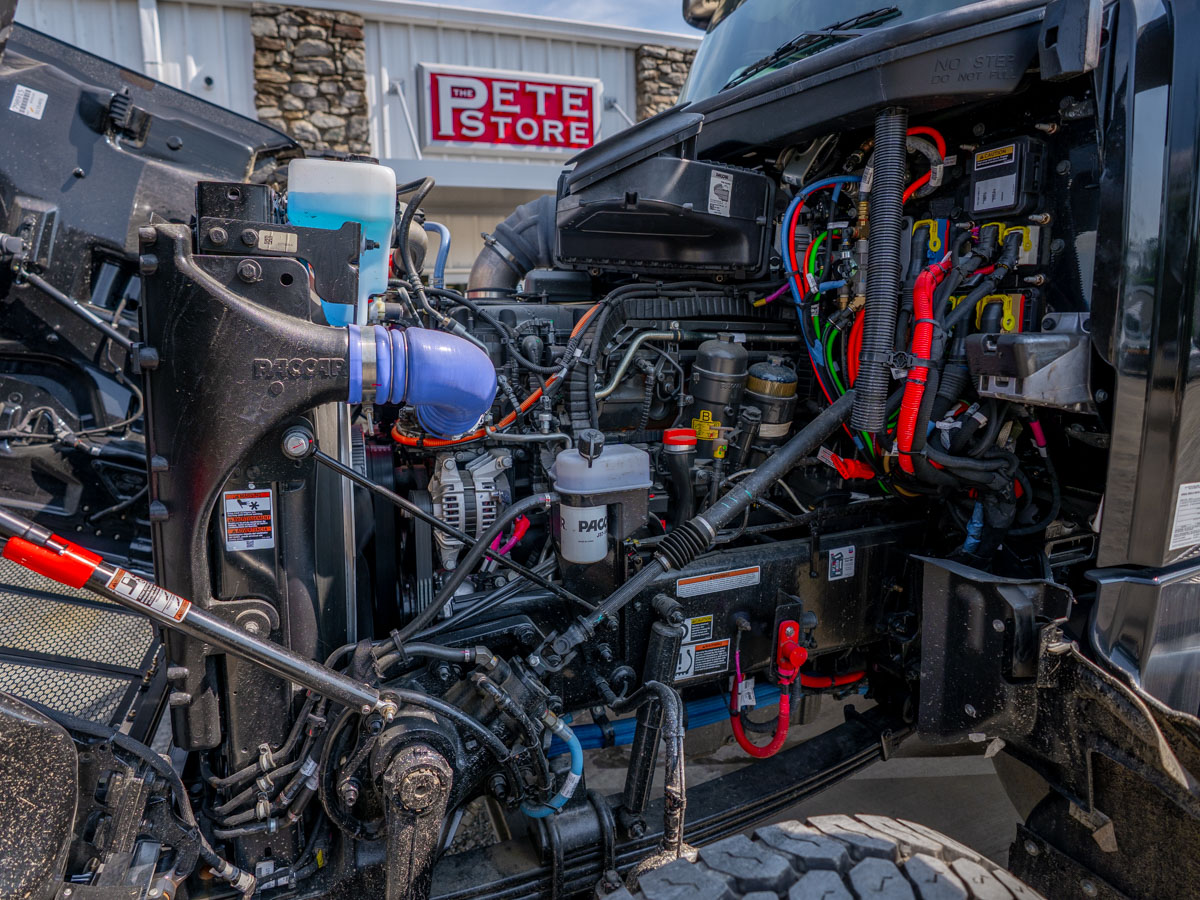

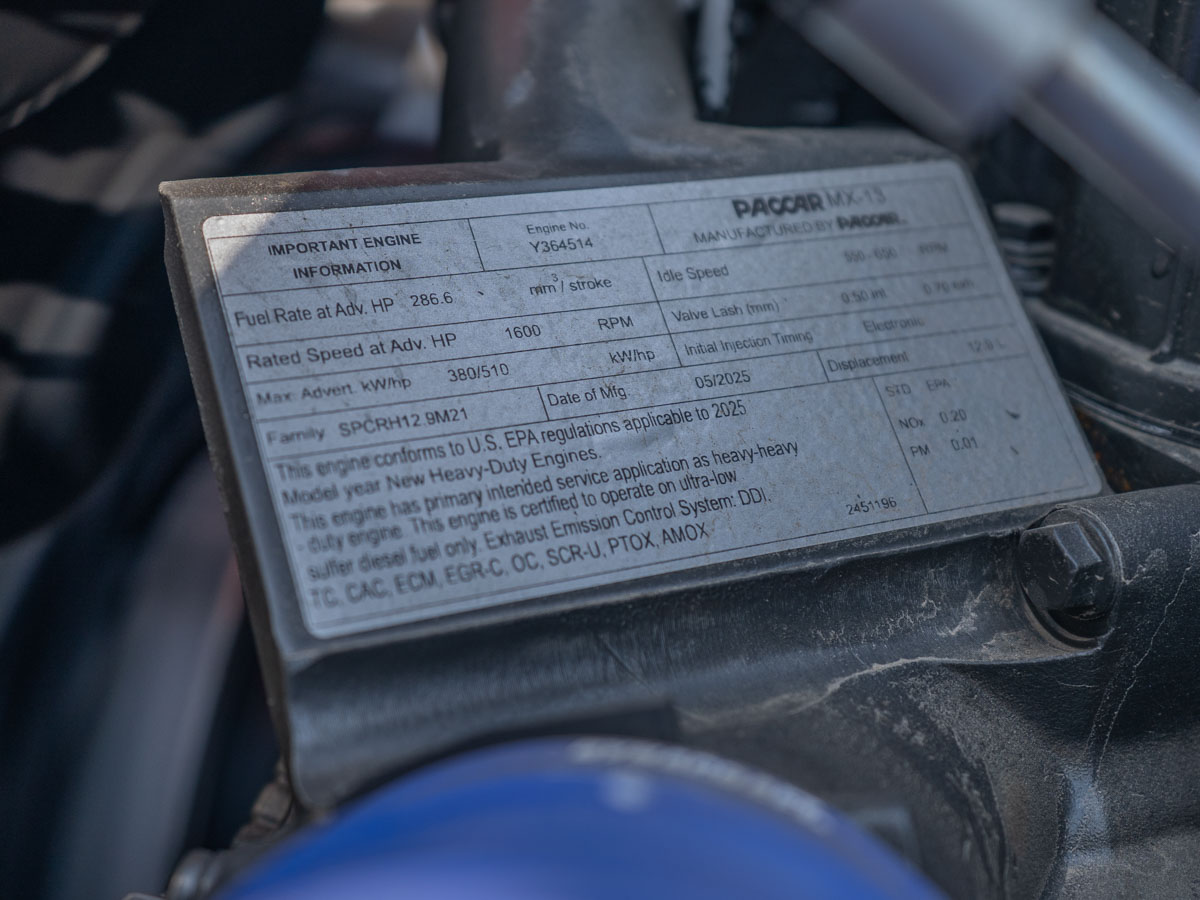

Power comes from a PACCAR MX-13 rated 510 HP at 1,600 RPM, governed at 2,200 RPM, with 1,850 lb-ft of torque at 1,000 RPM, built to 2024 emissions standards as a Model Year 2025 engine. The truck runs EMUX electronics architecture with a typical operating speed of 65 MPH, MX Retarder state cruise control on, and a PACCAR compression brake. The powertrain is optimized for balanced service with frequent start/stop cycles, and PTO is controlled from the cab station through a dash-mounted single-acting EOH PTO control (electric over hydraulic), with a remote PTO/throttle 12-pin provision in the engine bay. Power is routed through an Allison 4500 RDS-P automatic transmission, Gen 6 Rugged Duty Series, in a 6-speed configuration with a dash-mounted push button shifter, via an SPL170 HD-XL driveline with 2 midship bearings and an SPL170 XL interaxle driveline for the tandem rear axles. Electrical equipment includes a PACCAR 160-amp brushed alternator, 3 PACCAR AGM 12V batteries at 2,775 CCA, and a PACCAR premium starter. Additional engine equipment includes a 2-speed fan clutch for frequent start/stops, a Wabco 25.9 CFM air compressor, a high efficiency cooling system, dual self-cleaning under-hood pre-cleaners with a firewall-mounted air cleaner, a dual SOC exhaust with the stack on the LH side and DPF/SCR mounted under the cab in a single module, a 36" chrome standpipe with clear coat, and an immersion-type block heater (110–120V). The truck also comes equipped with SmartLINQ remote diagnostics (RD/OTA) on a 5-year subscription.

Chassis & Axles

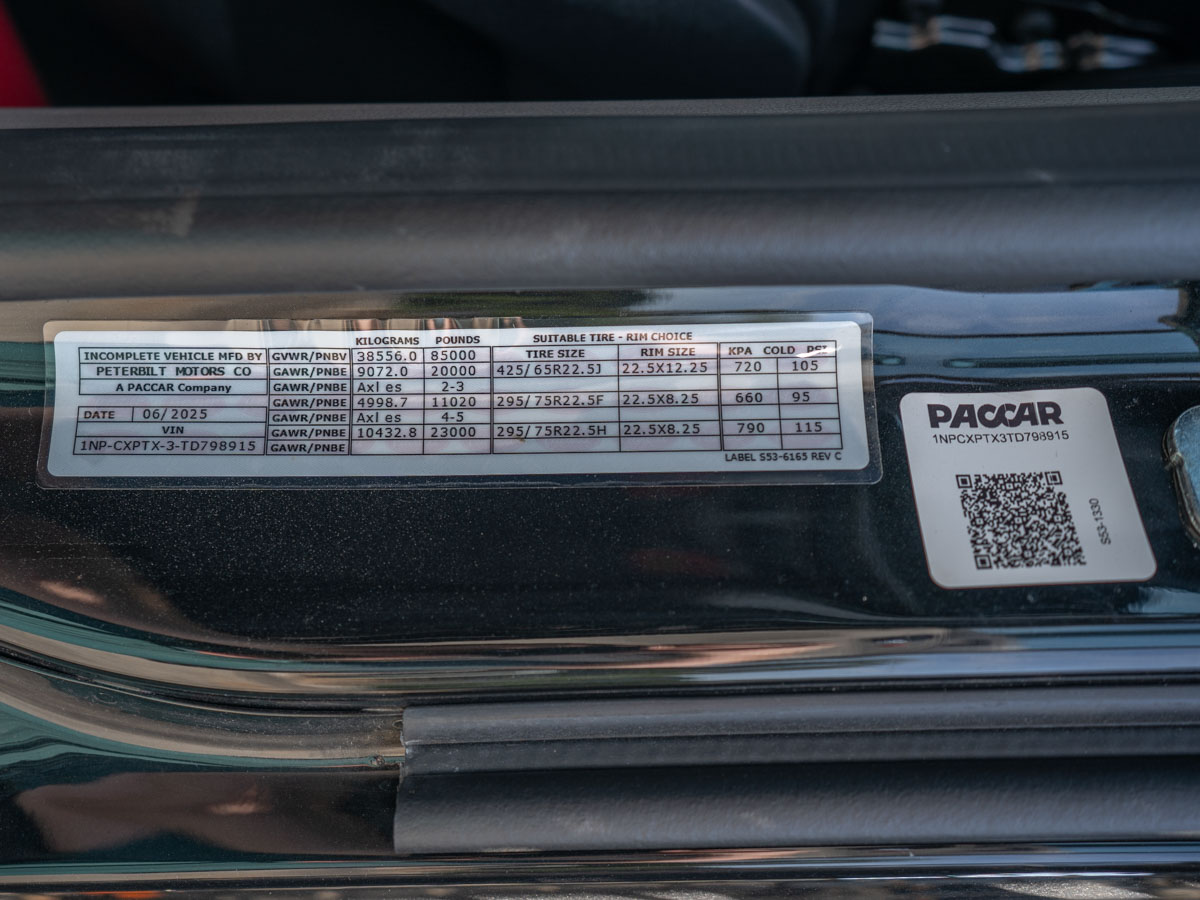

The front axle is a PACCAR FX-20 steer axle rated 20,000 lbs with a 4" drop (GAWR Front 20,000 lbs), and the rear axle is a Dana Spicer D46-172 rated 46,000 lbs (GAWR Rear 23,000 lbs). Two Watson-Chalin SL13 self-steering pusher axles are fitted, each rated 13,500 lbs and including their own air tanks (GAWR First Inter 11,020 lbs, Second Inter 23,000 lbs), spaced 49" and 98" from the centerline of the forward drive axle. The rear axle ratio is 4.10. The frame uses 10-3/4" steel rails extending to 354" at 3/8" thickness, with a full steel inner liner and zinc-coated anti-corrosion treatment, HD iron front spring brackets front and rear, and aluminum frame rail crossmembers. Key chassis dimensions are FAX/BOC 86.2", Cab/Axle 190.8", and Cab/EOF 248.8", with a maximum grade rating of 6%. Front axle load is rated 20,000 lbs and rear axle load 46,000 lbs. The truck includes a differential lock on the tandem axles with speed interlock, Bendix ESP Electronic Stability Program with ATC for truck/end dump/roll-off applications, air disc brakes front and rear on the tandem drive axle with severe service disc brake rotors, and heavy wall drive axles. Safety and monitoring equipment includes ABS (6S6M) with an off-road switch, a tire pressure monitoring system, synthetic axle lubricant on all axles, bracket-mounted lift axle regulators with switches and gauges in the dash, a stowed lift axle raised for maximum ground clearance, Lane Keeping Assist with torque-assisted steering, Bendix Fusion (side sensor not included), adjustable and standard following-distance adaptive cruise control, and Safety Direct with video recording.

Suspension

The front suspension uses taper leaf springs and shocks rated 20,000 lbs with Tenneco shocks on the steer axle. The rear suspension is a Hendrickson HMX EX 460 rated 46,000 lbs with 54" HAULMAAX and a 70K creep rating, along with HD shock absorbers. The cab rides on a cab air suspension, and steering is handled by a Sheppard HD94 dual gear power steering system with a frame-mounted, cooled reservoir.

Cab & Interior

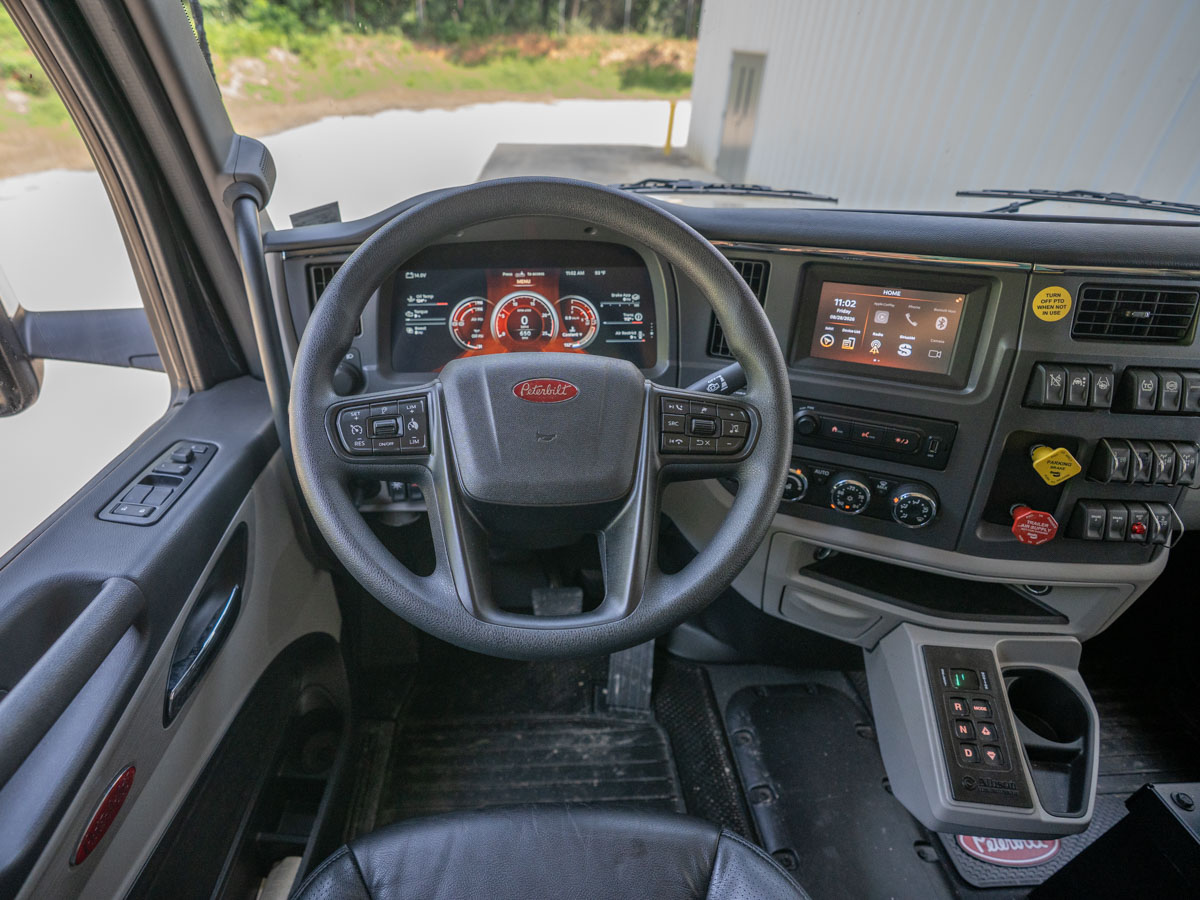

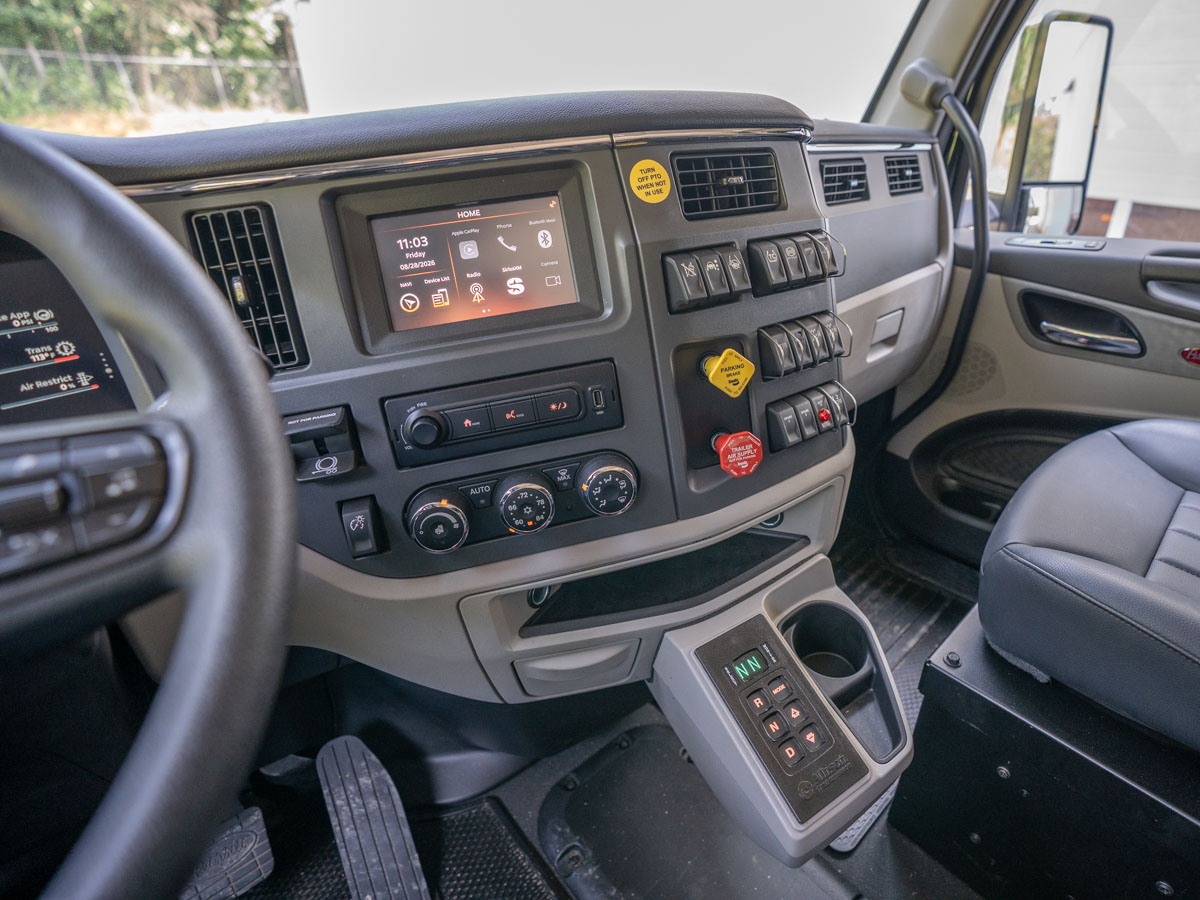

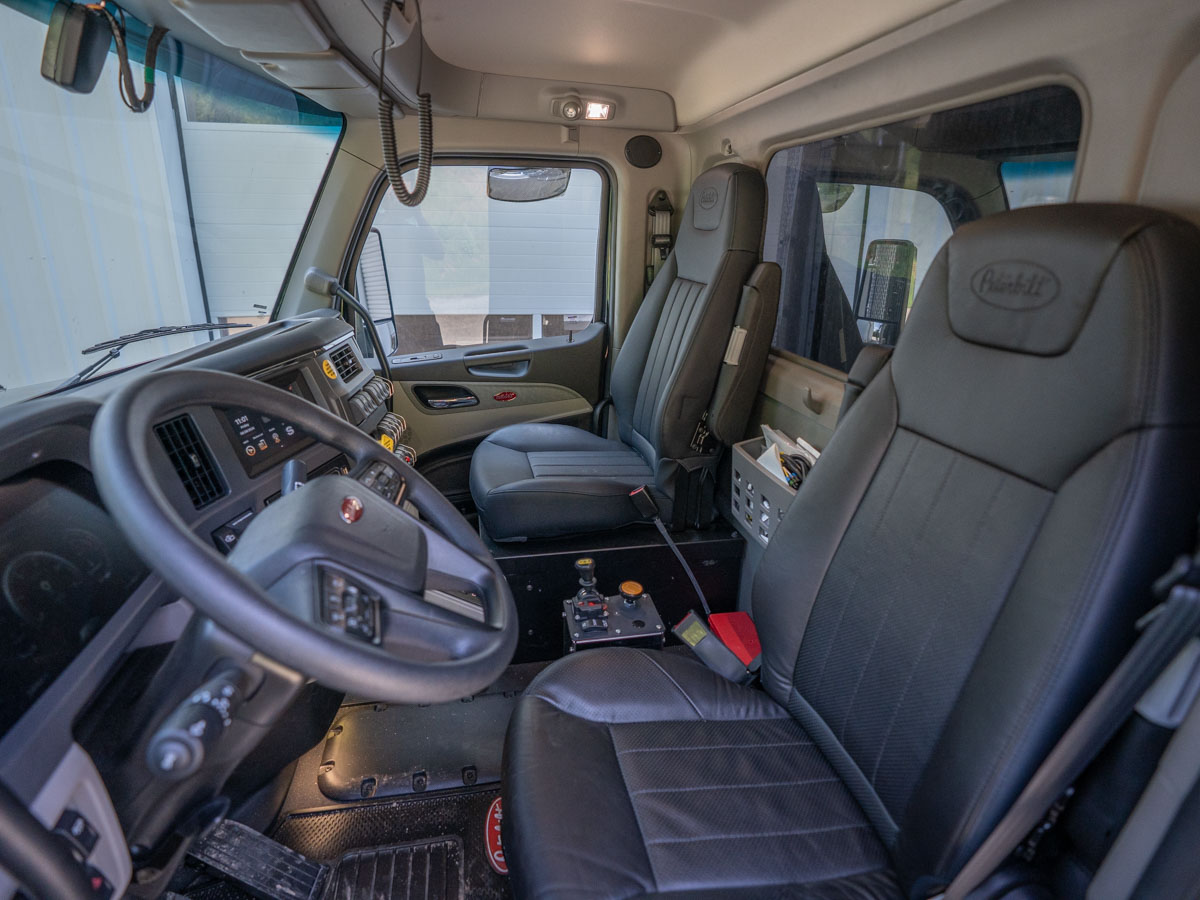

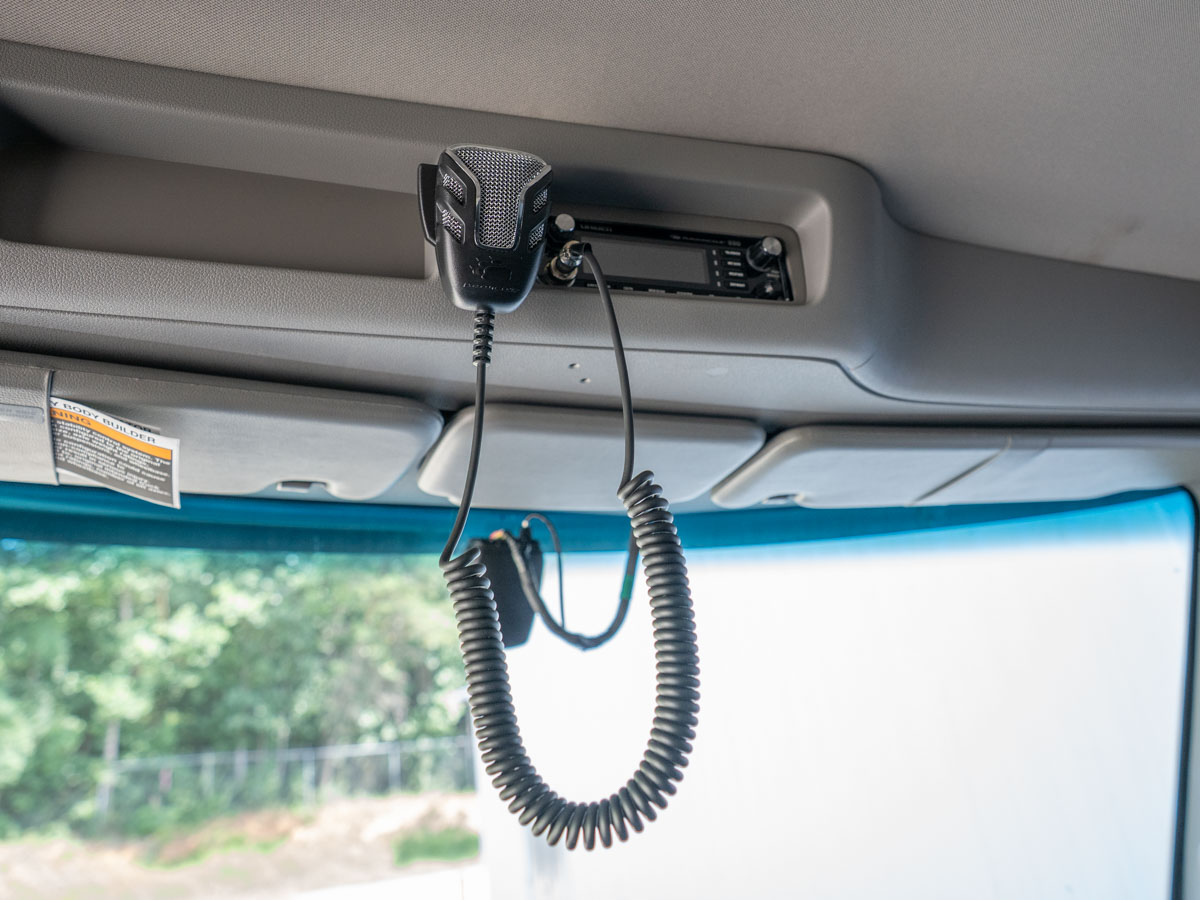

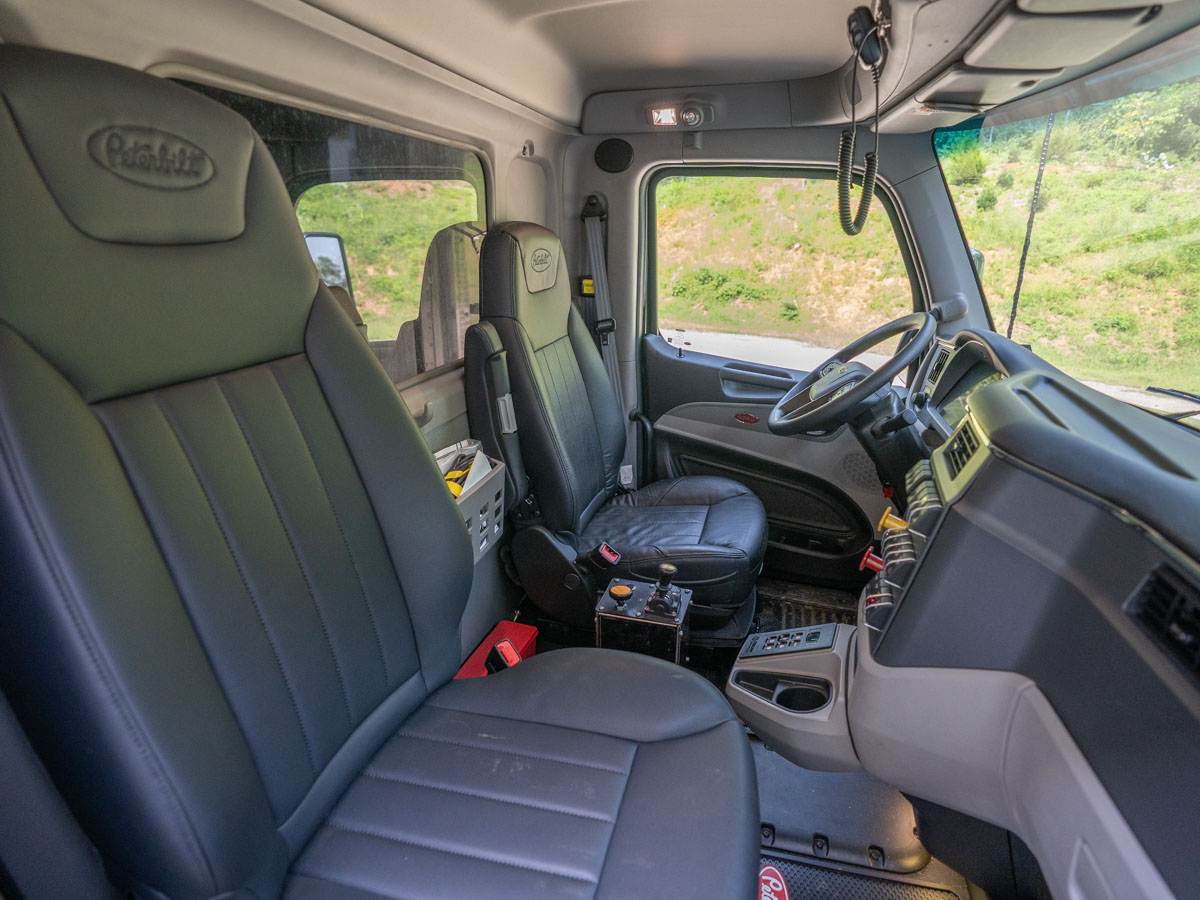

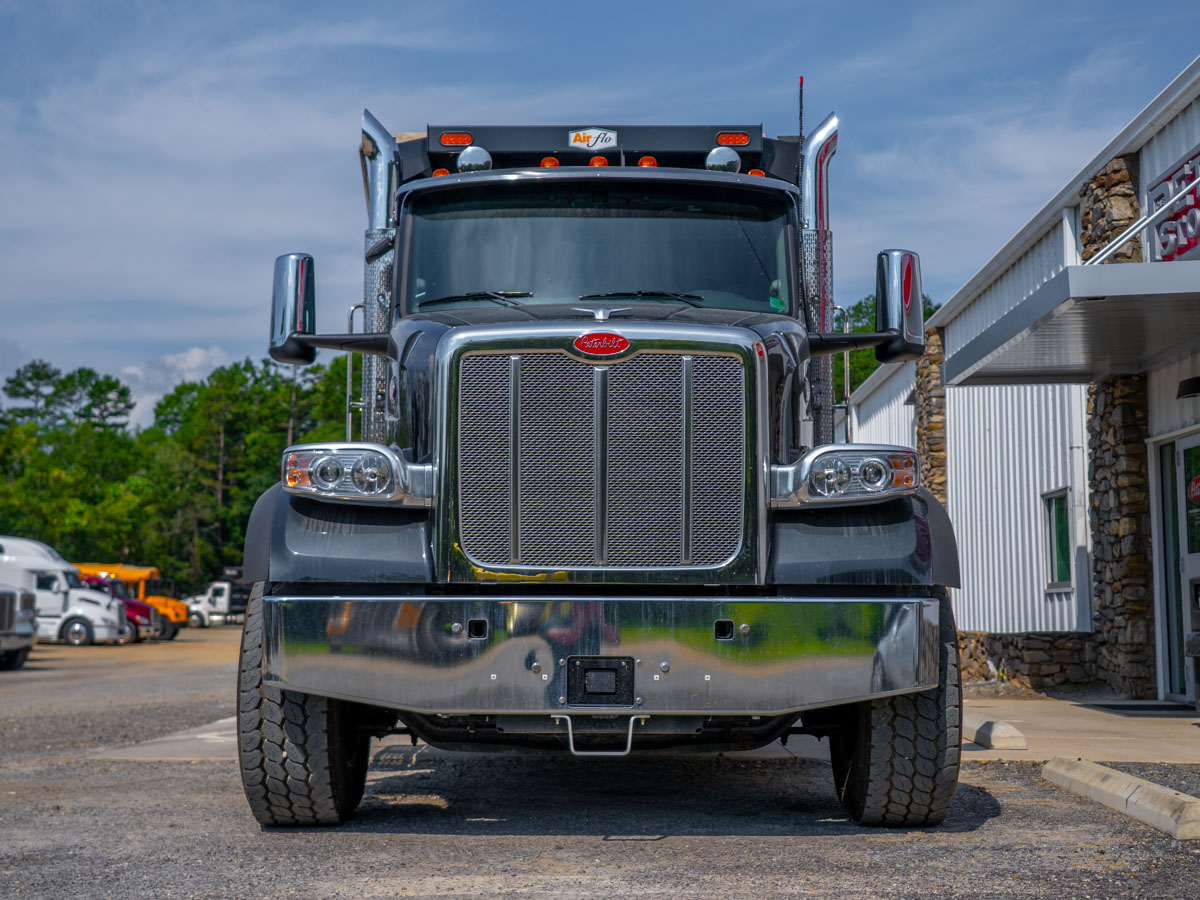

The cab is a VOC 115" BBC aluminum cab and Metton hood with a stainless steel crown and grille and tilt assist, configured as a day cab with no sleeper. Inside is a Premier interior in Sterling Gray with a rubber floor. The driver rides in a premium-level Peterbilt LX seat that is heated, air ride, high back, and leather, with driver and passenger armrests, while the passenger seat is a Peterbilt ST non-adjustable seat, high back, in vinyl; both seats are finished in black. The steering wheel includes multi-function controls for the PB logo, audio, and cruise control, mounted on a tilt/telescope adjustable column. Cab comfort equipment includes a thermal insulation package and the SmartSound cab insulation package. Technology includes a 7" infotainment display with Apple CarPlay, a premium 6-speaker package with tweeters, and a Uniden Bearcat 880 CB radio with weatherband and antenna. Climate control is handled by a combo fresh air heater/air conditioner. The cab has a one-piece curved windshield, power door locks and power windows, dark window tint, and a 1-piece fixed glass day cab rear window. Mirrors are motorized, heated aero units with integrated convex glass, plus a look-down mirror over the passenger door. The truck carries two round PB air horns, 23" length, roof mounted, and a textured, NFPA-compliant exterior cab entry grabhandle. The 15" digital cluster main instrumentation display includes front and rear drive axle oil temperature gauges, engine oil temperature, transmission oil temperature, air filter restriction pressure, brake application air pressure, engine manifold pressure (turbo boost), engine percent torque, and pusher axle pressure gauges for axles 1 and 2, along with three additional dash switches. Other cab features include electric windshield wipers with intermittent operation, a removable bugscreen, a rear wall deep record/map pocket, vanity mirrors on the sunvisors, an outside stainless steel sunvisor, global telematics hardware, auto reset circuit protection, a 107 dB backup alarm, a fire extinguisher, and a triangle reflector kit. Lighting includes projector module headlights with fender-mounted turn signals, five aero LED marker lights, self-canceling turn signals, incandescent square stop/turn/tail/backup lamps, and two bracket-mounted load lights. The cab, hood, fenders, hood top, and cab roof are finished in Axalta two-stage metallic/pearl effect Tuxedo Black paint, with a black-painted frame.

Body & Equipment

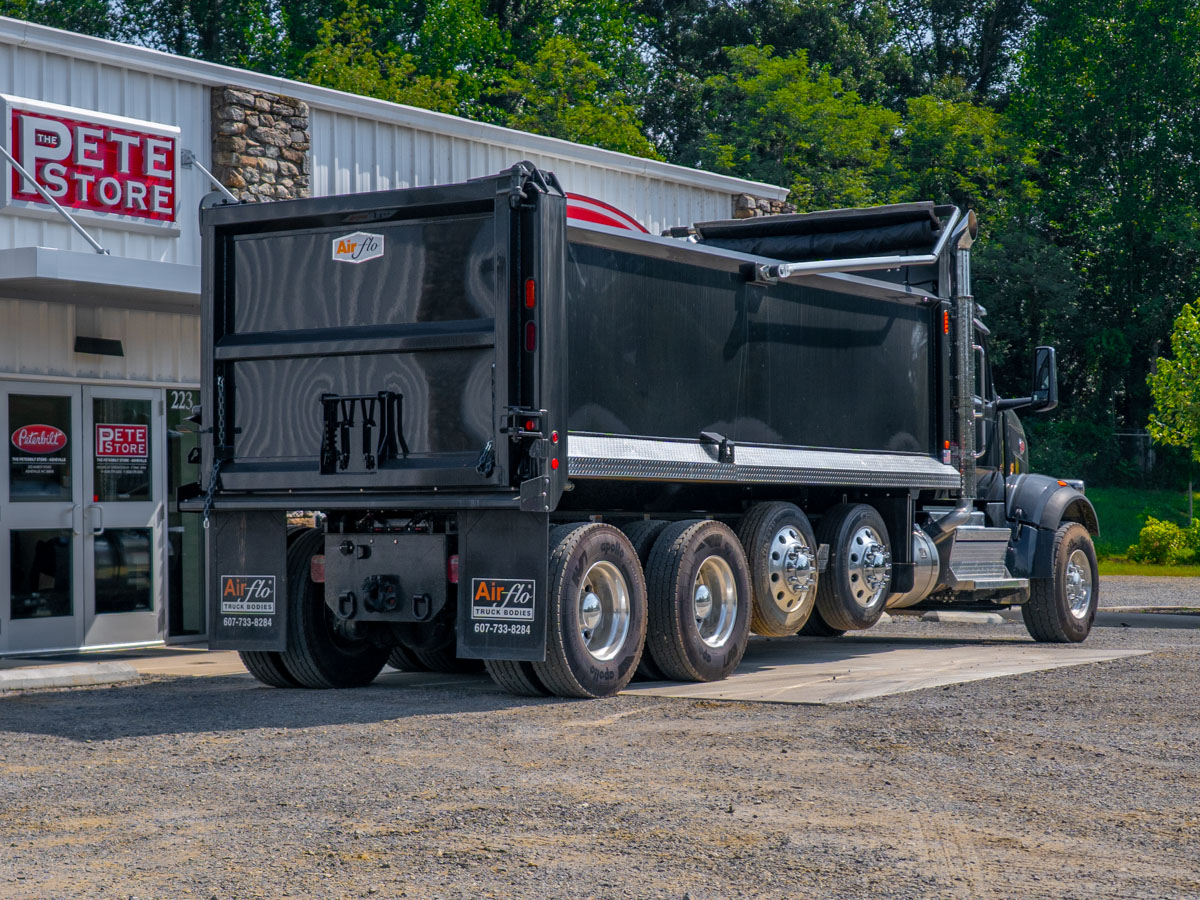

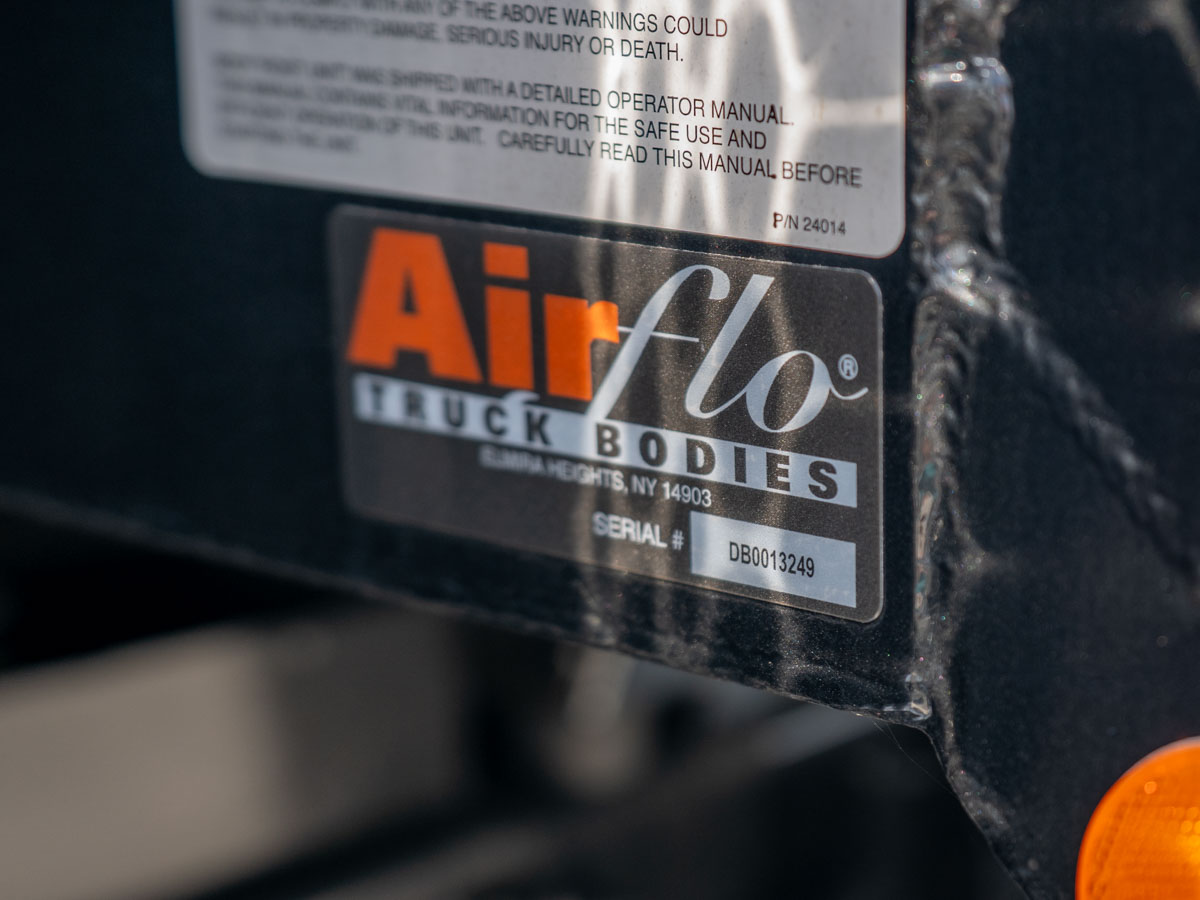

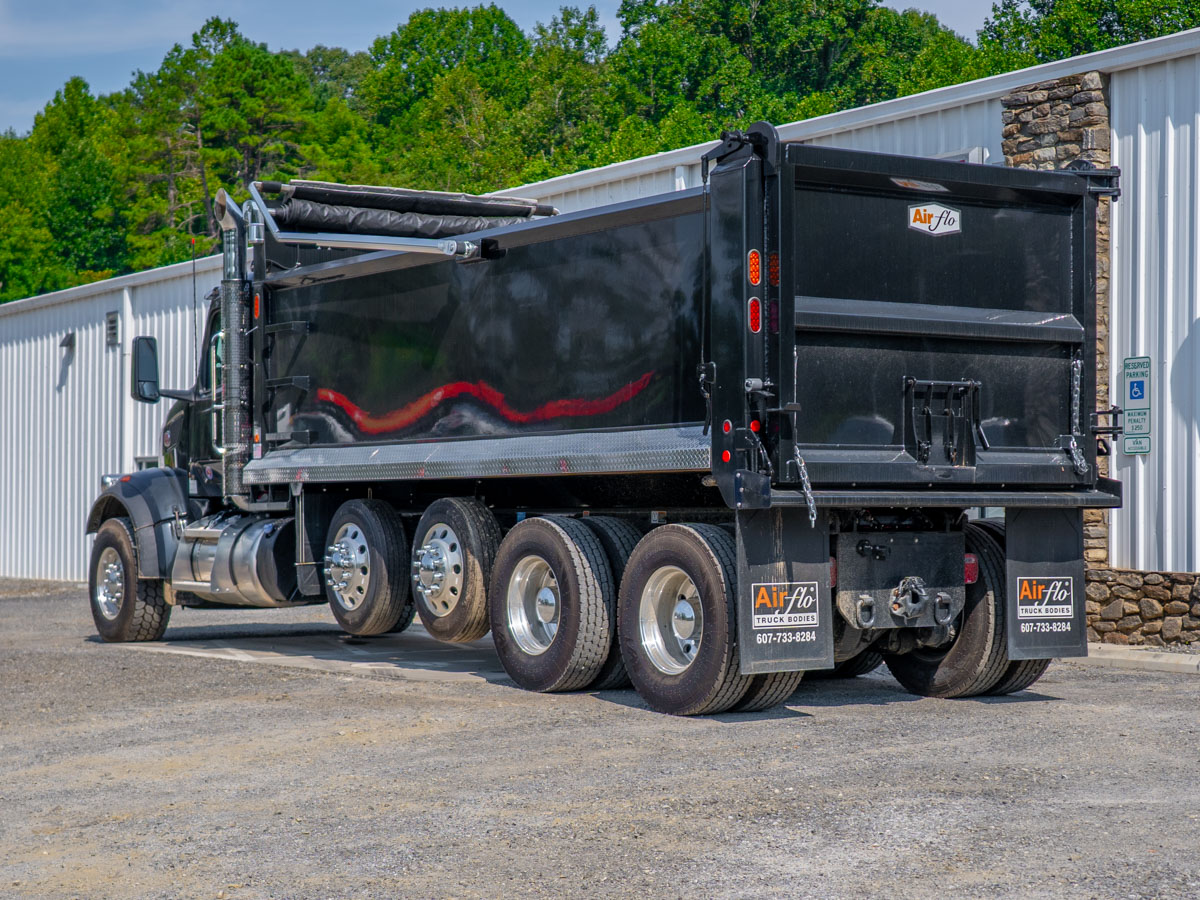

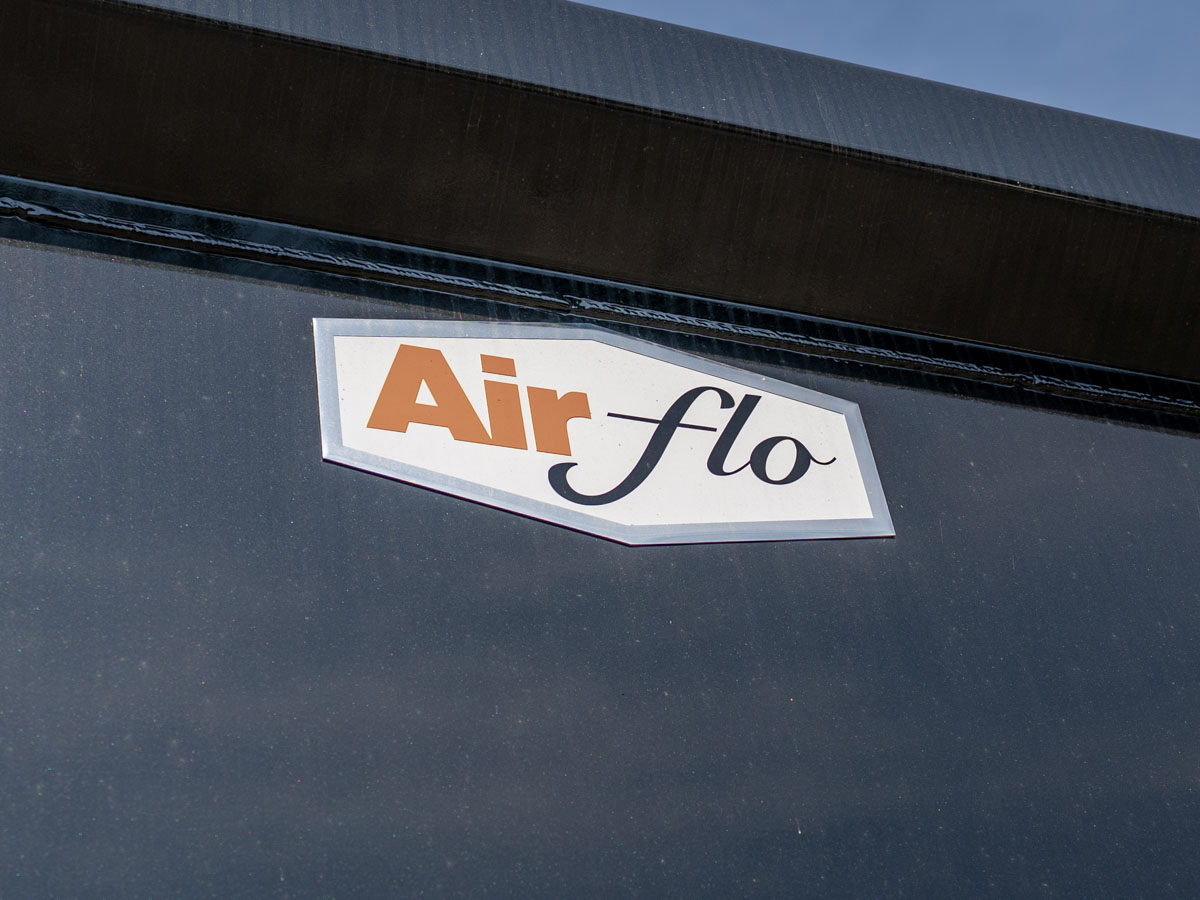

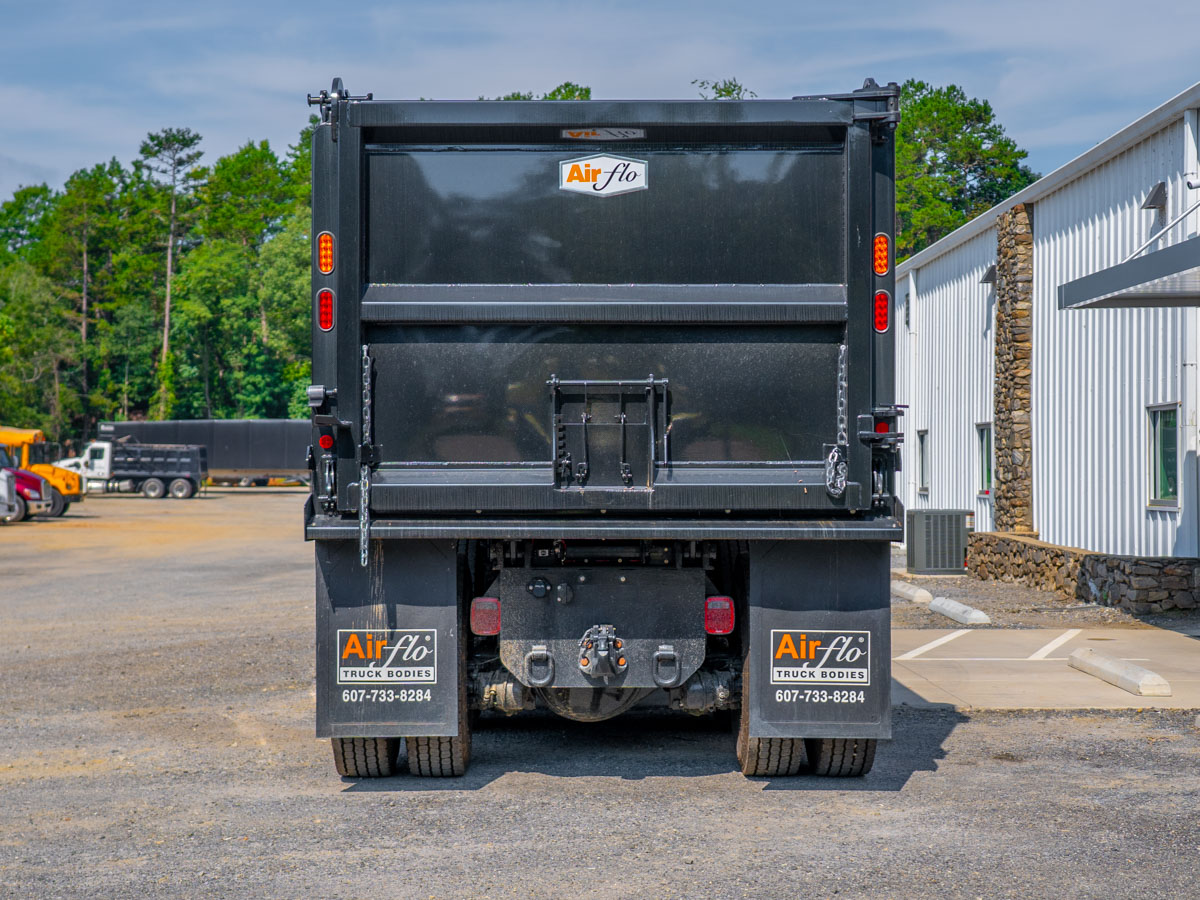

The truck is fitted with a new Air-Flo tri-axle end dump body, model XHC-2060D-3XRN, measuring 20' (240") in length and 162" in height, built with all 1/4" thick construction, a 60SH DST rating, a 66TG barn door, and a trunnion hoist. The body includes a dirt-shedding top rail with no side boards, a tri-axle 2-panel tailgate, a 3-way barn door kit, a complete coal door assembly, a bolt-on spreader apron at 8" x 13-degrees, and an Allison transmission kit sized for the tri-axle body. Additional equipment includes an 18" narrow cabshield with a slim front reservoir kit and two oval front-mounted lights, a 54" side-height outer ladder and three inner ladders (all weld-on), a fabricated weld-on shovel holder, an 18' Donovan tarp system with a high mount, and a provision to mount and connect a customer-supplied camera. The body also carries a 50-ton rigid tow package, a corner post strobe light kit, a cab strobe light kit, a pair of strobes on the cabshield front and a second pair on the front corner post, two custom front corner posts (oval top, DST, 60T), and five 17' aluminum diamond plate lower rub rail covers finished in polished aluminum. The body is finished in a Black Pearl Effect top coat.

Tires & Wheels

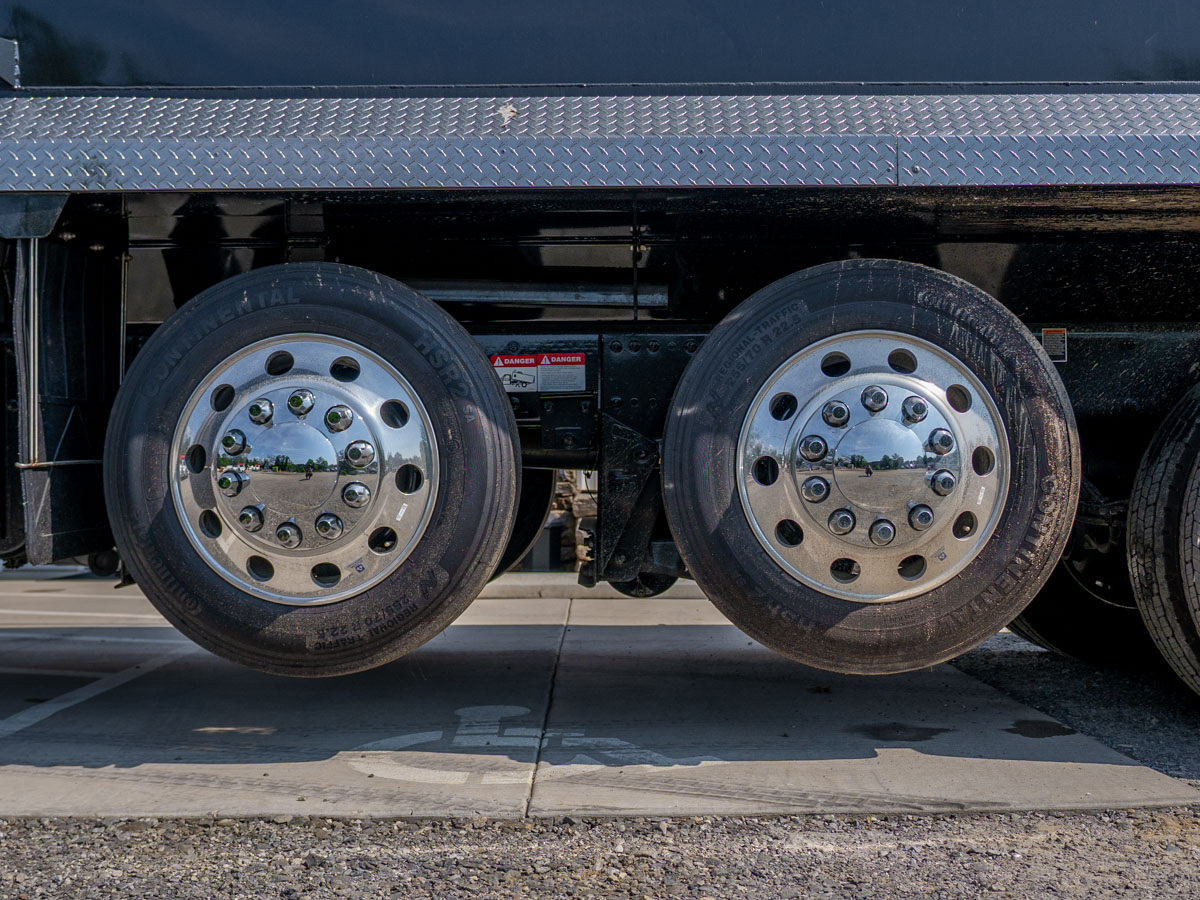

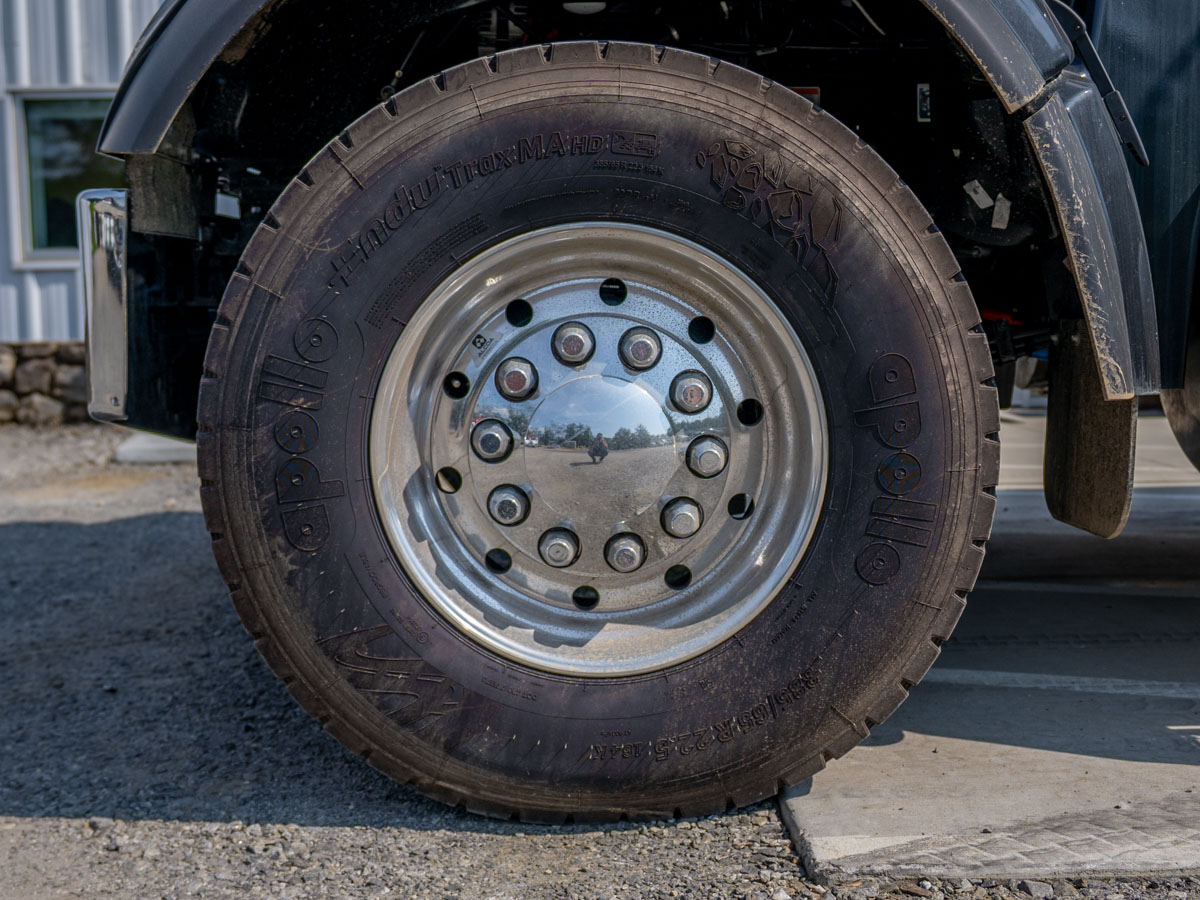

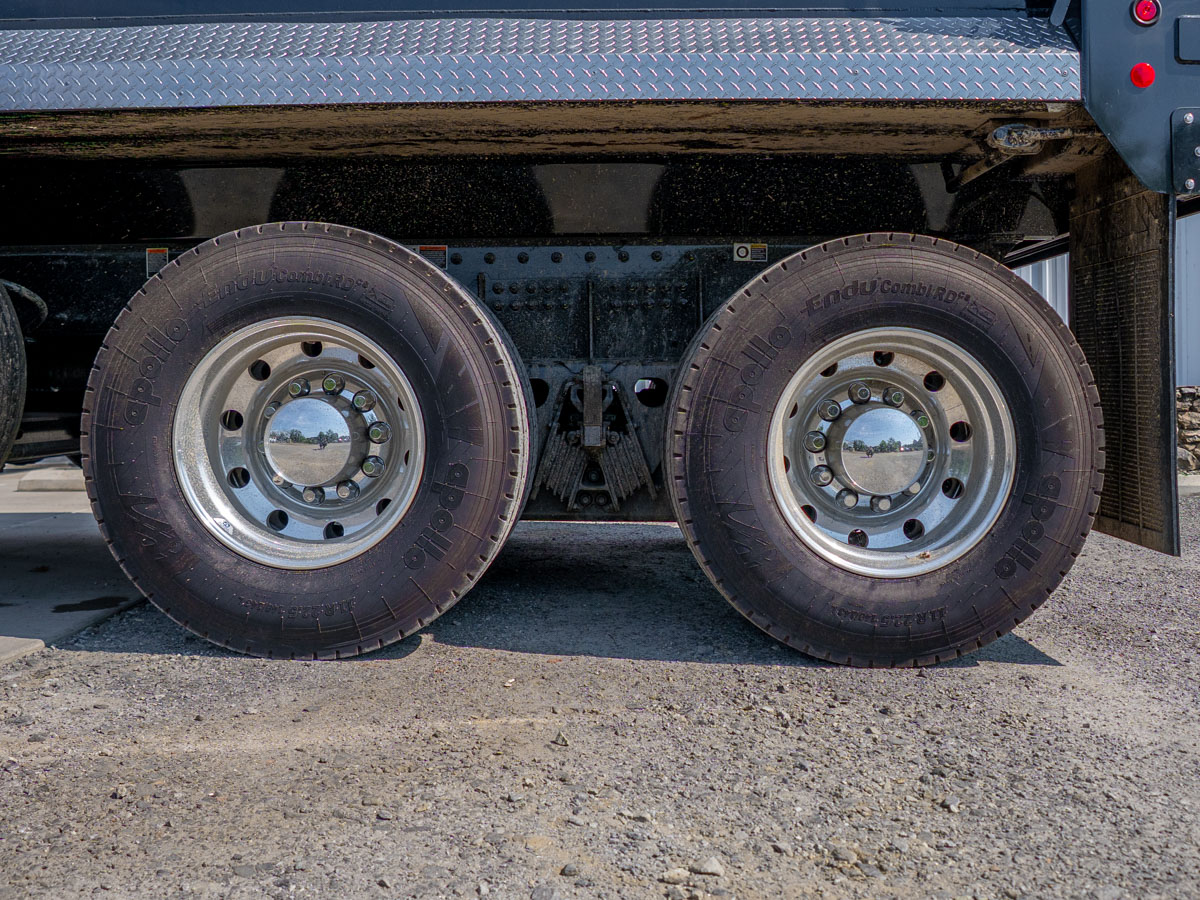

The front axle rides on AP 22-ply 385/65R22.5 EnduTrax MA HD tires mounted on Alcoa 22.5x12.25 high polish aluminum wheels with a 2.75" inset and Dura-Bright finish on the outer surface. The rear drive axle rides on AP 16-ply 11R22.5 EnduCombi RDCS tires mounted on Alcoa 22.5x8.25 high polish aluminum severe service wheels. The self-steering pusher axles ride on four CN 16-ply 255/70R22.5 HSR2 SA tires. All wheel positions carry a mirror polish finish on the outer surface.

Warranty & Protection

This new truck is backed by Peterbilt's Class 8 Standard Coverage of 1 year/100,000 miles (160,000 km), PACCAR's MX Standard Coverage of 2 years/250,000 miles (400,000 km)/6,250 hours, and an EPA Emissions Base Warranty of 5 years/100,000 miles on the EPA engine.

One note: the chassis final bill's body specs (240" length, 162" height, 7,500-lb max laden weight) match the Air-Flo invoice's 20' body — no conflicts between the two documents.
